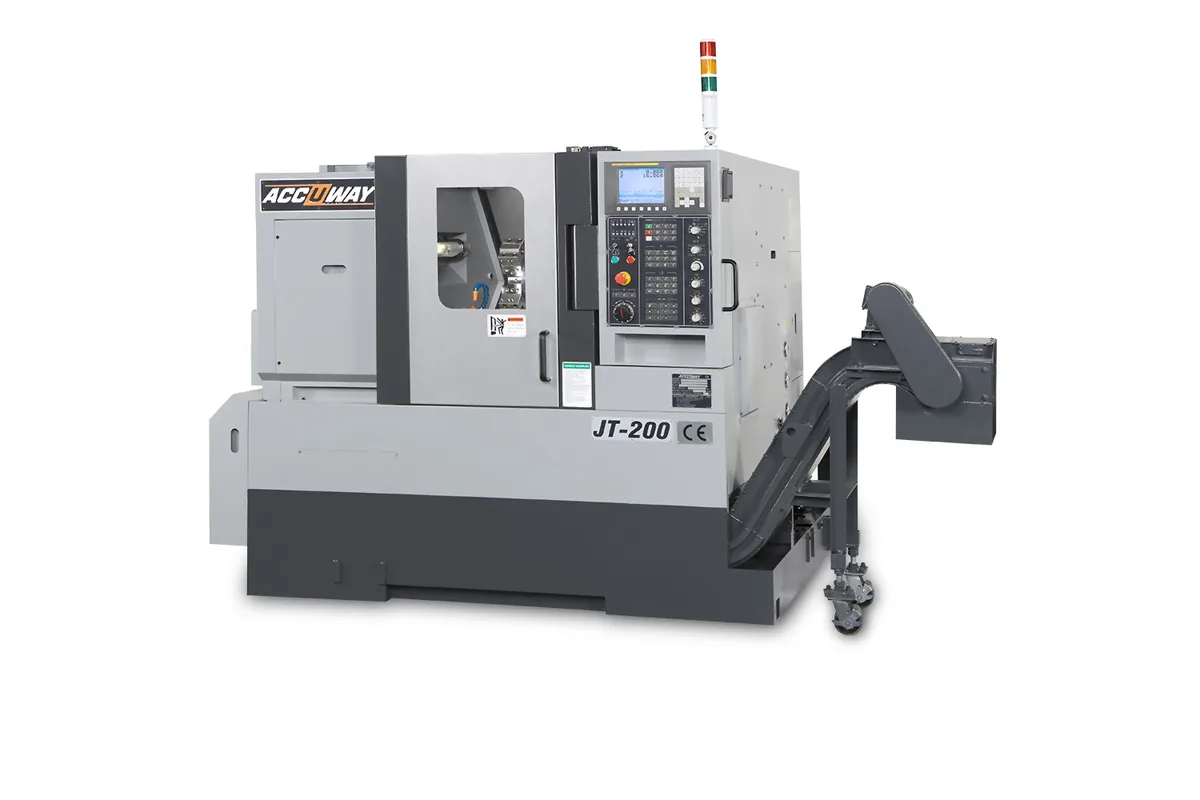

Accuway JT-200M
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway JT-200M cost?
Price estimate
We do not have a price for the Accuway JT-200M that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway JT-200M is the longest of the JT linear-way lathes and the only one of the four that combines 600 mm (23.6 in) of Z travel with rotary tools. It turns 230 mm (9.1 in) in diameter and 450 mm (17.7 in) in length.
Where does it fit? Against the JT-150M it adds length: the same turret and spindle on a bed that takes shafts, with a tailstock whose body moves 450 mm (17.7 in). Against the UL-20M, Accuway's box-way live-tool lathe of similar length, it trades mass for speed. The UL-20M weighs 3,500 kg (7,716 lb) and rapids at 20 m/min (787 in/min); the JT-200M weighs 3,300 kg (7,275 lb) and rapids at 30 m/min (1,181 in/min).
The turret has 12 stations with BMT/VDI tooling and servo mechanical drive. Rotary tools reach 6,000 rpm on a 3.7/5.5 kW (5.0/7.4 hp) motor, enough for drilling, tapping and light milling of keyways and flats. There is no Y axis.
Three spindle columns are listed on an 11/15 kW (14.8/20.1 hp) motor. The A2-5 nose takes a 6 in chuck and a 44 mm (1.7 in) bar at 6,000 rpm. The A2-6 nose takes an 8 in chuck with 52 mm (2.0 in) at 4,500 rpm or 65 mm (2.6 in) at 4,000 rpm. Square shanks are 20 mm (0.8 in). The enclosure is 2.6 x 1.7 x 1.9 m (102.4 x 66.9 x 74.8 in). The 0 degree and 90 degree rotary tool holders marked for the JT-200M are optional accessories.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 505 mm (19.9 in) |
| Swing Over Saddle | 318 mm (12.5 in) |
| Max Turning Diameter | 230 mm (9.1 in) |
| Max Turning Length | 450 mm (17.7 in) |
| Guideway Type | Linear |
| Spindle Nose | A2-5 / A2-6 / A2-6 |
| Chuck Size | 6 / 8 / 8 in |
| Bar Capacity | 44 / 52 / 65 mm (1.7 / 2.0 / 2.6 in) |
| Max Spindle Speed | 6,000 / 4,500 / 4,000 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| X Axis Travel | 195 mm (7.7 in) |
| Z Axis Travel | 600 mm (23.6 in) |
| Rapid Traverse X | 30 m/min (1,181 in/min) |
| Rapid Traverse Z | 30 m/min (1,181 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 450 mm (17.7 in) |
| Tailstock Quill Travel | 150 mm (5.9 in) |
| Tailstock Quill Diameter | 70 mm (2.8 in) |
| Tailstock Quill Taper | MT#4 |
| Machine Dimensions | L x W x H: 2.6 x 1.7 x 1.9 m (102.4 x 66.9 x 74.8 in) |
| Machine Weight | 3,300 kg (7,275 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Rotary tools at 6,000 rpm on a 600 mm (23.6 in) Z travel
- Rapid traverse of 30 m/min (1,181 in/min) in both axes
- 450 mm (17.7 in) turning length with tailstock
- 230 mm (9.1 in) turning diameter
- BMT/VDI 12-station turret
Limitations
- No Y axis for off-centre milling
- Spindle options end at A2-6 and 65 mm (2.6 in)
- Linear ways and 3,300 kg (7,275 lb): not a heavy rougher
- Rotary tool holders are optional
Best For
Frequently Asked Questions
01
Turning diameter 230 mm (9.1 in), turning length 450 mm (17.7 in), X travel 195 mm (7.7 in), Z travel 600 mm (23.6 in), rapids 30 m/min (1,181 in/min), rotary tools 6,000 rpm, weight 3,300 kg (7,275 lb).
02
The JT-200 has a BOT turret and no rotary tools, and turns 300 mm (11.8 in) by 560 mm (22.0 in). The JT-200M has a BMT/VDI turret with rotary tools at 6,000 rpm and turns 230 mm (9.1 in) by 450 mm (17.7 in).
03
Body travel 450 mm (17.7 in), quill travel 150 mm (5.9 in), quill diameter 70 mm (2.8 in), quill taper MT#4. It supports shafts while the rotary tools cut.
04
A FANUC 0i-T controller with a 10.4" Colored LCD monitor, rigid tapping, RJ-45 interface, heat exchanger for the electric cabinet, 4-bar coolant system, lubrication system and three-color warning light are the standard accessories.
