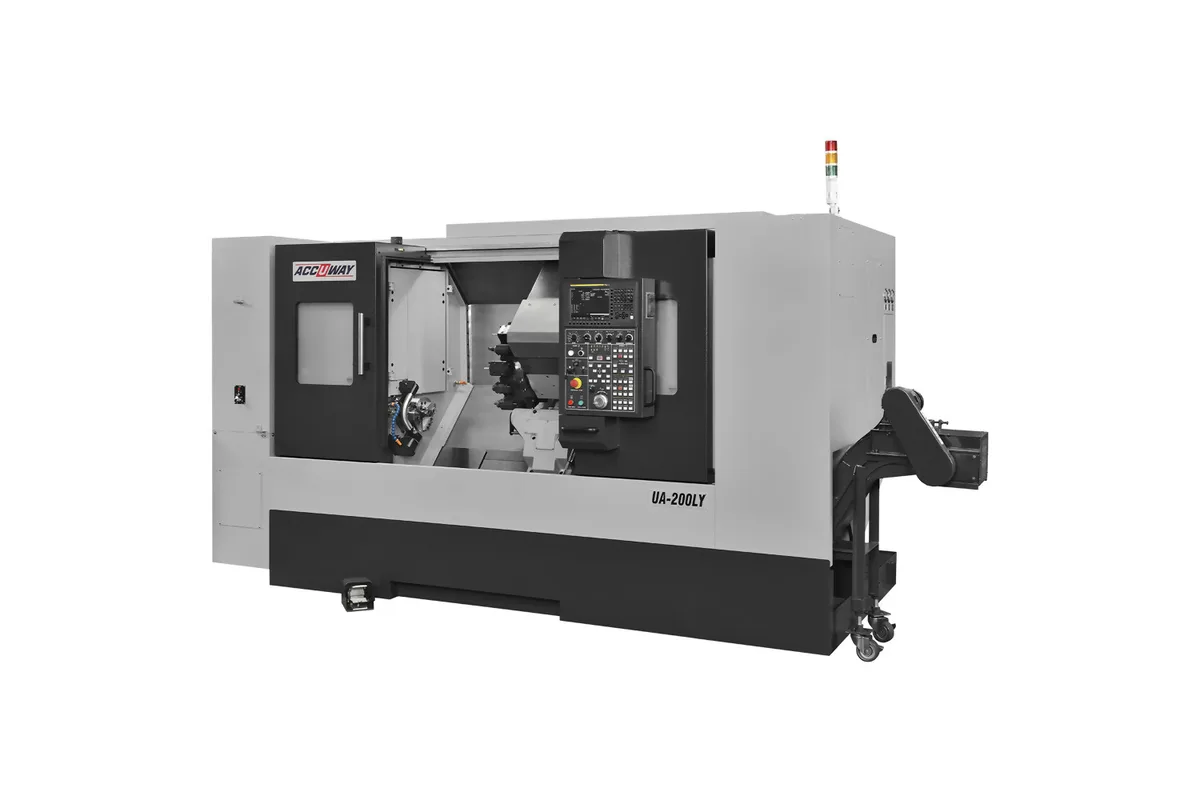

Accuway UA-200LY
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UA-200LY cost?
Price estimate
We do not have a price for the Accuway UA-200LY that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UA-200LY is a long-bed, Y-axis turning center with one fixed spindle configuration. Where the other UT-200 and UA-200 pages print four spindle columns, this table has a single one: an A2-6 nose, an 8 in chuck, 52 mm (2.0 in) of bar capacity, 4,500 rpm and an 11/15 kW (14.8/20.1 hp) motor.
Z-axis travel is 1,000 mm (39.4 in) and maximum turning length 850 mm (33.5 in). The envelope is long and slim. Maximum turning diameter is 155 mm (6.1 in) and X-axis travel only 150 mm (5.9 in), so the work is shafts and bar parts, with a tailstock listed for support. One figure should be checked with Accuway: the tailstock body travel is printed as 545 mm (21.5 in), the short-bed value, on a machine with a metre of Z.
Milling is by rotary tools at up to 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp), with ±50 mm (±2.0 in) of Y travel at 10 m/min (394 in/min). The turret has 12 stations for 20 mm (0.8 in) square and 32 mm (1.3 in) round shanks. The page prints BMT-55N in the turret driven type row and has no tooling system row, so the turret type is left out of the specification list here.
The machine is 3.7 m long, 2.2 m high and weighs 5,500 kg (12,125 lb), the heaviest of the 200-size models. Guideways are box type and the control is a FANUC 0i-T.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 680 mm (26.8 in) |
| Swing Over Saddle | 485 mm (19.1 in) |
| Max Turning Diameter | 155 mm (6.1 in) |
| Max Turning Length | 850 mm (33.5 in) |
| Guideway Type | Box |
| Spindle Nose | A2-6 |
| Chuck Size | 8 in |
| Bar Capacity | 52 mm (2.0 in) |
| Max Spindle Speed | 4,500 rpm |
| Spindle Motor Power | Cont. / 30min: 11/15 kW (14.8/20.1 hp) |
| X Axis Travel | 150 mm (5.9 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | ±50 mm (±2.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 20 m/min (787 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Turret Stations | 12 |
| Square Tool Shank | 20 mm (0.8 in) |
| Round Tool Shank | 32 mm (1.3 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 545 mm (21.5 in) |
| Tailstock Quill Travel | 80 mm (3.1 in) |
| Tailstock Quill Diameter | 75 mm (3.0 in) |
| Tailstock Quill Taper | MT#4 |
| Machine Dimensions | L x W x H: 3.7 x 1.6 x 2.2 m (145.7 x 63.0 x 86.6 in) |
| Machine Weight | 5,500 kg (12,125 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,000 mm (39.4 in) of Z travel and 850 mm (33.5 in) turning length with a Y axis
- Rotary tools at 6,000 rpm and ±50 mm (±2.0 in) of Y travel
- A2-6 spindle with an 8 in chuck and 52 mm (2.0 in) bar capacity
- Box guideways on a 5,500 kg (12,125 lb) machine
Limitations
- Maximum turning diameter is 155 mm (6.1 in)
- X-axis travel is 150 mm (5.9 in)
- Only one spindle configuration is listed
- Tailstock body travel is printed as 545 mm (21.5 in) on a 1,000 mm bed
Best For
Frequently Asked Questions
01
X-axis travel is 150 mm (5.9 in), Z-axis travel 1,000 mm (39.4 in) and Y-axis travel ±50 mm (±2.0 in). Rapid traverse is 20 m/min (787 in/min) in X and Z and 10 m/min (394 in/min) in Y.
02
An A2-6 spindle nose with an 8 in chuck, 52 mm (2.0 in) bar capacity and a top speed of 4,500 rpm. Motor power is 11/15 kW (14.8/20.1 hp), continuous and 30 min. Only this one configuration is printed for the model.
03
The UA-200Y has 600 mm (23.6 in) of Z travel, 220 mm (8.7 in) of X travel, a 15-station turret and four spindle choices. The UA-200LY has 1,000 mm of Z, 150 mm of X, 12 stations and one spindle. Both list a 155 mm (6.1 in) maximum turning diameter.
04
A 12-station turret with 20 mm (0.8 in) square and 32 mm (1.3 in) round tool shanks and rotary tools at 6,000 rpm. On Accuway's page the value BMT-55N appears in the turret driven type row and there is no tooling system row, so confirm the turret type with the maker.
