DN Solutions PUMA GT 2600 XLMA

Est. $130,000 - $170,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

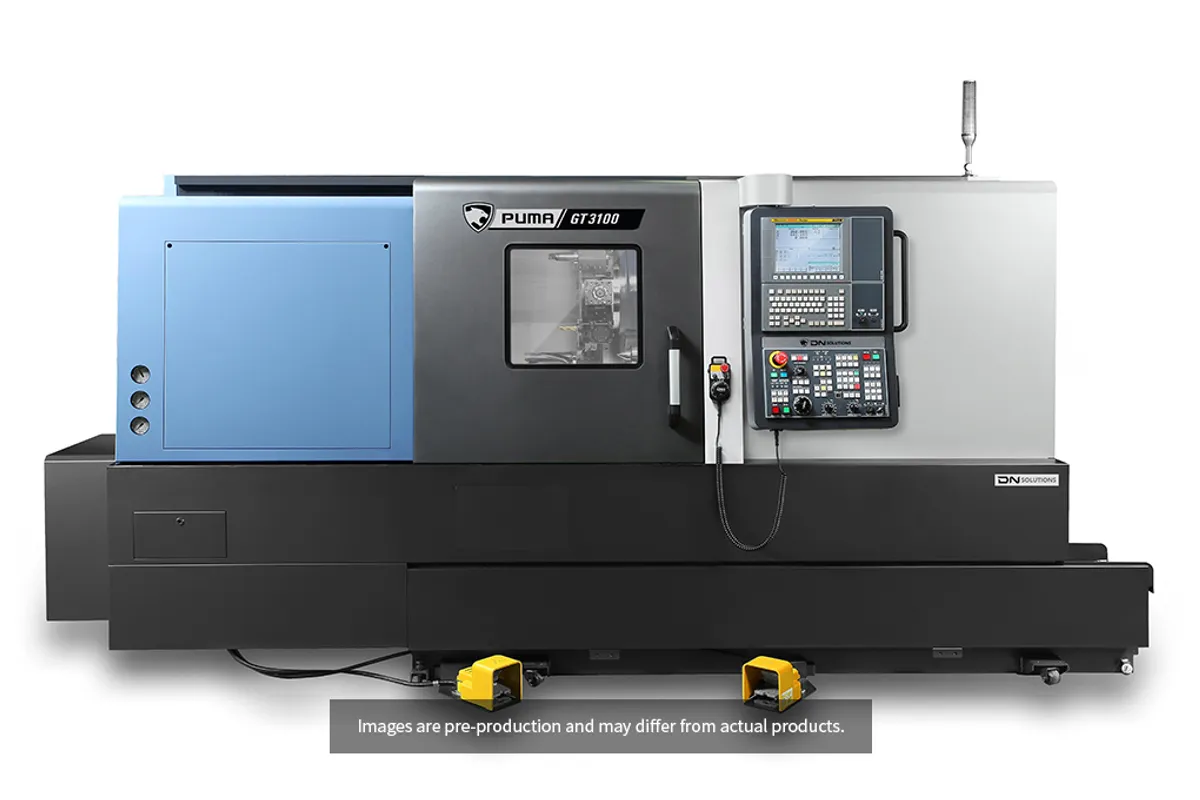

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

265 mm (10 in)

Z Travel

1,625 mm (64 in)

Max Spindle

3,500 rpm

Spindle Power

26 kW (35 hp)

Max Turn Length

1,555 mm (61 in)

chuck size

10 in

How much does the DN Solutions PUMA GT 2600 XLMA cost?

Estimated price range

Est.$130,000 - $170,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions PUMA GT 2600 XLMA puts 5,000 rpm live tooling on a long-bed lathe with a 10 in chuck, so keyways, cross holes and wrench flats on a shaft up to 1,555 mm (61 in) long can be cut in the same setup as the turning. The main spindle runs to 3,500 rpm with 26 kW (35 hp) and 735 N·m (542 ft-lb).

The driven turret takes space from the work envelope. The two-axis PUMA GT 2600 XLA shares this chuck size, top speed and power rating, and it turns 460 mm (18 in) in diameter and 1,603 mm (63 in) in length. This machine turns 410 mm (16 in) and 1,555 mm (61 in). Z travel is 1,625 mm (64 in) on both. What the turret gives back is positions: 12 stations against 10 on the PUMA GT 2600 XLA, which counts on a turn-mill job because drills and end mills compete with the turning tools for places.

Read the milling capability narrowly. The table lists X and Z travel and no Y travel, so the live tools work on or through the spindle centreline: radial and axial holes, slots as wide as the cutter, tapped holes. Off-centre pockets and wide flats with a square floor are what a Y-axis is for, and none is listed here. The table also gives the live-tool speed without a power or torque figure. Ask for both before planning anything heavier than drilling, tapping and light slotting.

For a part that needs torque more than speed, the PUMA GT 2600 XLMB carries a 12 in chuck with 992 N·m (732 ft-lb) and a 2,500 rpm limit, and its turning length drops to 1,525 mm (60 in).

Rapids are 24 m/min (945 ipm) on X and 30 m/min (1,181 ipm) on Z, with 265 mm (10 in) of X travel. The machine weighs 5,950 kg (13,118 lb) and measures 4,855 × 2,198 × 2,030 mm (191 × 87 × 80 in), length by width by height.

Full Specifications

Parameter	Value
Chuck Size	10 in
Max Turning Diameter	410 mm (16 in)
Max Turning Length	1,555 mm (61 in)
Rapid Traverse X	24 m/min (945 ipm)
Rapid Traverse Z	30 m/min (1,181 ipm)
X-Axis Travel	265 mm (10 in)
Z-Axis Travel	1,625 mm (64 in)
Max Spindle Speed	3,500 rpm
Spindle Motor Power	26 kW (35 hp)
Spindle Torque	735 N·m (542 ft-lb)
Turret Stations	12
Live Tool Speed	5,000 rpm
Floor Space Required	4,855 × 2,198 × 2,030 mm (191 × 87 × 80 in)
Machine Weight	5,950 kg (13,118 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

Live tools at 5,000 rpm on a 12-station turret, on a bed with 1,625 mm (64 in) of Z travel
3,500 rpm main spindle with 26 kW (35 hp) and 735 N·m (542 ft-lb), suited to shafts of small and medium diameter
Turning length of 1,555 mm (61 in), more than the 1,525 mm (60 in) of the PUMA GT 2600 XLMB
12 turret stations, where the two-axis PUMA GT 2600 XLA has 10
Z rapid of 30 m/min (1,181 ipm) shortens long repositioning moves between features

Limitations

Maximum turning diameter is 410 mm (16 in), against 460 mm (18 in) on the PUMA GT 2600 XLA
No Y travel is listed, so milling is limited to features on the spindle centreline
The table gives live-tool speed only, with no live-tool power or torque
735 N·m (542 ft-lb) is well below the 992 N·m (732 ft-lb) of the PUMA GT 2600 XLMB for heavy roughing

Best For

Shafts up to 1,555 mm (61 in) long that need keyways or cross holes Turned parts with drilled and tapped features finished in one setup Small and medium diameters that use the 3,500 rpm spindle Turn-mill jobs that fit 12 stations shared by fixed and driven tools

Frequently Asked Questions

01 What do the live tools on the PUMA GT 2600 XLMA allow?

They run to 5,000 rpm on a 12-station turret. With X and Z travel and no Y travel in the table, that covers drilling and tapping along or across the centreline and slots the width of the cutter. The table gives no live-tool power or torque, so confirm those figures before sizing end mills or large drills.

02 Does the PUMA GT 2600 XLMA have a Y-axis?

No Y travel appears in its table. The listed travels are 265 mm (10 in) in X and 1,625 mm (64 in) in Z. Parts that need off-centre milling should be checked against a machine whose table lists Y travel.

03 How does the PUMA GT 2600 XLMA compare with the PUMA GT 2600 XLA?

Both have a 10 in chuck, 3,500 rpm, 26 kW (35 hp) and 1,625 mm (64 in) of Z travel. The PUMA GT 2600 XLMA adds 5,000 rpm live tools and has 12 stations, with a 410 mm (16 in) turning diameter and 1,555 mm (61 in) turning length. The PUMA GT 2600 XLA has no live-tool row and 10 stations, and turns 460 mm (18 in) and 1,603 mm (63 in).

04 Should I choose the PUMA GT 2600 XLMA or the PUMA GT 2600 XLMB?

Decide on diameter and material. The PUMA GT 2600 XLMA has a 10 in chuck, 3,500 rpm and 735 N·m (542 ft-lb). The PUMA GT 2600 XLMB has a 12 in chuck, 2,500 rpm and 992 N·m (732 ft-lb), with 1,525 mm (60 in) of turning length. Both list 26 kW (35 hp), a 410 mm (16 in) turning diameter and 5,000 rpm live tools.

05 What does the PUMA GT 2600 XLMA weigh and how long is it?

Machine weight is 5,950 kg (13,118 lb). It is 4,855 mm (191 in) long, 2,198 mm (87 in) wide and 2,030 mm (80 in) high. Plan the layout so that a shaft of up to 1,555 mm (61 in) can be brought to the chuck with lifting gear.
