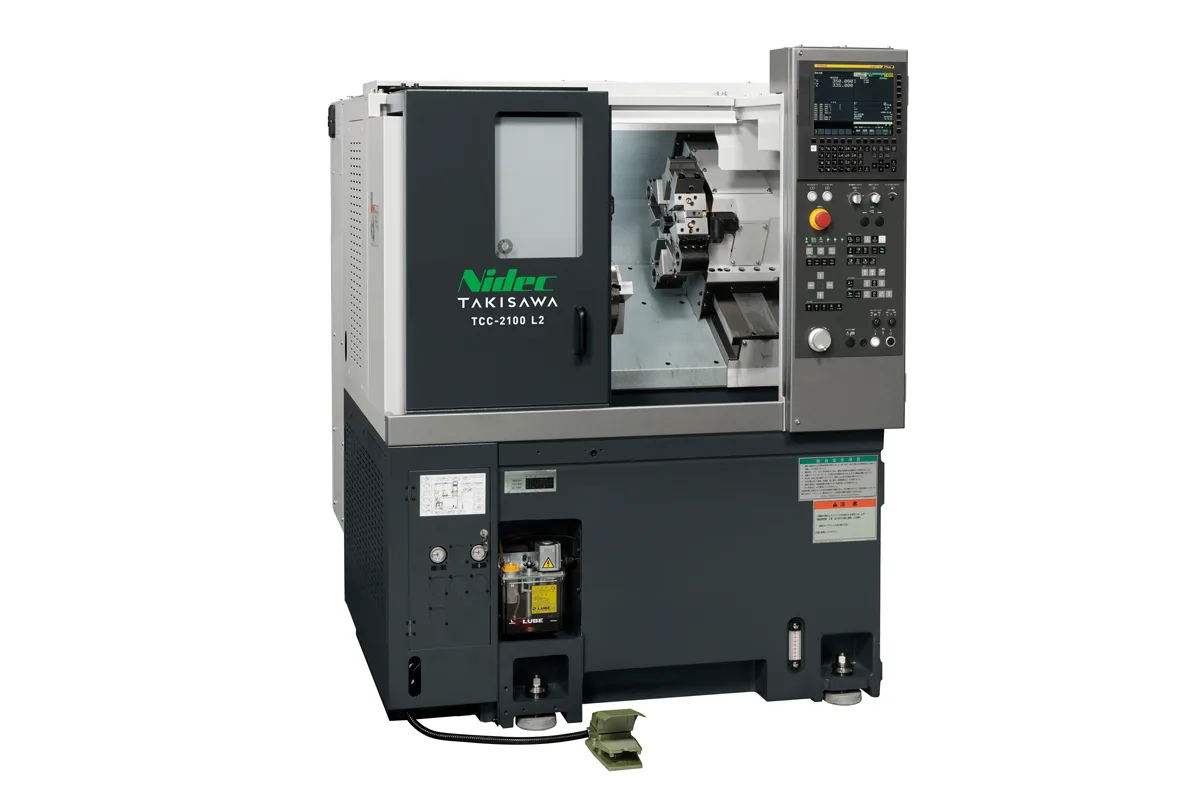

Takisawa TCC-2100

Specs verified 2026-10-03 · takisawa.co.jp Updated 2026-10-03

Image: takisawa.co.jp, Takisawa

Key Specifications

Max Spindle

3,200 rpm (options: 2,500 / 4,100 / 5,000 / 6,000 rpm)

Rapid Traverse

X 24 / Z 30 m/min (945 / 1,181 in/min)

Spindle Power

11 / 7.5 kW (14.8 / 10.1 hp), 15/30-min / continuous

Max Turn Length

L2: 189 / 191 mm (7.4 / 7.5 in) (8- / 12-station); L3: 289 / 291 mm (11.4 / 11.5 in) (8- / 12-station)

chuck size

8 in (203 mm)

bed lengths

TCC-2100L2 and TCC-2100L3

How much does the Takisawa TCC-2100 cost?

Price estimate

Uncertain

We do not have a price for the Takisawa TCC-2100 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Takisawa TCC-2100 is an 8 in (203 mm) chuck CNC lathe sold on two bed lengths, the TCC-2100L2 and the TCC-2100L3, with an 11 kW (14.8 hp) spindle motor and up to 350 mm (13.8 in) of turning diameter. Most of the buying decision comes down to which bed and which spindle to order, because both change what fits in the machine.

Bed first. With the 8-station turret the maximum turning length is 189 mm (7.4 in) on the L2 and 289 mm (11.4 in) on the L3; the 12-station turret gives 191 mm (7.5 in) and 291 mm (11.5 in). The longer bed takes 1,420 × 1,525 mm (55.9 × 60.0 in) of floor against 1,320 × 1,495 mm (52.0 × 58.9 in), and weight rises from 2,400 kg (5,291 lb) to 2,530 kg (5,578 lb). Height is 1,700 mm (66.9 in) either way.

Then the spindle. The standard one runs to 3,200 rpm, and Takisawa lists four alternatives: 2,500, 4,100, 5,000 and 6,000 rpm. The two fastest carry a penalty the table spells out. Bar capacity falls from 51 mm (2.0 in) to 42 mm (1.7 in), and the maximum turning diameter is reduced as well, though the table does not say by how much. Anyone ordering a high-speed spindle for small parts should ask for that reduced diameter before signing. Motor power is 11 kW on the short-time rating, listed as 15/30-min, and 7.5 kW (10.1 hp) continuous.

The direct-mount turret has 8 or 12 stations. Twelve stations bring the maximum turning diameter down from 350 mm to 320 mm (12.6 in). That is a far smaller penalty than on the TCC-1100, where the same choice takes 220 mm (8.7 in) down to 170 mm (6.7 in).

Rapids are X 24 / Z 30 m/min (945 / 1,181 in/min), and a hydraulic tailstock is optional. The TCC-2100G version adds a gantry loader for workpieces up to φ160 × 100 mm and 3 kg, a figure the table marks ×2, working from a 16-pallet stocker that holds 40 kg per pallet at a 450 mm stacking height.

Full Specifications

Parameter	Value
Chuck Size	8 in (203 mm)
Bed Lengths	TCC-2100L2 and TCC-2100L3
Turret Stations	8 or 12 stations (direct-mount turret)
Max Turning Diameter	350 mm (13.8 in) with 8-station turret; 320 mm (12.6 in) with 12-station turret (reduced with the 5,000/6,000 rpm spindle)
Max Turning Length	L2: 189 / 191 mm (7.4 / 7.5 in) (8- / 12-station); L3: 289 / 291 mm (11.4 / 11.5 in) (8- / 12-station)
Bar Capacity	51 mm (2.0 in); 42 mm (1.7 in) with the 5,000/6,000 rpm spindle (depends on chuck and cylinder)
Max Spindle Speed	3,200 rpm (options: 2,500 / 4,100 / 5,000 / 6,000 rpm)
Spindle Motor Power	11 / 7.5 kW (14.8 / 10.1 hp), 15/30-min / continuous
Rapid Traverse Rate	X 24 / Z 30 m/min (945 / 1,181 in/min)
Tailstock	Hydraulic tailstock (optional)
Machine Dimensions	L2: 1,320 × 1,495 mm (52.0 × 58.9 in); L3: 1,420 × 1,525 mm (55.9 × 60.0 in); height 1,700 mm (66.9 in)
Machine Weight	L2: 2,400 kg (5,291 lb); L3: 2,530 kg (5,578 lb)
Automation Version	TCC-2100G gantry loader: workpiece up to φ160 × 100 mm, 3 kg (×2); 16-pallet stocker, 40 kg per pallet, 450 mm stacking height

Specifications sourced from takisawa.co.jp — verified 2026-10-03

Strengths & Limitations

Strengths

Two bed lengths: 189 mm (7.4 in) of turning length on the L2 and 289 mm (11.4 in) on the L3 with the 8-station turret
Five spindle speed choices, from 2,500 rpm to 6,000 rpm, around the standard 3,200 rpm
11 / 7.5 kW (14.8 / 10.1 hp) motor, twice the short-time power of the TCC-1100's standard 5.5 kW (7.4 hp)
The 12-station turret still turns 320 mm (12.6 in), against 350 mm (13.8 in) with 8 stations
TCC-2100G gantry loader with a 16-pallet stocker rated at 40 kg per pallet

Limitations

The 5,000 and 6,000 rpm spindles cut bar capacity from 51 mm (2.0 in) to 42 mm (1.7 in) and reduce turning diameter by an amount the table does not state
Even the L3 bed stops at 289 / 291 mm (11.4 / 11.5 in) of turning length, so shaft work needs a longer machine such as the TCN-2100 at 600 mm (23.6 in) on its L6 bed
Hydraulic tailstock is an option, not part of the base machine
The gantry loader is limited to 3 kg workpieces of φ160 × 100 mm

Best For

Chucking parts up to 350 mm (13.8 in) in diameter on an 8-station turret Short parts within 289 mm (11.4 in) of turning length on the L3 bed Small-diameter bar work with the 5,000 or 6,000 rpm spindle and 42 mm (1.7 in) bar capacity Loader-fed production of parts up to 3 kg on the TCC-2100G

Frequently Asked Questions

01 What is the difference between the TCC-2100L2 and the TCC-2100L3?

Bed length. With the 8-station turret the L2 turns 189 mm (7.4 in) and the L3 turns 289 mm (11.4 in); with the 12-station turret the figures are 191 mm (7.5 in) and 291 mm (11.5 in). The L3 occupies 1,420 × 1,525 mm (55.9 × 60.0 in) and weighs 2,530 kg (5,578 lb). The L2 occupies 1,320 × 1,495 mm (52.0 × 58.9 in) and weighs 2,400 kg (5,291 lb).

02 Which spindle speeds can the TCC-2100 be ordered with?

3,200 rpm is standard. The options are 2,500 rpm, 4,100 rpm, 5,000 rpm and 6,000 rpm. With the 5,000 or 6,000 rpm spindle, bar capacity is 42 mm (1.7 in) instead of 51 mm (2.0 in), and the table notes that the maximum turning diameter is reduced too. The motor is 11 / 7.5 kW (14.8 / 10.1 hp) on the listed ratings.

03 How much turning diameter does the 12-station turret give up?

The maximum turning diameter is 350 mm (13.8 in) with the 8-station turret and 320 mm (12.6 in) with the 12-station turret. Both are direct-mount turrets. Turning length is almost unchanged by the choice: 189 against 191 mm on the L2 and 289 against 291 mm on the L3.

04 How does the TCC-2100 compare with the TCN-2100?

Both take an 8 in (203 mm) chuck and share rapids of X 24 / Z 30 m/min (945 / 1,181 in/min). The TCN-2100 is the longer and heavier machine, with turning lengths of 300 mm (11.8 in) on its L3 bed and 600 mm (23.6 in) on its L6, and 410 mm (16.1 in) of turning diameter with an 8-station turret. The TCC-2100 tops out at 289 / 291 mm and 350 mm (13.8 in), and weighs 2,400 to 2,530 kg where the TCN-2100 starts at 2,700 kg (5,952 lb).

05 What does the TCC-2100G loader version include?

A gantry loader and a work stocker. The loader is listed for workpieces up to φ160 × 100 mm and 3 kg, marked ×2 in the table. The stocker has 16 pallets, each rated at 40 kg, with a 450 mm stacking height. Parts heavier than 3 kg need manual loading or another form of automation.
