Accuway UT-200Y

Q: How much does the Accuway UT-200Y cost?

The price estimate for the Accuway UT-200Y is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-200y#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

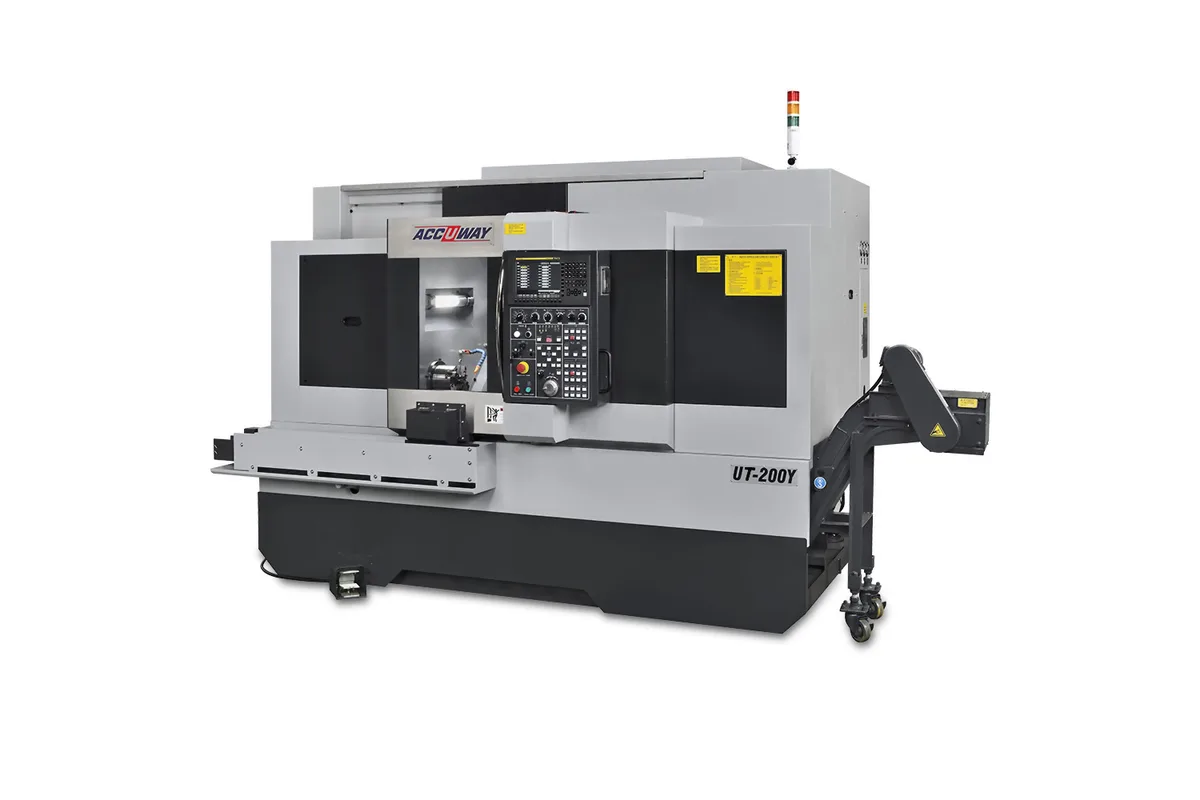

Accuway UT-200Y / UA-200Y slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 / 4,500 / 4,000 / 3,500 rpm

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

Max Turn Length

440 / 440 / 440 / 365 mm (17.3 / 17.3 / 17.3 / 14.4 in)

control

FANUC 0i-T

swing over bed

680 mm (26.8 in)

swing over saddle

485 mm (19.1 in)

How much does the Accuway UT-200Y cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-200Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A Y axis and a tailstock together: that is the Accuway UT-200Y. It keeps the single spindle and centre support of the UT-200M and adds ±50 mm (±2.0 in) of Y travel under a 12-station BMT/VDI turret with rotary tools at 6,000 rpm.

The combination matters for shaft-type parts with off-centre features. A keyway that must be cut to width with an end mill, a flat at a set distance from the axis or a row of offset holes all need Y, and a part long enough to need a centre cannot go on the two-spindle UT-200SY, which has no tailstock. Here the tailstock body travels 545 mm (21.5 in) with an MT#4 quill.

Maximum turning diameter is 240 mm (9.4 in) and turning length 440 mm (17.3 in), or 365 mm (14.4 in) with the largest spindle. Swing over bed is 680 mm (26.8 in), reflecting the wider bed that carries the Y slide. Travels are 220 mm (8.7 in) in X and 600 mm (23.6 in) in Z at 20 m/min (787 in/min), with Y at 10 m/min (394 in/min).

The four spindle columns run from A2-5, 6 in chuck, 44 mm (1.7 in) bar and 6,000 rpm to A2-8, 10 in chuck, 75 mm (3.0 in) bar and 3,500 rpm, on 11/15 kW (14.8/20.1 hp). The machine weighs 4,500 kg (9,921 lb). The same page lists the UA-200Y, a version with a 15-station BMT-55N turret.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	680 mm (26.8 in)
Swing Over Saddle	485 mm (19.1 in)
Max Turning Diameter	240 mm (9.4 in)
Max Turning Length	440 / 440 / 440 / 365 mm (17.3 / 17.3 / 17.3 / 14.4 in)
Guideway Type	Box
Spindle Nose	A2-5 / A2-6 / A2-6 / A2-8
Chuck Size	6 / 8 / 8 / 10 in
Bar Capacity	44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in)
Max Spindle Speed	6,000 / 4,500 / 4,000 / 3,500 rpm
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
X Axis Travel	220 mm (8.7 in)
Z Axis Travel	600 mm (23.6 in)
Y Axis Travel	±50 mm (±2.0 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	20 m/min (787 in/min)
Rapid Traverse Y	10 m/min (394 in/min)
Turret Tooling	BMT/VDI
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Rotary Tool Speed	6,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Tailstock Body Travel	545 mm (21.5 in)
Tailstock Quill Travel	80 mm (3.1 in)
Tailstock Quill Diameter	75 mm (3.0 in)
Tailstock Quill Taper	MT#4
Machine Dimensions	L x W x H: 3.0 x 1.9 x 2.2 m (118.1 x 74.8 x 86.6 in)
Machine Weight	4,500 kg (9,921 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

±50 mm (±2.0 in) Y axis with tailstock support on one spindle
Rotary tools at 6,000 rpm with 3.7/5.5 kW (5.0/7.4 hp)
12-station BMT/VDI turret with servo mechanical drive
Tailstock with 545 mm (21.5 in) body travel and a 75 mm (3.0 in) quill
Bar capacity from 44 mm (1.7 in) to 75 mm (3.0 in) by spindle choice

Limitations

Turning diameter of 240 mm (9.4 in) is less than the 300 mm (11.8 in) of the UT-200
No second spindle for back-end work
Y rapid traverse is 10 m/min (394 in/min)
Rotary tool holders are optional accessories

Best For

Shafts with keyways, flats or offset holes Single-setup turning and milling of parts held between chuck and centre Valve stems, spindles and similar parts up to 440 mm long Bar work that needs Y-axis milling

Frequently Asked Questions

01 What is the Y-axis travel of the Accuway UT-200Y?

±50 mm (±2.0 in), at a rapid traverse rate of 10 m/min (394 in/min). X-axis travel is 220 mm (8.7 in) and Z-axis travel 600 mm (23.6 in), both at 20 m/min (787 in/min).

02 What is the difference between the UT-200Y and the UA-200Y?

The turret and what it leaves for the part. The UA-200Y has a 15-station BMT-55N turret, a 155 mm (6.1 in) maximum turning diameter, a 500 mm (19.7 in) turning length and weighs 5,000 kg (11,023 lb). The UT-200Y has 12 stations, 240 mm (9.4 in) and 440 mm (17.3 in), and weighs 4,500 kg (9,921 lb).

03 Does the UT-200Y have a tailstock?

Yes. Tailstock body travel is 545 mm (21.5 in), quill travel 80 mm (3.1 in), quill diameter 75 mm (3.0 in) and quill taper MT#4. That distinguishes it from the two-spindle UT-200SY, whose table has no tailstock section.

04 Which spindle can the UT-200Y be ordered with?

One of four columns: A2-5 with a 6 in chuck and 6,000 rpm, A2-6 with an 8 in chuck at 4,500 or 4,000 rpm, or A2-8 with a 10 in chuck and 3,500 rpm. Bar capacity is 44, 52, 65 or 75 mm. Power is 11/15 kW (14.8/20.1 hp).
