Accuway UA-200Y

Q: How much does the Accuway UA-200Y cost?

The price estimate for the Accuway UA-200Y is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ua-200y#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

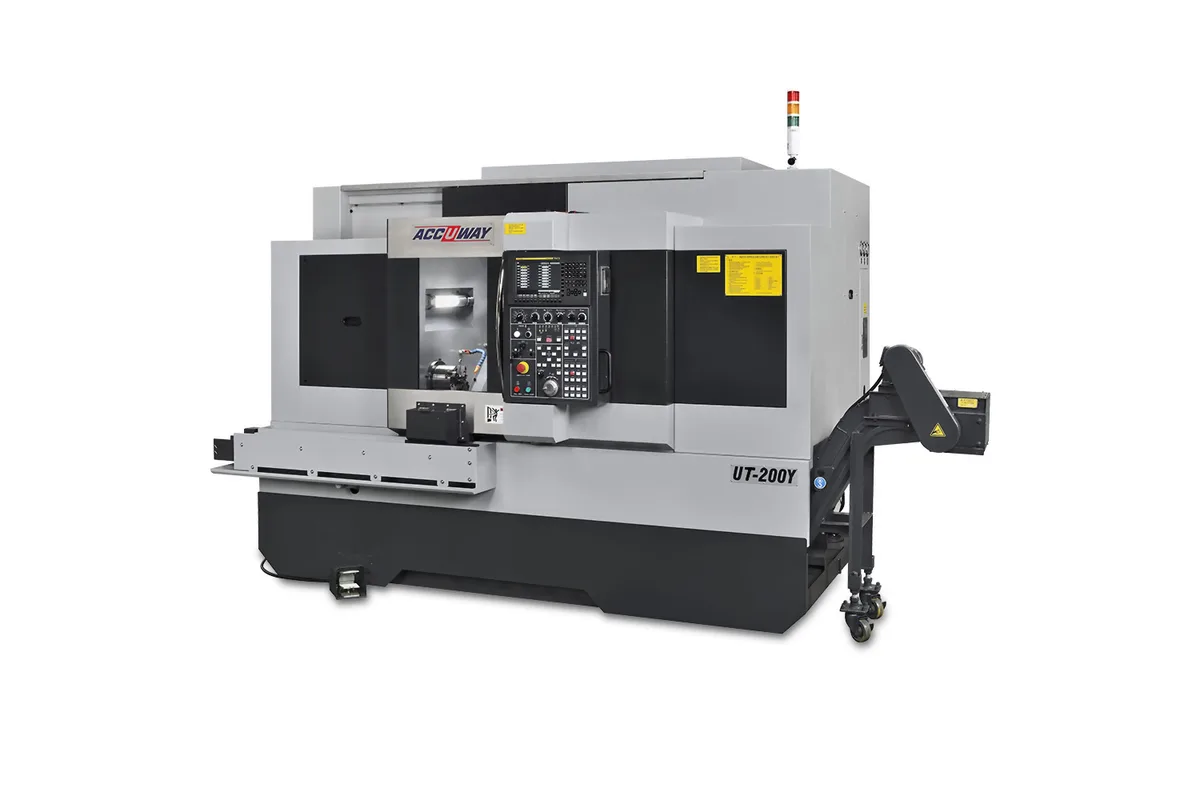

Accuway UT-200Y / UA-200Y slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 / 4,500 / 4,000 / 3,500 rpm

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

Max Turn Length

500 / 500 / 500 / 425 mm (19.7 / 19.7 / 19.7 / 16.7 in)

control

FANUC 0i-T

swing over bed

680 mm (26.8 in)

swing over saddle

485 mm (19.1 in)

How much does the Accuway UA-200Y cost?

Price estimate

Uncertain

We do not have a price for the Accuway UA-200Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Fifteen turret stations are the headline of the Accuway UA-200Y. It is a Y-axis turning center on the same page and the same 680 mm (26.8 in) swing as the UT-200Y, but its turret is a BMT-55N type with 15 stations where the UT-200Y has 12.

Three more tools matter on a mill-turn part. Rotary holders, drills, taps and turning tools compete for stations, and a job that would need a tool change mid-batch on the UT-200Y turret may run complete on 15 stations. Rotary tools turn at up to 6,000 rpm on 3.7/5.5 kW (5.0/7.4 hp), and Y travel is ±50 mm (±2.0 in).

The trade is turning diameter. The table lists 155 mm (6.1 in) for the UA-200Y, against 240 mm (9.4 in) for the UT-200Y, so this is a machine for bar and small chucking work, not for large discs. Turning length goes the other way: 500 mm (19.7 in), or 425 mm (16.7 in) in the A2-8 spindle column.

Spindle choices are the four of the UT-200 family, from A2-5 at 6,000 rpm with a 44 mm (1.7 in) bar to A2-8 at 3,500 rpm with a 75 mm (3.0 in) bar, on an 11/15 kW (14.8/20.1 hp) motor. A tailstock with 545 mm (21.5 in) of body travel is listed. The machine is 3.3 m long and weighs 5,000 kg (11,023 lb). Axes run on box guideways at 20 m/min (787 in/min) in X and Z and 10 m/min (394 in/min) in Y.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	680 mm (26.8 in)
Swing Over Saddle	485 mm (19.1 in)
Max Turning Diameter	155 mm (6.1 in)
Max Turning Length	500 / 500 / 500 / 425 mm (19.7 / 19.7 / 19.7 / 16.7 in)
Guideway Type	Box
Spindle Nose	A2-5 / A2-6 / A2-6 / A2-8
Chuck Size	6 / 8 / 8 / 10 in
Bar Capacity	44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in)
Max Spindle Speed	6,000 / 4,500 / 4,000 / 3,500 rpm
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
X Axis Travel	220 mm (8.7 in)
Z Axis Travel	600 mm (23.6 in)
Y Axis Travel	±50 mm (±2.0 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	20 m/min (787 in/min)
Rapid Traverse Y	10 m/min (394 in/min)
Turret Tooling	BMT-55N
Turret Drive	Servo mechanical
Turret Stations	15
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Rotary Tool Speed	6,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Tailstock Body Travel	545 mm (21.5 in)
Tailstock Quill Travel	80 mm (3.1 in)
Tailstock Quill Diameter	75 mm (3.0 in)
Tailstock Quill Taper	MT#4
Machine Dimensions	L x W x H: 3.3 x 1.9 x 2.2 m (129.9 x 74.8 x 86.6 in)
Machine Weight	5,000 kg (11,023 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

15-station BMT-55N turret with servo mechanical drive
Y axis of ±50 mm (±2.0 in) with rotary tools at 6,000 rpm
500 mm (19.7 in) maximum turning length with a tailstock
Four spindle sizes, bar capacity up to 75 mm (3.0 in)
Box guideways on a 5,000 kg (11,023 lb) machine

Limitations

Maximum turning diameter is only 155 mm (6.1 in)
Rotary tool power of 3.7/5.5 kW (5.0/7.4 hp)
No second spindle for back-end operations
Y rapid traverse of 10 m/min (394 in/min)

Best For

Bar-fed mill-turn parts needing many tools Small shafts and fittings with off-centre milled features Jobs where 15 stations avoid a mid-run tool change Parts up to 155 mm in diameter and 500 mm long

Frequently Asked Questions

01 How many tools does the Accuway UA-200Y turret hold?

15 stations. The tooling system is BMT-55N with a servo mechanical turret drive. Square tool shanks are 20 mm (0.8 in) and round shanks 32 mm (1.3 in). Rotary tools run to 6,000 rpm.

02 What is the turning capacity of the UA-200Y?

Maximum turning diameter is 155 mm (6.1 in). Maximum turning length is 500 mm (19.7 in), or 425 mm (16.7 in) with the A2-8 spindle. Swing over bed is 680 mm (26.8 in) and swing over saddle 485 mm (19.1 in).

03 How does the UA-200Y relate to the UA-200LY?

The UA-200LY is the long version, with 1,000 mm (39.4 in) of Z travel and an 850 mm (33.5 in) turning length, a single A2-6 spindle at 4,500 rpm and 12 stations. The UA-200Y has 600 mm (23.6 in) of Z, four spindle choices and 15 stations.

04 What are the bar capacities of the UA-200Y?

44 mm (1.7 in) with the A2-5 spindle, 52 mm (2.0 in) or 65 mm (2.6 in) with the A2-6 spindle, and 75 mm (3.0 in) with the A2-8 spindle. A bar feeder and a bar feeder interface with 7 or 24 pins are optional accessories.
