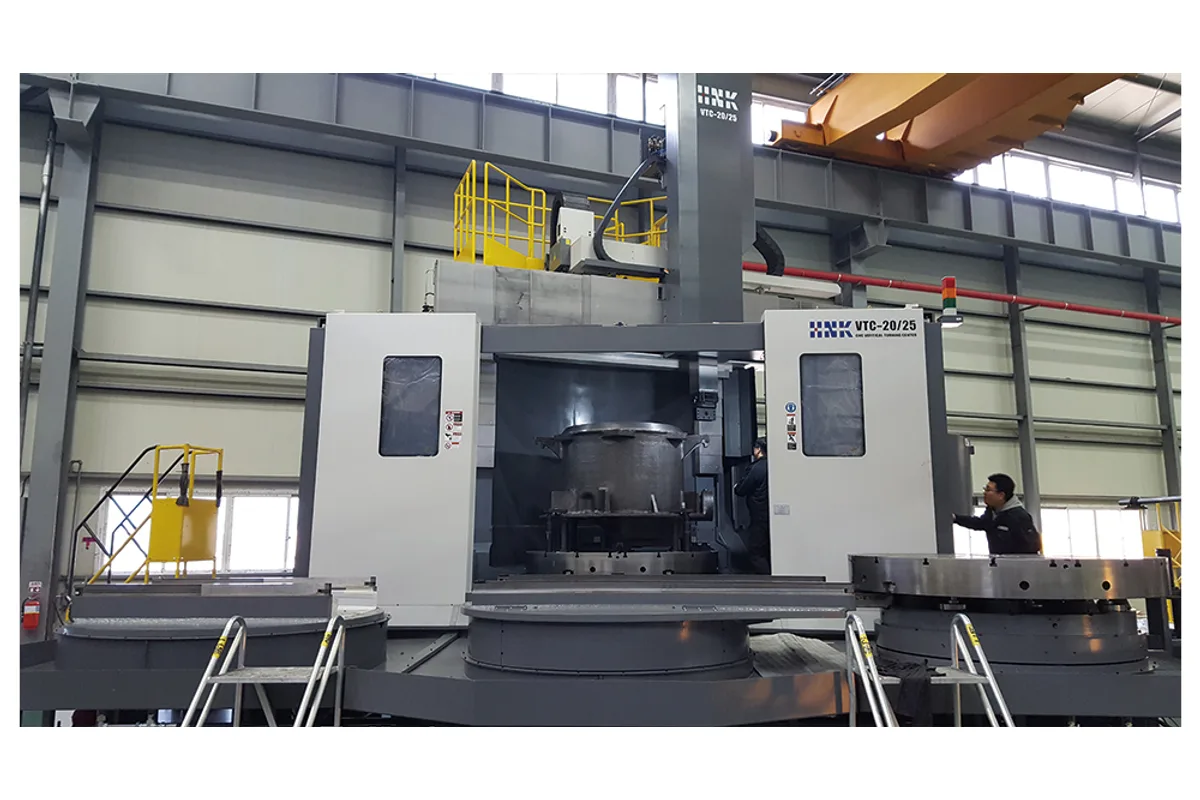

HNK VTC-20/25
Image: en.hnkkorea.com, HNK
Key Specifications
table diameter
max swing cutting diameter
max turning height
table speed turning 2 steps
max table load
c axis table speed
How much does the HNK VTC-20/25 cost?
Price estimate
We do not have a price for the HNK VTC-20/25 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The HNK VTC-20/25 is a vertical turning center with a 2,000 mm (78.7 in) table and 2,500 mm (98.4 in) of swing, and it is where the VTC milling spindle gets its first power increase: A.C 18.5/22 kW (24.8/29.5 hp), cont/30min. The VTC-16/20 below it has A.C 15/18.5 kW (20.1/24.8 hp), and the smaller sizes no more than that.
Speed and taper do not change, at about 2,500 rpm and ISO 50. So the gain is in how hard the spindle can push a face mill or a large drill, which matters as parts get bigger and the features on them grow in proportion. A flange on a ring of this diameter has larger bolt holes than one on a ring half the size.
On the turning side the table carries 12,000 kg (26,455 lb) and runs to about 200 rpm in two steps on an A.C 45/55 kW (60.3/73.8 hp) motor. As a C-axis it turns at 0 to 2 rpm and indexes at 0.001 degree. Turning height is 1,800 mm (70.9 in).
The cross rail moves 250 mm (9.8 in) x 3 steps. Ram head travel is -200 to +1,450 mm (-7.9 to +57.1 in) in X and 1,000 mm (39.4 in) in Z, on a 240 x 240 mm (9.4 x 9.4 in) ram with 40 x 40 mm (1.6 x 1.6 in) shanks for turning tools. Fanuc 31i-B and Siemens 840D are listed.
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | 2,000 mm (78.7 in) |
| Max Swing Cutting Diameter | 2,500 mm (98.4 in) |
| Max Turning Height | 1,800 mm (70.9 in) |
| Table Speed Turning 2 Steps | Max. ~200 rpm |
| Max Table Load | 12,000 kg (26,455 lb) |
| C Axis Table Speed | 0 ~ 2 rpm |
| C Axis Indexing | 0.001˚ |
| Table Drive Motor | A.C 45/55 kW (60.3/73.8 hp) (cont/30min) |
| X Axis Travel | -200 ~ +1,450 mm (-7.9 ~ +57.1 in) |
| Z Axis Travel | 1,000 mm (39.4 in) |
| Milling Spindle Speed | Max.~2,500 rpm |
| Milling Spindle Motor | A.C 18.5/22 kW (24.8/29.5 hp) (cont/30min) |
| Milling Spindle Taper | ISO 50 |
| Ram Size | 240 x 240 mm (9.4 x 9.4 in) |
| Tool Shank Size | 40 x 40 mm (1.6 x 1.6 in) |
| Cross Rail Vertical Travel | 250 mm (9.8 in) x 3 steps |
| CNC Control | Fanuc 31i-B, Siemens 840D |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Milling motor of A.C 18.5/22 kW (24.8/29.5 hp), a step up from the VTC-16/20
- 2,500 mm (98.4 in) swing with 1,800 mm (70.9 in) of turning height
- A.C 45/55 kW (60.3/73.8 hp) table drive
- 1,000 mm (39.4 in) of Z travel
Limitations
- 12,000 kg (26,455 lb) table load is light for the diameter; the VTC-25/30 takes 20,000 kg (44,092 lb)
- C-axis speed drops to 0 to 2 rpm
- Table speed of about 200 rpm at most
Best For
Frequently Asked Questions
01
The milling spindle motor is A.C 18.5/22 kW (24.8/29.5 hp) on a cont/30min basis, with a top speed of about 2,500 rpm and an ISO 50 taper. The VTC-16/20 below it has A.C 15/18.5 kW (20.1/24.8 hp).
02
A 2,000 mm (78.7 in) table, 2,500 mm (98.4 in) maximum swing and cutting diameter, 1,800 mm (70.9 in) of turning height and a table load of 12,000 kg (26,455 lb).
03
Yes, row for row: table, swing, height, about 200 rpm, 12,000 kg (26,455 lb) and the A.C 45/55 kW (60.3/73.8 hp) motor are the same as on the NT-20/25, and both use a 240 x 240 mm (9.4 x 9.4 in) ram. The VTC-20/25 adds the milling spindle and C-axis.
04
The cross rail has a vertical travel of 250 mm (9.8 in) x 3 steps. The ram head then moves 1,000 mm (39.4 in) in Z. Both the turning height and the Z travel are rows HNK will vary to order.
