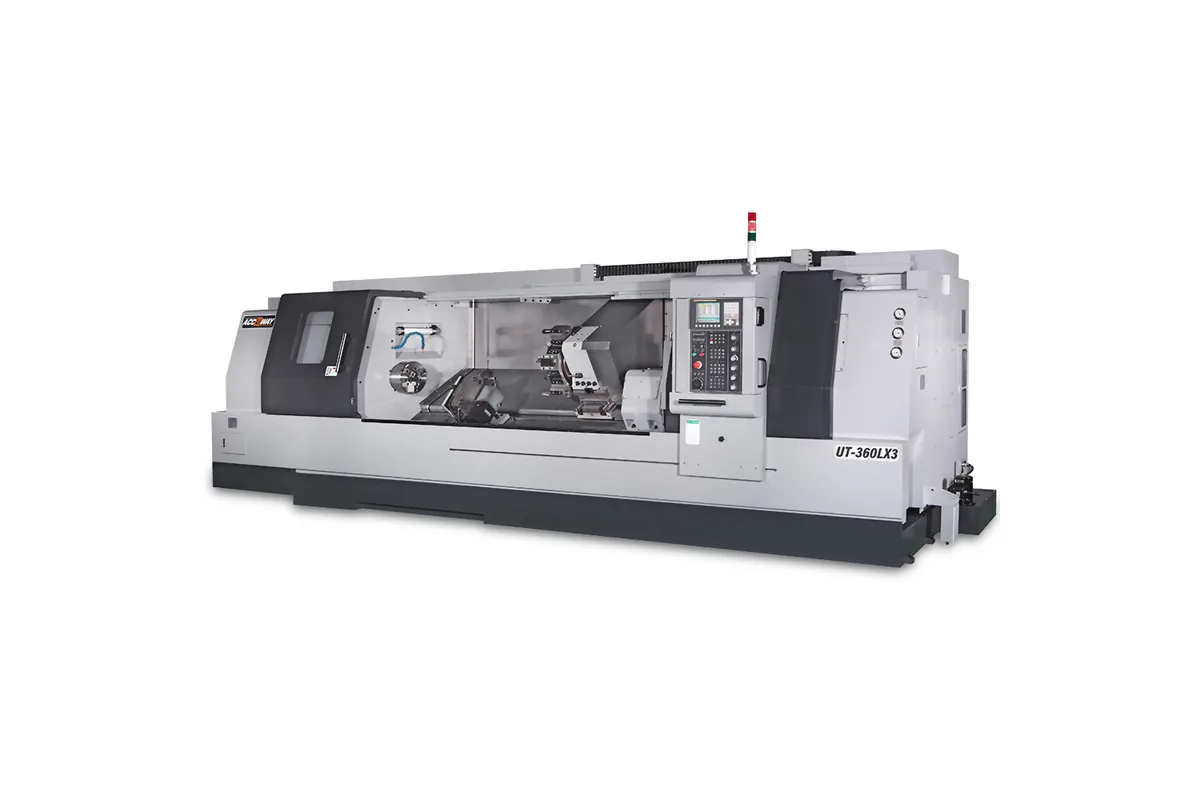

Accuway UT-360LX3
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-360LX3 cost?
Price estimate
We do not have a price for the Accuway UT-360LX3 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accuway UT-360LX3 has 3,182 mm (125.3 in) of Z travel and turns parts up to 3,062 mm (120.6 in) long. With the A2-11 spindle noses the length is 2,982 mm (117.4 in). It is the top of the UT-360 series for length.
An odd fact in the tables: the UT-360LX3 and the lighter-series UT-300LX3 are both listed at 11,000 kg (24,250 lb) and 7 x 2.3 x 2.2 m (275.6 x 90.6 x 86.6 in). The step up between the two series, visible in weight on every shorter bed, vanishes at this length. What remains different is the working hardware: 540 mm (21.3 in) of turning diameter, a 600 mm (23.6 in) swing over saddle, an 18.5/22 kW (24.8/29.5 hp) motor and an MT#6 quill of 120 mm (4.7 in).
Z rapid traverse is 10 m/min (394 in/min). The tailstock body travels 3,040 mm (119.7 in).
Three-metre turning is slow, low-speed work, and the top spindle speed of 2,700 rpm will rarely be reached with a part this long in the chuck. More relevant is torque at low rpm, for which a gear box is offered as an option, and support along the part, for which a steady rest is offered. Neither is standard. The turret takes 32 mm (1.3 in) square and 50 mm (2.0 in) round shanks in 12 BOT stations, and the control is a FANUC 0i-T with a 10.4" Colored LCD monitor.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 750 mm (29.5 in) |
| Swing Over Saddle | 600 mm (23.6 in) |
| Max Turning Diameter | 540 mm (21.3 in) |
| Max Turning Length | 3,062 / 2,982 / 2,982 mm (120.6 / 117.4 / 117.4 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-11 / A2-11 |
| Chuck Size | 12 / 15 / 15 in |
| Bar Capacity | 90 / 105 / 116.5 mm (3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 18.5/22 kW (24.8/29.5 hp), in brackets 30/37 kW (40.2/49.6 hp) |
| X Axis Travel | 305 mm (12.0 in) |
| Z Axis Travel | 3,182 mm (125.3 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 10 m/min (394 in/min) |
| Turret Tooling | BOT |
| Turret Drive | Hydraulic/Servo |
| Turret Stations | 12 |
| Square Tool Shank | 32 mm (1.3 in) |
| Round Tool Shank | 50 mm (2.0 in) |
| Tailstock Body Travel | 3,040 mm (119.7 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 120 mm (4.7 in) |
| Tailstock Quill Taper | MT#6 |
| Machine Dimensions | L x W x H: 7 x 2.3 x 2.2 m (275.6 x 90.6 x 86.6 in) |
| Machine Weight | 11,000 kg (24,250 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,062 mm (120.6 in) maximum turning length
- 540 mm (21.3 in) turning diameter and 600 mm (23.6 in) swing over saddle
- MT#6 tailstock quill with 3,040 mm (119.7 in) of body travel
- 18.5/22 kW (24.8/29.5 hp) spindle motor
- Gear box and steady rest available as options
Limitations
- Z rapid traverse of 10 m/min (394 in/min)
- 7 m long and 11,000 kg (24,250 lb)
- Steady rest is optional although long work depends on it
- X travel of 305 mm (12.0 in) is no larger than on the short beds
Best For
Frequently Asked Questions
01
3,062 mm (120.6 in) with the A2-8 spindle nose and 2,982 mm (117.4 in) with the A2-11 noses. Z-axis travel is 3,182 mm (125.3 in) and the maximum turning diameter is 540 mm (21.3 in).
02
Weight and dimensions are listed the same. The UT-300LX3 turns 500 mm (19.7 in) with a 15/18.5 kW (20.1/24.8 hp) spindle and Z rapids of 10 m/min (394 in/min); the UT-360LX3 turns 540 mm (21.3 in) with 18.5/22 kW (24.8/29.5 hp) at the same rapid rate.
03
The optional accessories name an A2-11 spindle headstock and 105 mm bar capacity, an A2-11 spindle headstock and 116 mm bar capacity, and an A2-15 spindle headstock and 166 mm bar capacity.
04
For larger diameters Accuway lists the UT-380 series, which uses four spindle columns, and above that the UT-400 and UT-600 heavy-duty turning centers. None of the UT-360 beds is longer than this one.
