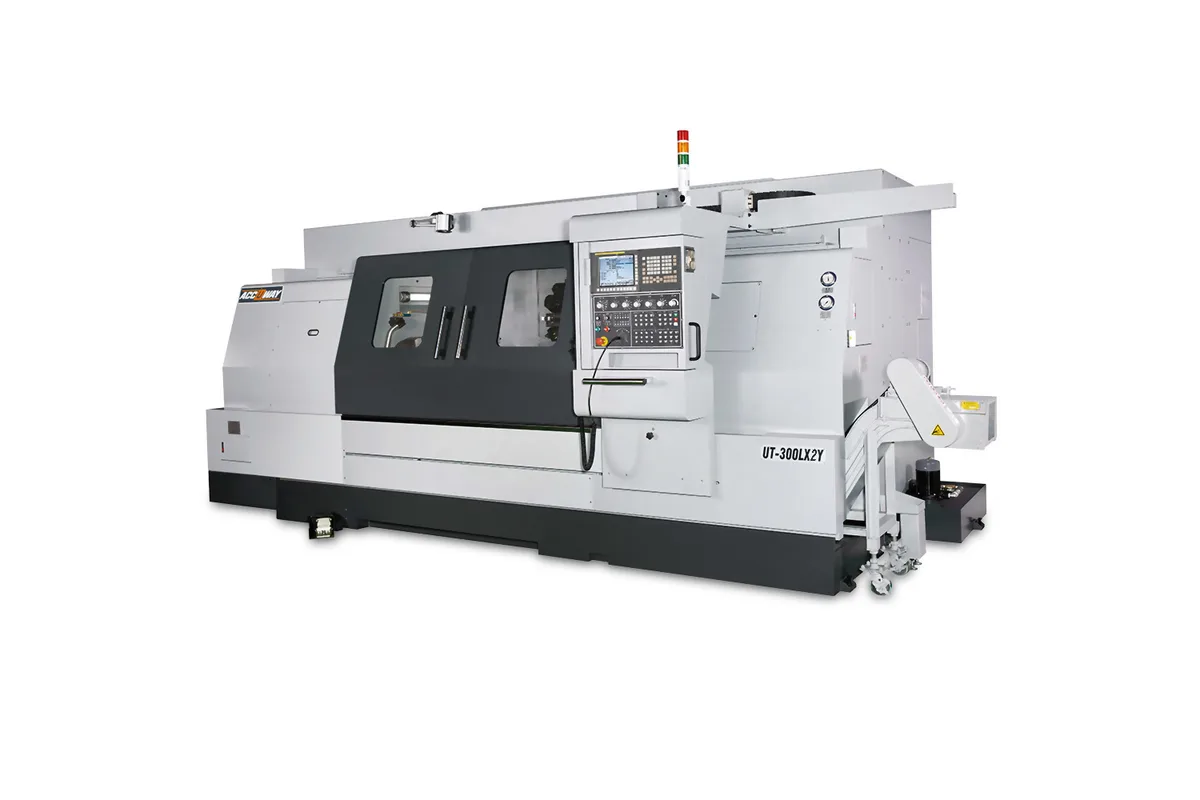

Accuway UT-300LX2Y
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-300LX2Y cost?
Price estimate
We do not have a price for the Accuway UT-300LX2Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
At 2,150 mm (84.6 in) of Z travel the Accuway UT-300LX2Y is the longest UT-300 with a Y axis. It turns up to 2,040 mm (80.3 in) in length with an A2-8 spindle and 1,970 mm (77.6 in) with A2-11, and mills with 4,000 rpm rotary tools over ±50 mm (±2.0 in) of Y.
Several rows set it apart from the UT-300LXY below it. The maximum turning diameter is given as 470 mm (18.5 in), larger than the UT-300LXY's 420 mm (16.5 in). Weight rises to 9,900 kg (21,825 lb). The width is narrower on paper, 2.1 m against 2.5 m for the UT-300LXY, with an overall size of 5.8 x 2.1 x 2.4 m (228.3 x 82.7 x 94.5 in).
One row needs attention when planning work. Tailstock body travel is printed as 1,540 mm (60.6 in), the same as on the shorter machine, although the bed is longer. If that figure is right, the tailstock cannot be brought as near to the chuck as the turning length might suggest, so short parts held between centres should be checked with Accuway.
Z rapid traverse is 24 m/min (945 in/min). That is quicker than the two-axis UT-300LX2, which is listed at 15 m/min (591 in/min) on a similar bed. Y moves at 10 m/min (394 in/min). The rest follows the Y-axis family: 910 mm (35.8 in) swing over bed, BMT/VDI tooling in 12 stations, a 3.7/5.5 kW (5.0/7.4 hp) rotary tool motor and a 15/18.5 kW (20.1/24.8 hp) spindle.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 910 mm (35.8 in) |
| Swing Over Saddle | 720 mm (28.3 in) |
| Max Turning Diameter | 470 mm (18.5 in) |
| Max Turning Length | 2,040 / 2,040 / 1,970 / 1,970 mm (80.3 / 80.3 / 77.6 / 77.6 in) |
| Guideway Type | Box |
| Spindle Nose | A2-8 / A2-8 / A2-11 / A2-11 |
| Chuck Size | 10 / 12 / 15 / 15 in |
| Bar Capacity | 75 / 90 / 105 / 116.5 mm (3.0 / 3.5 / 4.1 / 4.6 in) |
| Max Spindle Speed | 3,500 / 2,700 / 2,500 / 2,000 rpm |
| Spindle Motor Power | Cont. / 30min: 15/18.5 kW (20.1/24.8 hp), in brackets 18.5/22 kW (24.8/29.5 hp) |
| X Axis Travel | 275 mm (10.8 in) |
| Z Axis Travel | 2,150 mm (84.6 in) |
| Y Axis Travel | ±50 mm (±2.0 in) |
| Rapid Traverse X | 20 m/min (787 in/min) |
| Rapid Traverse Z | 24 m/min (945 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Turret Tooling | BMT/VDI |
| Turret Drive | Servo mechanical |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 4,000 rpm |
| Rotary Tool Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Tailstock Body Travel | 1,540 mm (60.6 in) |
| Tailstock Quill Travel | 120 mm (4.7 in) |
| Tailstock Quill Diameter | 85 mm (3.3 in) |
| Tailstock Quill Taper | MT#5 |
| Machine Dimensions | L x W x H: 5.8 x 2.1 x 2.4 m (228.3 x 82.7 x 94.5 in) |
| Machine Weight | 9,900 kg (21,825 lb) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,040 mm (80.3 in) turning length with Y-axis milling
- 470 mm (18.5 in) maximum turning diameter
- Z rapid traverse of 24 m/min (945 in/min) on a 2,150 mm (84.6 in) travel
- Y travel of ±50 mm (±2.0 in) with 4,000 rpm rotary tools
- Steady rest offered as an option
Limitations
- Tailstock body travel listed as 1,540 mm (60.6 in), shorter than the bed
- 9,900 kg (21,825 lb) and 5.8 m long
- Y rapid traverse of 10 m/min (394 in/min)
- Rotary tool holders, 0 degree and 90 degree, are optional
Best For
Frequently Asked Questions
01
Maximum turning length is 2,040 mm (80.3 in) in the two A2-8 columns and 1,970 mm (77.6 in) in the two A2-11 columns. Z-axis travel is 2,150 mm (84.6 in) and maximum turning diameter 470 mm (18.5 in).
02
A 12-station BMT/VDI turret with servo mechanical drive, rotary tools at 4,000 rpm on a 3.7/5.5 kW (5.0/7.4 hp) motor, and a Y axis with ±50 mm (±2.0 in) of travel at 10 m/min (394 in/min).
03
The UT-300LX2 is a two-axis machine with 2,250 mm (88.6 in) of Z travel, a 500 mm (19.7 in) turning diameter and 9,000 kg (19,841 lb) of weight. The UT-300LX2Y has 2,150 mm (84.6 in) of Z, adds Y and rotary tools, turns 470 mm (18.5 in) and weighs 9,900 kg (21,825 lb).
04
The tailstock body travel. The table gives 1,540 mm (60.6 in), identical to the UT-300LXY, which has a 1,750 mm (68.9 in) Z travel. Ask Accuway how close the tailstock comes to the chuck on this bed.
