LICO LNC65

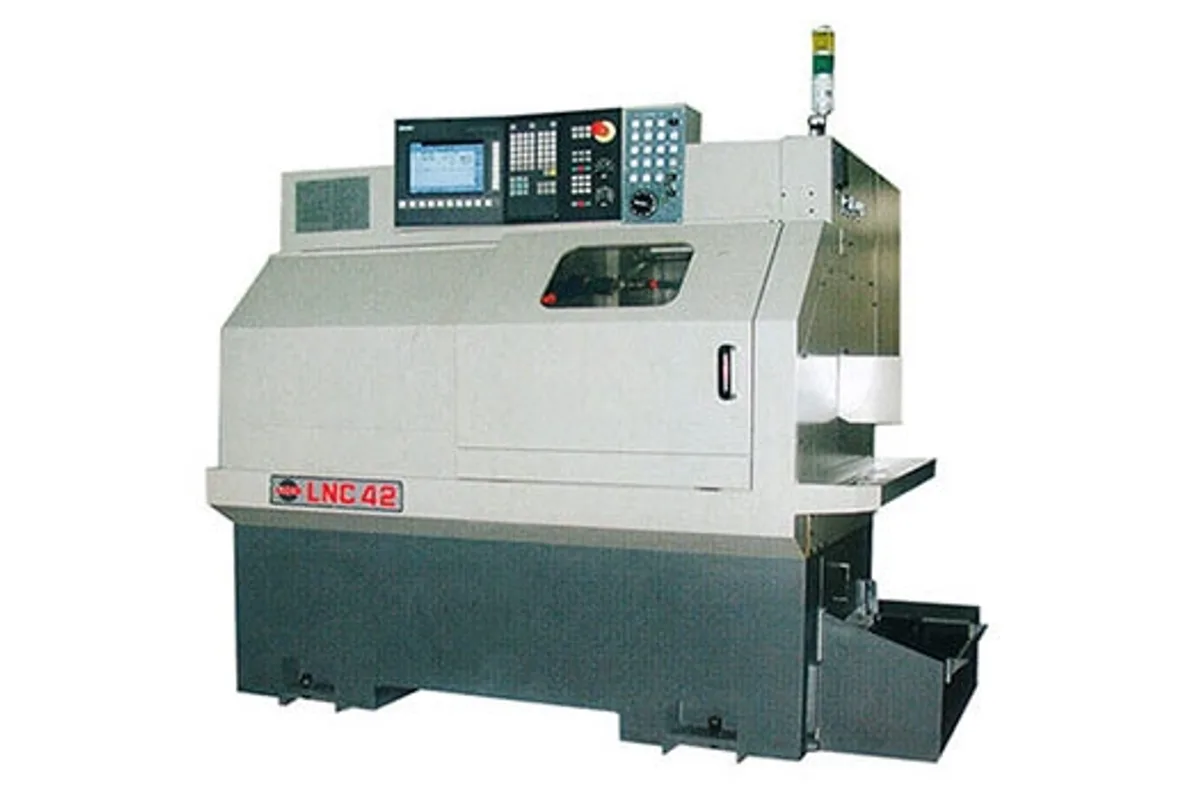

Image: licomachinery.com, LICO
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
Max Turn Length
bar capacity
max swing
How much does the LICO LNC65 cost?
Price estimate
We do not have a price for the LICO LNC65 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Torque is the figure to read first on the LICO LNC65. This CNC automatic lathe for 65 mm (2.6 in) bar lists a maximum spindle torque of 95 Nm (70.1 lb-ft) from a 7.5 kW (10 HP) continuous motor, at up to 4,000 rpm. The LNC42 beside it in the table has 42 Nm (31.0 lb-ft), so the larger model more than doubles the torque while keeping the same cabinet.
Same cabinet is meant literally. Both sizes are listed at 1,870 x 1,440 x 1,650 mm (73.6 x 56.7 x 65.0 in), with 300 mm (11.8 in) of X travel and 300 mm (11.8 in) of Z, and a maximum swing of 260 mm (10.2 in). The LNC65 weighs 2,000 kg (4,409 lb), and its total power requirement is 28 kVA.
The spindle nose is an ISO A2-6 with an F72 collet chuck as standard equipment. An 8 in hollow power chuck is optional; with it the turning diameter is 195 mm (7.7 in) and the turning length 254 mm (10 in). That diameter is close to the swing, so check tool clearance on chuck work of full size.
Tooling follows the series pattern of gang tools on a dovetail X-axis slide, but the optional turret for this size has 12 positions where the smaller model gets 8. Working feeds reach 0-10,000 mm/min (0-394 ipm). Standard rapid traverse is 10 m/min (394 ipm), with 15 m/min (591 ipm) as an option, and the standard controller is the MITSUBISHI M64SL, SIEMENS 802D or FANUC OiMATE.
Full Specifications
| Parameter | Value |
|---|---|
| Bar Capacity | 65 mm (2.6 in) |
| Max Swing | 260 mm (10.2 in) |
| Max Turning Diameter | 195 mm (7.7 in) with 3-jaw power chuck |
| Max Turning Length | 300 mm (11.8 in) with collet; 254 mm (10 in) with 3-jaw power chuck |
| Spindle Center Height | 1,000 mm (39.4 in) |
| Spindle Nose | ISO A2-6 |
| Collet Chuck Type | F72 |
| Chuck Size | 8 in (power chuck reception) |
| Spindle Motor Power | 7.5 kW (10 HP) continuous |
| Spindle Torque | 95 Nm (70.1 lb-ft) |
| Max Spindle Speed | 4,000 rpm |
| X Axis Travel | 300 mm (11.8 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Resolution | 0.001 mm |
| Turret Stations | 12 (optional tool turret) |
| Turning Tool Section | 20 mm (3/4 in) square |
| Boring Tool Reception | 25 mm (1 in) |
| Cutting Feed Rate | 0-10,000 mm/min (0-394 ipm) |
| Rapid Traverse Rate | 10 m/min (394 ipm); 15 m/min (591 ipm) option |
| CNC Control | MITSUBISHI M64SL, SIEMENS 802D or FANUC OiMATE |
| Machine Dimensions | 1,870 x 1,440 x 1,650 mm (73.6 x 56.7 x 65.0 in) (L x W x H) |
| Machine Weight | 2,000 kg (4,409 lb) net, with electronic cabinet |
| Hydraulic Tank Capacity | 40 L |
| Hydraulic Pump Motor | 0.75 kW (1.0 hp) |
| Coolant Tank Capacity | 150 L |
| Coolant Pump Motor | 0.25 kW (0.3 hp) |
| Lubrication | 2 L, 6 c.c. / 12 min |
| Power Requirement | 28 kVA |
Specifications sourced from licomachinery.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Maximum spindle torque of 95 Nm (70.1 lb-ft), against 42 Nm (31.0 lb-ft) on the LNC42
- 65 mm (2.6 in) bar capacity on an ISO A2-6 spindle nose
- The optional tool turret for this size has 12 positions
- Working feeds of 0-10,000 mm/min (0-394 ipm)
- Same 1,870 x 1,440 x 1,650 mm (73.6 x 56.7 x 65.0 in) outside dimensions as the smaller model
Limitations
- Maximum spindle speed is 4,000 rpm; the LNC42 runs to 5,000 rpm
- 7.5 kW (10 HP) continuous is a small motor for 65 mm (2.6 in) bar in alloy steel
- Turning diameter of 195 mm (7.7 in) with the chuck sits close to the 260 mm (10.2 in) maximum swing
- The 12-position turret, the 8 in hollow power chuck and the automatic bar feeder are optional accessories
Best For
Frequently Asked Questions
01
LICO lists a maximum torque of 95 Nm (70.1 lb-ft) with an AC motor of 7.5 kW (10 HP) continuous output. Maximum spindle speed is 4,000 rpm. The table gives no speed at which the torque applies.
02
The machine is a gang tool lathe as standard, with standard tool holders included. The optional accessories list names a tool turret 12 pos. for the LNC65. Turning tools are 20 mm (3/4 in) square and the boring tool reception is 25 mm (1 in).
03
From bar, up to 65 mm (2.6 in) in diameter and 300 mm (11.8 in) long with the collet. With the optional 8 in hollow power chuck the maximum turning diameter is 195 mm (7.7 in) and the length 254 mm (10 in). Maximum swing is 260 mm (10.2 in).
04
Working feeds on X and Z are stepless from 0-10,000 mm/min (0-394 ipm). Rapid traverse is 10 m/min (394 ipm); 15 m/min (591 ipm) is offered as an option. Resolution is 0.001 mm.
