DN Solutions PUMA V 8300 M

Est. $290,000 - $425,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

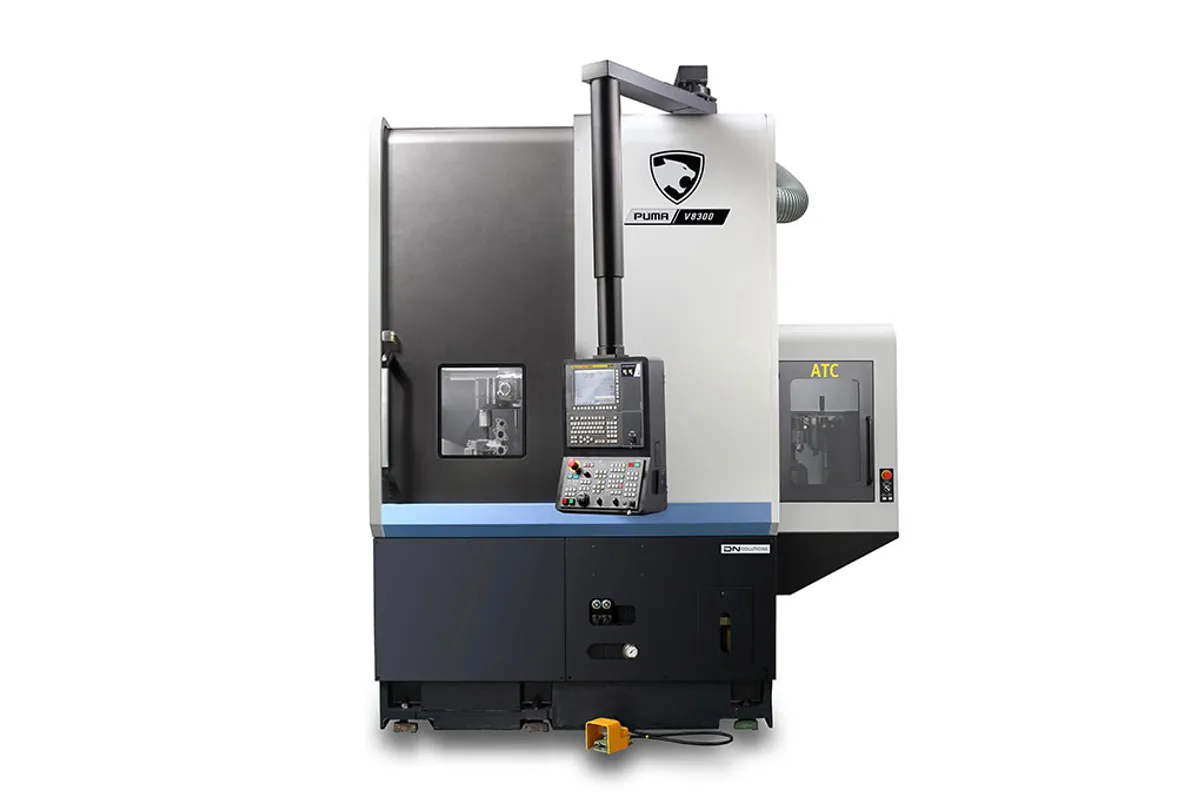

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

495 mm (19 in)

Z Travel

780 mm (31 in)

Max Spindle

2,000 rpm

Rapid Traverse

20 m/min (787 ipm)

Spindle Power

37 kW (50 hp)

Max Turn Length

690 mm (27 in)

How much does the DN Solutions PUMA V 8300 M cost?

Estimated price range

Est.$290,000 - $425,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions PUMA V 8300 M is a vertical turning center with driven tools: a 15 in chuck, a maximum turning diameter of 830 mm (33 in), and a 12-station turret whose live tools run to 4,000 rpm. The spindle is rated 37 kW (50 hp) and 2,592 N·m (1,912 ft-lb) with a 2,000 rpm top speed.

The M differs from the turning-only Puma V8300 in three rows. It has the live tool speed, its maximum turning length is 690 mm (27 in) where the Puma V8300 is listed at 780 mm (31 in), and it weighs 9,500 kg (20,944 lb) against 9,400 kg (20,723 lb) for the Puma V8300. Z travel is 780 mm (31 in) on both, so the driven turret costs turning length, not axis stroke. X travel is 495 mm (19 in) and rapid traverse is 20 m/min (787 ipm).

The standard chuck is small for the swing. A 15 in chuck under an 830 mm (33 in) turning diameter suits parts gripped on a hub or bore, with the larger diameter overhanging the jaws: brake drums, wheel hubs, pulleys, flywheels. DN lists chucks up to 32 inch as an option for the series, which is what to ask about for rings and thin-walled parts that have to be held on the outside diameter. Live tools then finish the bolt circle or stud holes in the same clamping, which is the reason to pick this model over the plain one.

Two series statements should not be mistaken for this machine's figures. DN quotes a maximum turning diameter of Ø930 mm and a spindle motor of 45 kW and 4,443 N·m for the series; the column for this model says 830 mm (33 in), 37 kW (50 hp) and 2,592 N·m (1,912 ft-lb). An automatic tool changer is also a series option, not standard equipment.

The machine occupies 2,005 × 2,715 mm (79 × 107 in) of floor and stands 3,636 mm (143 in) high, so headroom is the installation check. DN describes a servo-driven turret, a bed shaped for disposing of large chip volumes, and an operation panel whose height can be adjusted, with fixed pendants available.

Full Specifications

Parameter	Value
Chuck Size	15 in
Max Turning Diameter	830 mm (33 in)
Max Turning Length	690 mm (27 in)
Rapid Traverse Rate	20 m/min (787 ipm)
X-Axis Travel	495 mm (19 in)
Z-Axis Travel	780 mm (31 in)
Max Spindle Speed	2,000 rpm
Spindle Motor Power	37 kW (50 hp)
Spindle Torque	2,592 N·m (1,912 ft-lb)
Turret Stations	12
Live Tool Speed	4,000 rpm
Floor Space Required	2,005 × 2,715 × 3,636 mm (79 × 107 × 143 in)
Machine Weight	9,500 kg (20,944 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

Live tools at up to 4,000 rpm on a 12-station servo-driven turret
830 mm (33 in) maximum turning diameter in a floor area of 2,005 × 2,715 mm (79 × 107 in)
37 kW (50 hp) spindle with 2,592 N·m (1,912 ft-lb) and 2,000 rpm
Chuck sizes up to 32 inch are offered as an option for the series
Operation panel height is adjustable, and a fixed pendant is available

Limitations

Maximum turning length is 690 mm (27 in), shorter than the 780 mm (31 in) of the Puma V8300
Standard chuck is 15 in; larger chucks up to 32 inch are an option
The series figures of 45 kW, 4,443 N·m and Ø930 mm are above this model's 37 kW (50 hp), 2,592 N·m (1,912 ft-lb) and 830 mm (33 in)
The automatic tool changer is an option, and the height of 3,636 mm (143 in) needs ceiling clearance
No power or torque is listed for the live tools

Best For

Brake drums, hubs and flywheels up to 830 mm (33 in) in diameter Disc-shaped parts that need bolt holes drilled after turning Short, heavy parts within 690 mm (27 in) of turning length Cells with limited floor area but 3,636 mm (143 in) of headroom

Frequently Asked Questions

01 What is the difference between the PUMA V 8300 M and the Puma V8300?

The PUMA V 8300 M has live tools at 4,000 rpm; the Puma V8300 has no live tool speed listed. The M also has a shorter maximum turning length, 690 mm (27 in) against 780 mm (31 in) for the Puma V8300, and weighs 9,500 kg (20,944 lb) against 9,400 kg (20,723 lb) for the Puma V8300. Chuck, turning diameter, travels, spindle and turret stations are the same.

02 What chuck sizes are available?

The table lists a 15 in chuck for this model. DN states a maximum chuck size of 32 inch as an option for the series. With a maximum turning diameter of 830 mm (33 in), the choice depends on how the part is held: a small chuck for hub or bore gripping, a larger one for clamping on the outside of a ring.

03 Does the PUMA V 8300 M have the 45 kW spindle?

Not according to its column, which lists 37 kW (50 hp) and 2,592 N·m (1,912 ft-lb) at up to 2,000 rpm. DN's description of the series says the spindle motor provides 45 kW and 4,443 N·m. If the higher rating is needed, ask DN which configuration carries it and whether it can be ordered on the M.

04 Is an automatic tool changer included?

No. DN lists an automatic tool changer as an option for the series. The standard tooling arrangement is the 12-station servo-driven turret, with live tools at up to 4,000 rpm on this model.

05 How much room does the machine take?

It is listed at 2,005 × 2,715 × 3,636 mm (79 × 107 × 143 in), length by width by height, and weighs 9,500 kg (20,944 lb). The floor area is small for a machine that turns 830 mm (33 in); the height is what has to be checked, including crane clearance for lowering parts onto the chuck.
