Accuway UT-200SM

Q: How much does the Accuway UT-200SM cost?

The price estimate for the Accuway UT-200SM is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-ut-200sm#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

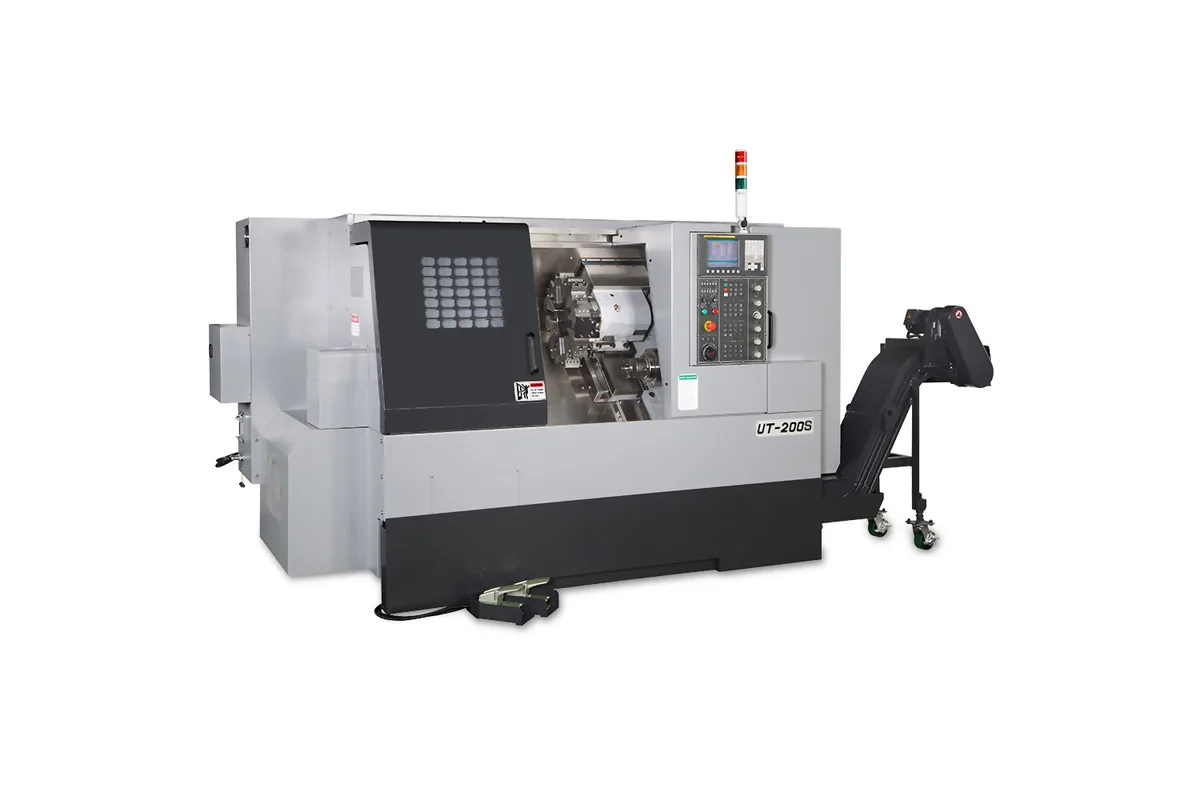

Accuway UT-200S / UT-200SM slant bed turning center

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

6,000 / 4,500 / 4,000 / 3,500 rpm

Spindle Power

Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

Max Turn Length

440 / 440 / 440 / 370 mm (17.3 / 17.3 / 17.3 / 14.6 in)

control

FANUC 0i-T

swing over bed

570 mm (22.4 in)

swing over saddle

378 mm (14.9 in)

How much does the Accuway UT-200SM cost?

Price estimate

Uncertain

We do not have a price for the Accuway UT-200SM that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Two spindles and a driven turret make the Accuway UT-200SM a done-in-one lathe for small and mid-size parts: turn the front, mill or drill it with rotary tools at up to 6,000 rpm, transfer, and repeat on the back. It has one 12-station BMT/VDI turret with servo mechanical drive and a rotary tool motor of 3.7/5.5 kW (5.0/7.4 hp).

The table shows a slightly larger frame than the UT-200S it shares a page with. Swing over bed is 570 mm (22.4 in) and swing over saddle 378 mm (14.9 in), where the UT-200S lists 505 mm (19.9 in) and 318 mm (12.5 in). Turning diameters are the same on both, 250 mm (9.8 in) at SP1 and 220 mm (8.7 in) at SP2, and turning length is 440 mm (17.3 in), or 370 mm (14.6 in) in the last spindle column.

The main spindle comes in four columns from A2-5 at 6,000 rpm to A2-8 at 3,500 rpm, with chucks of 6 to 10 in, bar capacity of 44 to 75 mm and 11/15 kW (14.8/20.1 hp). The second spindle is A2-5 with a 44 mm (1.7 in) bar and 5.5/7.5 kW (7.4/10.1 hp), travelling 585 mm (23.0 in) on the B axis.

There is no Y axis, so milled features sit on the centreline of either spindle. With a bar feeder and a parts catcher from the options list the machine can run bar stock to finished parts. It weighs 4,000 kg (8,818 lb) and is 3.2 m long.

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-T
Swing Over Bed	570 mm (22.4 in)
Swing Over Saddle	378 mm (14.9 in)
Max Turning Diameter Sp1	250 mm (9.8 in)
Max Turning Diameter Sp2	220 mm (8.7 in)
Max Turning Length	440 / 440 / 440 / 370 mm (17.3 / 17.3 / 17.3 / 14.6 in)
Guideway Type	Box
Spindle Nose	A2-5 / A2-6 / A2-6 / A2-8
Chuck Size	6 / 8 / 8 / 10 in
Bar Capacity	44 / 52 / 65 / 75 mm (1.7 / 2.0 / 2.6 / 3.0 in)
Max Spindle Speed	6,000 / 4,500 / 4,000 / 3,500 rpm
Spindle Motor Power	Cont. / 30min: 11/15 kW (14.8/20.1 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
Spindle 2 Nose	A2-5
Spindle 2 Chuck Size	6 / 6 / 8 / 8 in
Spindle 2 Bar Capacity	44 mm (1.7 in)
Spindle 2 Speed	6,000 / 6,000 / 5,000 / 5,000 rpm
Spindle 2 Power	Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp)
X Axis Travel	220 mm (8.7 in)
Z Axis Travel	600 mm (23.6 in)
B Axis Travel	585 mm (23.0 in)
Rapid Traverse X	20 m/min (787 in/min)
Rapid Traverse Z	20 m/min (787 in/min)
Rapid Traverse B	20 m/min (787 in/min)
Turret Tooling	BMT/VDI
Turret Drive	Servo mechanical
Turret Stations	12
Square Tool Shank	20 mm (0.8 in)
Round Tool Shank	32 mm (1.3 in)
Rotary Tool Speed	6,000 rpm
Rotary Tool Power	3.7/5.5 kW (5.0/7.4 hp)
Machine Dimensions	L x W x H: 3.2 x 1.6 x 1.8 m (126.0 x 63.0 x 70.9 in)
Machine Weight	4,000 kg (8,818 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Two spindles plus rotary tools at 6,000 rpm for complete machining of both ends
12-station BMT/VDI turret with servo mechanical drive
Swing over bed of 570 mm (22.4 in)
Second spindle on a 585 mm (23.0 in) B axis with 20 m/min (787 in/min) rapid
Bar feeder, bar feeder interface and parts catcher are offered as options

Limitations

No Y axis; the UT-200SY has one
No tailstock section in the table, so no centre support for long parts
Rotary tool power is 3.7/5.5 kW (5.0/7.4 hp)
Rotary tool holders are optional accessories

Best For

Complete machining of fittings and connectors from bar Parts with on-centre cross holes or flats on both ends Medium batches where a second operation would otherwise be needed Chucking parts up to 250 mm in diameter

Frequently Asked Questions

01 What can the Accuway UT-200SM do that the UT-200S cannot?

Mill and drill with rotary tools. The UT-200SM lists a maximum rotary tool speed of 6,000 rpm and rotary tool power of 3.7/5.5 kW (5.0/7.4 hp) on a BMT/VDI turret. The UT-200S has a BOT turret and no rotary tool figures.

02 What are the two spindles of the UT-200SM?

Spindle 1 is offered as A2-5, A2-6 or A2-8 with 6, 8 or 10 in chucks, up to 75 mm (3.0 in) of bar capacity and 11/15 kW (14.8/20.1 hp). Spindle 2 is A2-5 with a 44 mm (1.7 in) bar capacity, 5.5/7.5 kW (7.4/10.1 hp) and 6,000 or 5,000 rpm.

03 What is the turning capacity of the UT-200SM?

250 mm (9.8 in) maximum turning diameter at the first spindle and 220 mm (8.7 in) at the second, with a maximum turning length of 440 mm (17.3 in), or 370 mm (14.6 in) with the A2-8 spindle. X travel is 220 mm (8.7 in) and Z travel is 600 mm (23.6 in).

04 What is standard and what is optional on the UT-200SM?

Standard: FANUC 0i-T controller, RJ-45 interface, rigid tapping, a 10.4" colored LCD monitor, a 4-bar coolant system and a three-color warning light. Optional: collet chuck, tool setter, parts catcher and conveyor, bar feeder, linear scale and the rotary tool holders.
