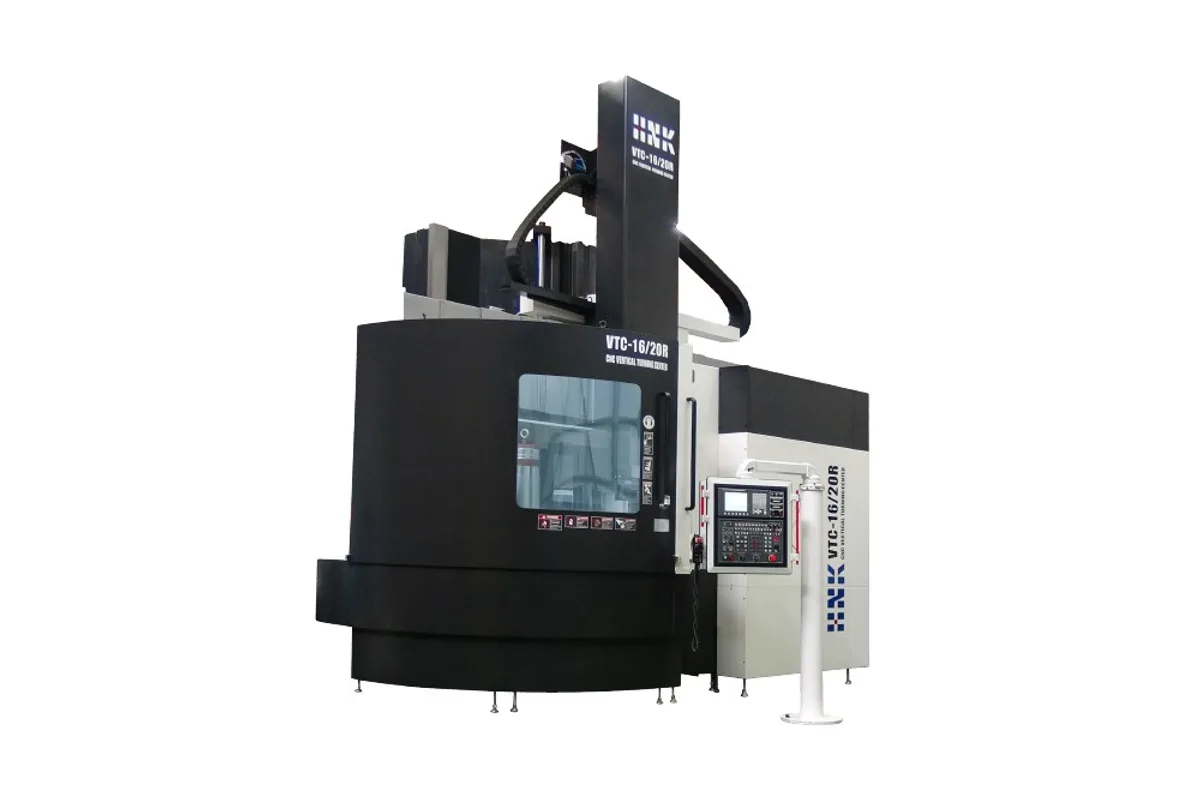

HNK VTC-16/20R
Image: en.hnkkorea.com, HNK
Key Specifications
table diameter
max swing cutting diameter
max turning height
table speed turning 2 steps
max table load
c axis table speed
How much does the HNK VTC-16/20R cost?
Price estimate
We do not have a price for the HNK VTC-16/20R that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Like its smaller R sibling, the HNK VTC-16/20R is the Fanuc 0i-T machine in its size class. It has a 1,600 mm (63.0 in) table and 2,000 mm (78.7 in) of swing, the same as the VTC-16/20, but the control row reads Fanuc 0i-T with Fanuc 31i in braces, and Siemens 840D is absent.
The mechanical differences from the VTC-16/20 are small and all point the same way. Table load is 8,000 kg (17,637 lb), not 10,000 kg (22,046 lb) as on the VTC-16/20. Turning height is 1,600 mm (63.0 in), a little under the 1,660 mm (65.4 in) of the VTC-16/20. X travel begins at -100 mm, so the range is -100 to +1,170 mm (-3.9 to +46.1 in). The milling spindle is limited to about 2,000 rpm.
What stays the same is the power. The table motor is A.C 37/45 kW (49.6/60.3 hp) and the milling motor A.C 15/18.5 kW (20.1/24.8 hp), both cont/30min, with an ISO 50 taper. Table speed for turning is about 250 rpm in two steps. As a C-axis the table runs at 0 to 3 rpm, slightly faster than the 0 to 2.5 rpm of the VTC-16/20, and indexes at 0.001 degree.
The cross rail moves 250 mm (9.8 in) x 3steps, Z travel is 900 mm (35.4 in) and the ram is 240 x 240 mm (9.4 x 9.4 in).
Full Specifications
| Parameter | Value |
|---|---|
| Table Diameter | 1,600 mm (63.0 in) |
| Max Swing Cutting Diameter | 2,000 mm (78.7 in) |
| Max Turning Height | 1,600 mm (63.0 in) |
| Table Speed Turning 2 Steps | Max. ~250 rpm |
| Max Table Load | 8,000 kg (17,637 lb) |
| C Axis Table Speed | 0 ~ 3 rpm |
| C Axis Indexing | 0.001˚ |
| Table Drive Motor | A.C 37/45 kW (49.6/60.3 hp) (cont/30min) |
| X Axis Travel | -100 ~ +1,170 mm (-3.9 ~ +46.1 in) |
| Z Axis Travel | 900 mm (35.4 in) |
| Milling Spindle Speed | Max.~2,000 rpm |
| Milling Spindle Motor | A.C 15/18.5 kW (20.1/24.8 hp) (cont/30min) |
| Milling Spindle Taper | ISO 50 |
| Ram Size | 240 x 240 mm (9.4 x 9.4 in) |
| Tool Shank Size | 40 x 40 mm (1.6 x 1.6 in) |
| Cross Rail Vertical Travel | 250 mm (9.8 in) x 3steps |
| CNC Control | Fanuc 0i-T {Fanuc 31i} |
Specifications sourced from en.hnkkorea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Fanuc 0i-T control listed, with Fanuc 31i in braces
- Full A.C 37/45 kW (49.6/60.3 hp) table motor, unlike the VTC-12/16R
- 1,600 mm (63.0 in) turning height on a rail that moves 250 mm (9.8 in) x 3steps
- C-axis table speed of 0 to 3 rpm
Limitations
- 8,000 kg (17,637 lb) table load, against 10,000 kg (22,046 lb) on the VTC-16/20
- Milling spindle limited to about 2,000 rpm
- X overtravel past centre is 100 mm
- No Siemens control in this model's row
Best For
Frequently Asked Questions
01
The table gives one clear reason: the control. The VTC-16/20R lists Fanuc 0i-T {Fanuc 31i}, the VTC-16/20 lists Fanuc 31i-B, Siemens 840D. In exchange the R model carries 8,000 kg (17,637 lb) where the VTC-16/20 carries 10,000 kg (22,046 lb), and it mills at about 2,000 rpm where the VTC-16/20 reaches about 2,500 rpm.
02
Up to 2,000 mm (78.7 in) in swing and cutting diameter, 1,600 mm (63.0 in) in turning height and 8,000 kg (17,637 lb) on the 1,600 mm (63.0 in) table.
03
Not in motor rating. Table drive is A.C 37/45 kW (49.6/60.3 hp) and the milling spindle motor A.C 15/18.5 kW (20.1/24.8 hp), the same as the VTC-16/20F. The lower figures are table load and milling speed.
04
100 mm. HNK lists the horizontal travel of the ram head as -100 to +1,170 mm (-3.9 to +46.1 in). If a boring or facing operation has to run further across the centre line, compare the VTC-16/20, which starts at -200 mm.
