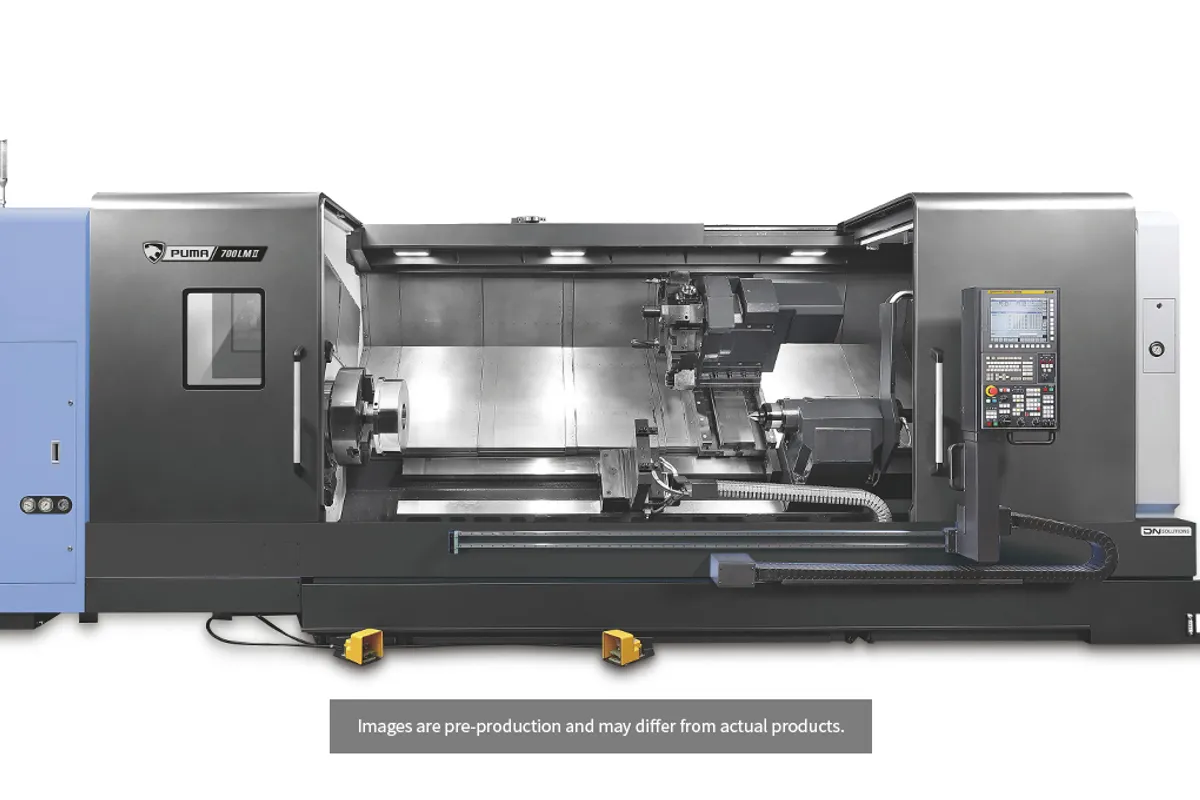

DN Solutions PUMA 800 XLY II
Image: dn-solutions.com, DN Solutions
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Power
Max Turn Length
How much does the DN Solutions PUMA 800 XLY II cost?
Estimated price range
Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.
Overview
The DN Solutions PUMA 800 XLY II combines the largest chuck and the longest bed among its Y-axis siblings: a 32 in chuck, 5,050 mm (199 in) of maximum turning length and a Y-axis turret with live tools. The spindle turns at up to 750 rpm with 55 kW (74 hp) and 8,076 N·m (5,957 ft-lb). Maximum turning diameter is 750 mm (30 in).
It can be read as two steps from machines beside it in the table. Against the PUMA 800 LY II the step is length: that model turns 3,250 mm (128 in) on 3,300 mm (130 in) of Z travel and weighs 23,000 kg (50,706 lb), while this one has 5,100 mm (201 in) of Z travel and weighs 26,000 kg (57,320 lb). Against the PUMA 700 XLY II the step is the chuck: 32 in and 750 rpm here, 24 in and 1,500 rpm there, on the same bed.
A slow spindle and faster live tools suit the work this machine is built around. Large tubes, rolls and columns are turned at low rpm, where the torque figure matters and the 750 rpm ceiling does not. Their flanges, ports and keyways are then cut by live tools at up to 3,000 rpm, using 200 mm (8 in) of Y travel and 400 mm (16 in) of X travel. X travel is more than half the 750 mm (30 in) turning diameter, so the turret reaches the axis of the part.
Siting takes planning. The machine is 9,904 mm (390 in) long, 2,955 mm (116 in) wide and 2,855 mm (112 in) high. Rapids are 12 m/min (472 ipm) in X and 10 m/min (394 ipm) in Z, and the turret has 12 stations. DN Solutions cites a spindle through hole of up to Ø375 mm in the series and presents it as a pipe solution, but neither a bore nor a maximum part weight is listed for this model, and the 32 in chuck size is larger than the 750 mm (30 in) turning diameter. All three points should be cleared up in the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 32 in |
| Max Turning Diameter | 750 mm (30 in) |
| Max Turning Length | 5,050 mm (199 in) |
| Rapid Traverse X | 12 m/min (472 ipm) |
| Rapid Traverse Z | 10 m/min (394 ipm) |
| X-Axis Travel | 400 mm (16 in) |
| Y-Axis Travel | 200 mm (8 in) |
| Z-Axis Travel | 5,100 mm (201 in) |
| Max Spindle Speed | 750 rpm |
| Spindle Motor Power | 55 kW (74 hp) |
| Spindle Torque | 8,076 N·m (5,957 ft-lb) |
| Turret Stations | 12 |
| Live Tool Speed | 3,000 rpm |
| Floor Space Required | 9,904 × 2,955 × 2,855 mm (390 × 116 × 112 in) |
| Machine Weight | 26,000 kg (57,320 lb) |
Specifications sourced from dn-solutions.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 32 in chuck on a bed with 5,100 mm (201 in) of Z travel
- 5,050 mm (199 in) of maximum turning length, against 3,250 mm (128 in) on the PUMA 800 LY II
- Live tools to 3,000 rpm with 200 mm (8 in) of Y travel for off-centre features on very long parts
- 8,076 N·m (5,957 ft-lb) of torque from a 55 kW (74 hp) spindle
- X travel of 400 mm (16 in) reaches the centre of a 750 mm (30 in) part
Limitations
- 750 rpm maximum spindle speed, half that of the PUMA 700 XLY II with its 24 in chuck
- Listed turning diameter of 750 mm (30 in) is smaller than the nominal 32 in chuck
- 9,904 mm (390 in) long and 26,000 kg (57,320 lb): building, crane and foundation must be planned around it
- Z rapid is 10 m/min (394 ipm) across 5,100 mm (201 in) of travel
- No bore, steady rest, tailstock or workpiece weight figures in the table
Best For
Frequently Asked Questions
01
The chuck and the speed. The PUMA 800 XLY II has a 32 in chuck and a 750 rpm spindle. The PUMA 700 XLY II has a 24 in chuck and 1,500 rpm. Both list 5,050 mm (199 in) of turning length, 750 mm (30 in) of turning diameter, 55 kW (74 hp), 8,076 N·m (5,957 ft-lb), 200 mm (8 in) of Y travel and 26,000 kg (57,320 lb).
02
The machine alone is 9,904 mm (390 in) long, 2,955 mm (116 in) wide and 2,855 mm (112 in) high and weighs 26,000 kg (57,320 lb). On top of that comes room to bring in a part up to 5,050 mm (199 in) long by crane, and space for chip handling and service. The table does not give those clearances.
03
DN Solutions presents the series as a machining solution for a wide range of pipes and gives Ø375 mm as the maximum spindle through hole. That figure is for the series. The table for this model shows a 32 in chuck and no bore, so get the through-hole diameter for the PUMA 800 XLY II itself before planning pipe that passes into the spindle.
04
The two speeds are separate rows. The main spindle is limited to 750 rpm, which is for turning large diameters. The live tools run to 3,000 rpm and move through 200 mm (8 in) of Y travel, so drilling and milling speeds do not depend on the main spindle limit. No driven-tool power is listed.
