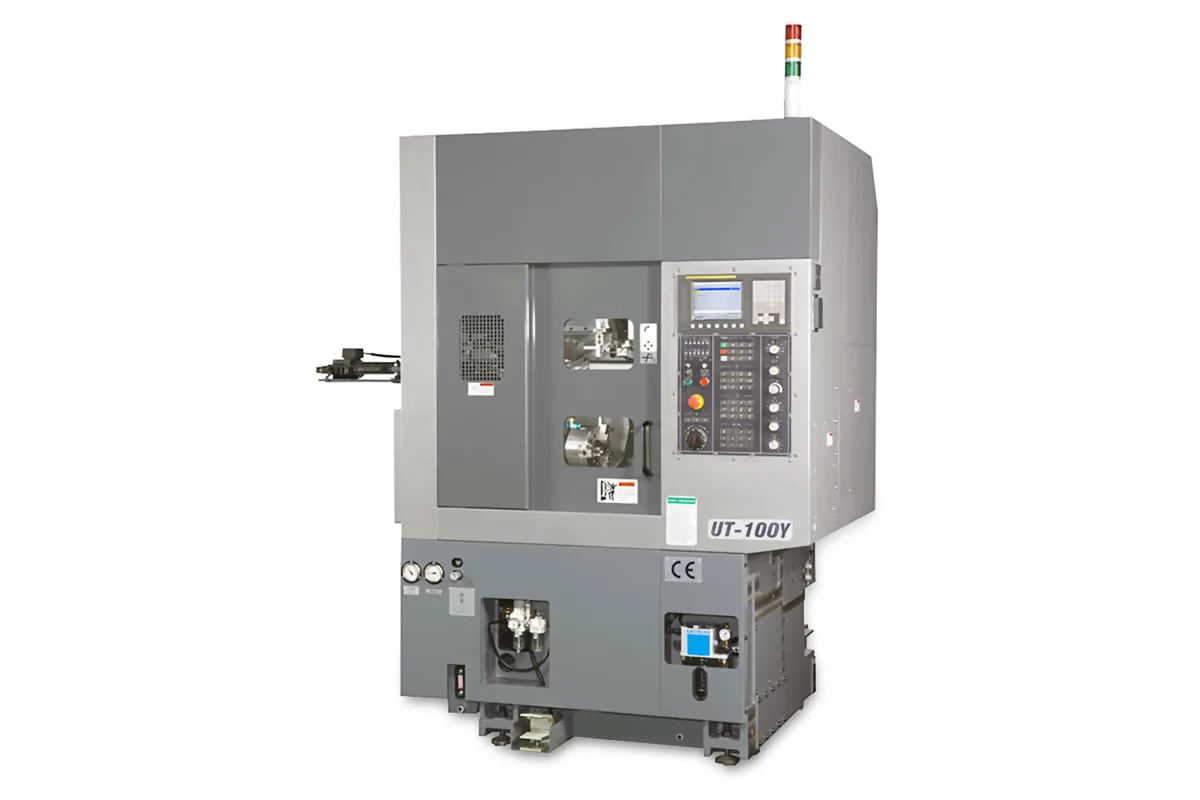

Accuway UT-100Y
Image: accuway.com.tw, Accuway
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
control
swing over bed
swing over saddle
How much does the Accuway UT-100Y cost?
Price estimate
We do not have a price for the Accuway UT-100Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A Y axis on a 6 in loader lathe: the Accuway UT-100Y gives small automated parts ±25 mm (±1.0 in) of off-centre reach. It keeps the built-in loader of the UT-100 line and the 6,000 rpm rotary tools of the UT-100M.
The Y slide changes the proportions of the machine more than the stroke suggests. X travel shrinks to 80 mm (3.1 in) and Z to 220 mm (8.7 in). Swing over bed grows to 450 mm (17.7 in). The enclosure becomes 2.4 x 2 x 2.53 m (94.5 x 78.7 x 99.6 in) and the weight 2,300 kg (5,071 lb), so the cell no longer fits the 1.7 m length of the UT-100M.
Turning diameter is 110 mm (4.3 in) and turning length 170 mm (6.7 in). The loader still takes material of 10~60 mm (0.4~2.4 in) in diameter, and its vertical stroke is longer here, 660 mm (26.0 in), presumably to clear the taller Y-axis structure; its traverse stroke is 360 mm (14.2 in). Both loader axes move at 84 m/min (3,307 in/min).
Y rapid traverse is 10 m/min (394 in/min). The rotary tool driver has 3.7/5.5 kW (5.0/7.4 hp), and tool shanks are 25 mm (1.0 in) square or 40 mm (1.6 in) round in a 12-station turret. Typical work would be a small valve spool with a flat, a connector with an offset port, or a fitting whose hex is milled instead of bought as hex bar.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | FANUC 0i-T |
| Swing Over Bed | 450 mm (17.7 in) |
| Swing Over Saddle | 330 mm (13.0 in) |
| Max Turning Diameter | 110 mm (4.3 in) |
| Max Turning Length | 170 mm (6.7 in) |
| Guideway Type | Box |
| Spindle Nose | A2-5 |
| Chuck Size | 6 in |
| Bar Capacity | 30 mm (1.2 in) |
| Max Spindle Speed | 6,000 rpm |
| Spindle Motor Power | Cont. / 30min: 5.5/7.5 kW (7.4/10.1 hp) |
| X Axis Travel | 80 mm (3.1 in) |
| Z Axis Travel | 220 mm (8.7 in) |
| Y Axis Travel | ±25 mm (±1.0 in) |
| Rapid Traverse X | 12 m/min (472 in/min) |
| Rapid Traverse Z | 18 m/min (709 in/min) |
| Rapid Traverse Y | 10 m/min (394 in/min) |
| Turret Stations | 12 |
| Square Tool Shank | 25 mm (1.0 in) |
| Round Tool Shank | 40 mm (1.6 in) |
| Rotary Tool Speed | 6,000 rpm |
| Rotary Tool Driver Power | 3.7/5.5 kW (5.0/7.4 hp) |
| Machine Dimensions | L x W x H: 2.4 x 2 x 2.53 m (94.5 x 78.7 x 99.6 in) |
| Machine Weight | 2,300 kg (5,071 lb) |
| Loader Material Diameter | 10~60 mm (0.4~2.4 in) |
| Loader Material Length | 20~100 mm (0.8~3.9 in) |
| Loader Material Weight | One side: 0.5/1 kg (1/2 lb) |
| Loader Z Stroke | 360 mm (14.2 in) |
| Loader Z Rapid Traverse | 84 m/min (3,307 in/min) |
| Loader Y Stroke | 660 mm (26.0 in) |
| Loader Y Rapid Traverse | 84 m/min (3,307 in/min) |
Specifications sourced from accuway.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Y-axis travel of ±25 mm (±1.0 in) on a loader lathe
- Rotary tools at 6,000 rpm with 3.7/5.5 kW (5.0/7.4 hp)
- Integrated loader with a 660 mm (26.0 in) vertical stroke
- 450 mm (17.7 in) swing over bed
- 12 stations for 25 mm (1.0 in) square shank tools
Limitations
- X travel of only 80 mm (3.1 in)
- Turning diameter of 110 mm (4.3 in)
- Y rapid traverse of 10 m/min (394 in/min)
- 2.53 m high and 2,300 kg (5,071 lb), larger than the UT-100M
Best For
Frequently Asked Questions
01
±25 mm (±1.0 in), at a rapid traverse of 10 m/min (394 in/min). X travel is 80 mm (3.1 in) at 12 m/min (472 in/min) and Z travel 220 mm (8.7 in) at 18 m/min (709 in/min).
02
The UT-100M has no Y axis, 120 mm (4.7 in) of X travel and weighs 1,900 kg (4,189 lb). The UT-100Y has ±25 mm (±1.0 in) of Y, 80 mm (3.1 in) of X travel and weighs 2,300 kg (5,071 lb). Both run rotary tools at 6,000 rpm.
03
Diameter 10~60 mm (0.4~2.4 in) and length 20~100 mm (0.8~3.9 in), with a weight row of One side: 0.5/1 kg (1/2 lb). The loader's Z stroke is 360 mm (14.2 in) and its Y stroke 660 mm (26.0 in).
04
Accuway lists the UT-100EY separately, under single turret, single spindle lathes. Its table has the same lathe figures, including the 2,300 kg (5,071 lb) weight, but no loader rows.
