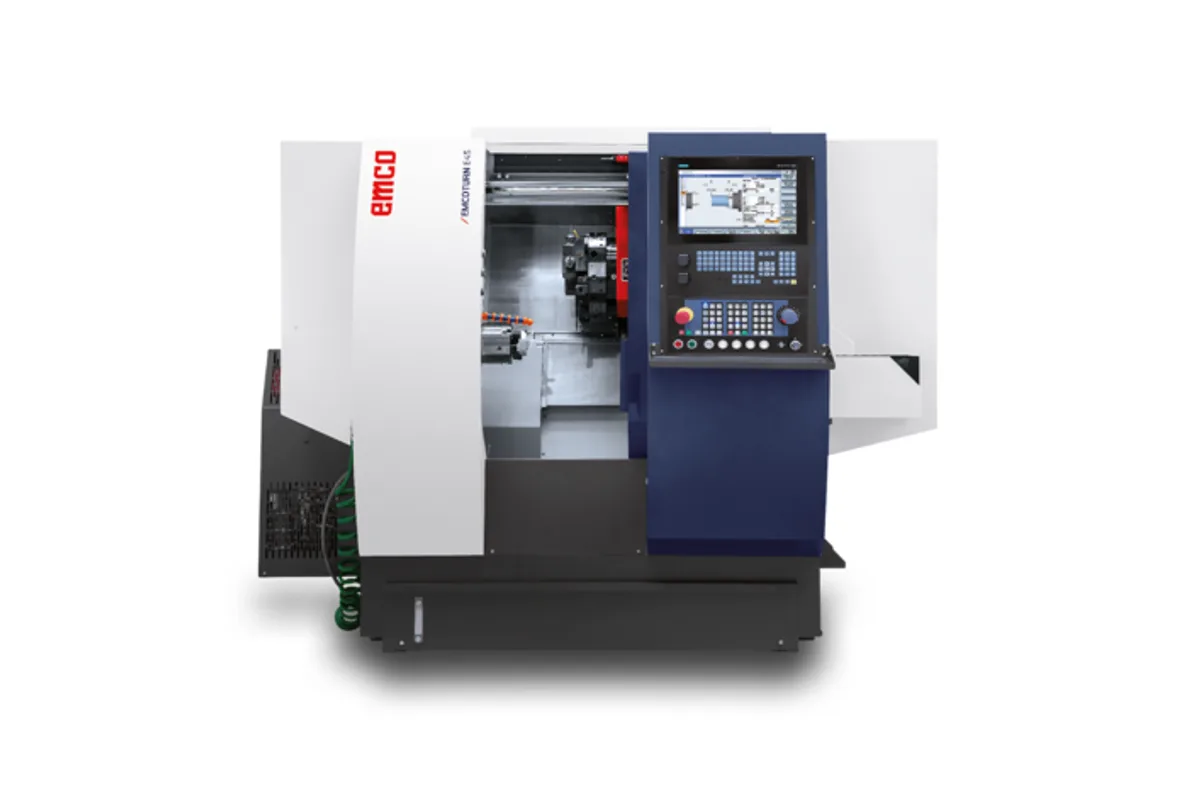

Emco Emcoturn E45
Image: emco-world.com, Emco
Key Specifications
Max Spindle
Spindle Power
x axis travel
y axis travel
z axis travel
bar capacity
How much does the Emco Emcoturn E45 cost?
Price estimate
We do not have a price for the Emco Emcoturn E45 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Emco Emcoturn E45 is a universal turning centre for bar up to 45 (51) mm and chuck parts within a 220/300 mm turning diameter. What sets it apart inside the Emcoturn E range is how many ways it can be configured. Emco lists a plain version for stationary tools with tailstock, an MY version with driven tools, C axis and Y axis, and SM and SMY versions that swap the tailstock for a counter spindle.
That choice matters more than any single figure. With the tailstock, which travels 510 mm (20.1 in) and takes an MK4 centre, the machine is a shaft lathe with 670 mm (26.4 in) between centres. With the counter spindle it becomes a done-in-one machine for parts cut from bar. The counter spindle runs to 6,300 rpm on an A2-4 nose, one size below the A2-5 main spindle, and its torque row reads 42/43 Nm.
Main spindle power is 13 kW (17.4 hp). Speed and torque are each given as a pair, 6300 (5000) rpm and 78 (100) Nm; the bracketed values go with the larger 51 mm bar passage, so the bigger bore trades top speed for torque.
Y travel is +40/-30 mm, short but enough to mill a flat or drill off centre without a special holder. The 12-station turret is listed as VDI 25/30 with 6 driven positions rated 5,000 rpm, 4 kW (5.4 hp) and 16 Nm (11.8 lb-ft). At 4,000 kg (8,818 lb) and 2,575 x 1,760 x 1,960 mm (101.4 x 69.3 x 77.2 in) the machine is still a compact one.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 160 mm (6.3 in) |
| Y Axis Travel | +40/-30 mm |
| Z Axis Travel | 510 mm (20.1 in) |
| Bar Capacity | 45 (51) mm |
| Max Turning Diameter | 220/300 mm |
| Swing Over Bed | 430 mm (16.9 in) |
| Distance Between Centers | 670 mm (26.4 in) |
| Rapid Traverse Xyz | 24/10/30 m/min |
| Max Spindle Speed | 6300 (5000) rpm |
| Spindle Nose | A2-5 |
| Spindle Motor Power | 13 kW (17.4 hp) |
| Spindle Torque | 78 (100) Nm |
| Counter Spindle Speed | 6,300 rpm |
| Counter Spindle Nose | A2-4 |
| Counter Spindle Power | 10/7.5 kW |
| Counter Spindle Torque | 42/43 Nm |
| Tailstock Taper | MK4 |
| Tailstock Travel | 510 mm (20.1 in) |
| Turret Tooling | VDI 25/30 |
| Turret Stations | 12 |
| Driven Tool Stations | 6 |
| Driven Tool Speed | 5,000 rpm |
| Driven Tool Power | 4 kW (5.4 hp) |
| Driven Tool Torque | 16 Nm (11.8 lb-ft) |
| Machine Dimensions | 2,575 x 1,760 x 1,960 mm (101.4 x 69.3 x 77.2 in) |
| Machine Weight | 4,000 kg (8,818 lb) |
Specifications sourced from emco-world.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Offered in tailstock, MY, SM and SMY versions, so one base machine covers shaft work and counter-spindle complete machining
- Y axis with +40/-30 mm of travel on the MY and SMY versions
- Counter spindle runs to 6,300 rpm on an A2-4 nose
- Rapids listed as 24/10/30 m/min in X/Y/Z
- Siemens, Fanuc or Heidenhain control on every version
Limitations
- Only 6 of the 12 turret stations are driven, with 4 kW (5.4 hp) and 16 Nm (11.8 lb-ft)
- Counter spindle and tailstock are alternatives: the SM and SMY versions are listed without a tailstock
- The bracketed 5000 rpm main spindle speed applies when the larger bar passage is chosen
- Y travel of +40/-30 mm limits off-centre milling to small features
Best For
Frequently Asked Questions
01
Emco lists the Emcoturn E45 for stationary tools with tailstock, the E45 MY with driven tools, C axis, Y axis and tailstock, the E45 SM with counter spindle, driven tools and C axis, and the E45 SMY, which adds the Y axis to the SM. All are offered with Siemens, Fanuc or Heidenhain controls.
02
The bar diameter row reads 45 (51) mm: 45 mm as the base passage and 51 mm as the larger one. The main spindle speed and torque rows change with it, 6300 (5000) rpm and 78 (100) Nm, so check which bore a quoted machine has.
03
The driven stations are rated 5,000 rpm, 4 kW (5.4 hp) and 16 Nm (11.8 lb-ft), and 6 of the 12 stations can carry them. That is sized for drilling, tapping and light milling on parts of this diameter.
04
The Emcoturn E65 is the next size up: 22 kW (29.5 hp) on an A2-6 nose, 610 mm (24.0 in) of Z travel and 12 driven stations. The E45 has 13 kW (17.4 hp), 510 mm (20.1 in) of Z and 6 driven stations, in a machine that weighs 4,000 kg (8,818 lb).
