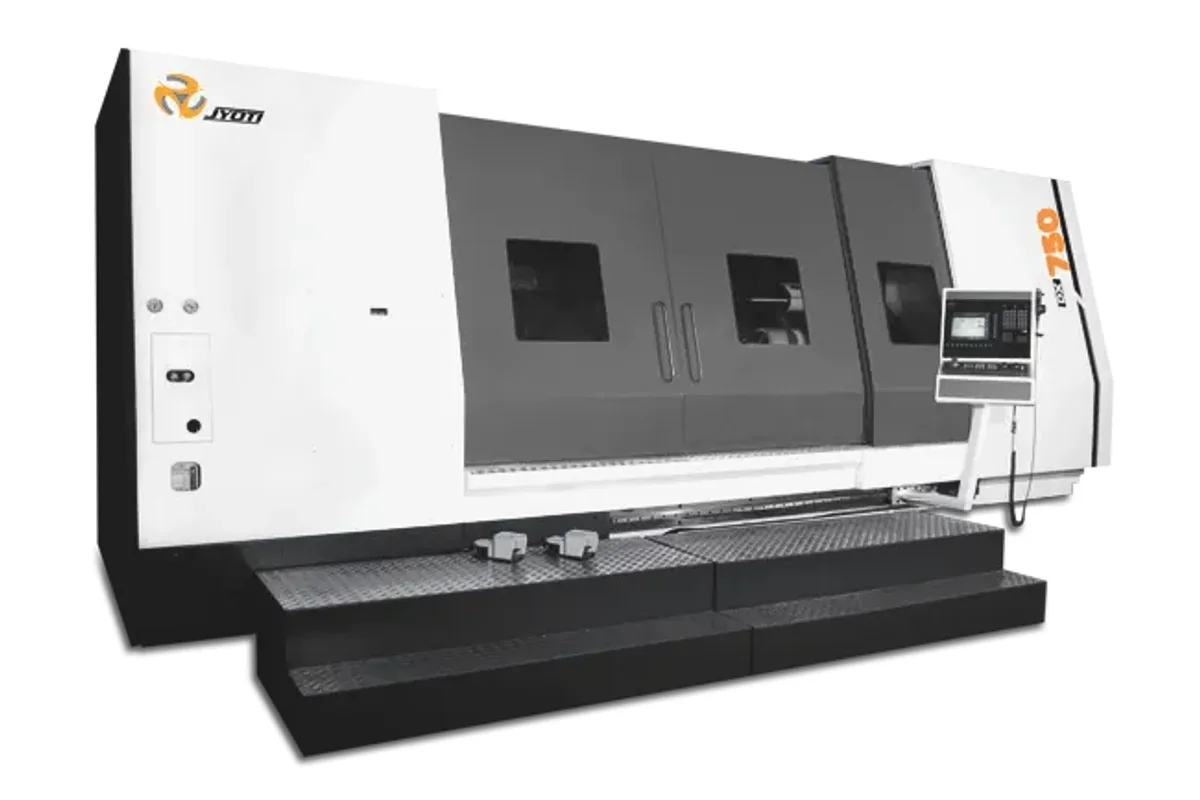

Huron DX 750-3000 B
Image: huron.fr, Huron
Key Specifications
Max Turn Length
Accuracy
Repeatability
swing over bed
standard turning diameter
max turning diameter
How much does the Huron DX 750-3000 B cost?
Price estimate
We do not have a price for the Huron DX 750-3000 B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Huron DX 750-3000 B is the largest turning centre Huron lists. It combines 3,000 mm (118.1 in) of turning length, a 920 mm turning diameter and the A2-15 spindle with its 180 mm bore, in a machine of 24,000 kg (52,910 lb).
Work of this size is specialised. Think of long forged shafts for ships and generators, large rolls, heavy tubulars and gun-barrel class hollow forgings, parts that occupy a machine for hours. The Siemens motor provides 45/30 kW and the Fanuc motor 37/30 kW, with a 50-1,200 rpm range.
The turret carries 12 tools of 32 x 32 mm section and boring bars up to 60 mm. A tailstock with a 170 mm quill and 200 mm of stroke applies up to 1,500 kgf. Z travel is 3,100 mm and X travel 480 mm. Rapid feed is given as 24/20 m/min.
Huron's stated accuracy is 0.01/0.02 mm for positioning and 0.005/0.008 mm for repeatability, X and Z. As with every C-type spindle in the series, the bar capacity row says 90 mm, which is far below the bore and should be clarified. The machine is 9,120 mm long, 4,420 mm wide and 2,900 mm high. Foundations, crane capacity and chip handling need planning on that scale.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | 1,050 mm (41.3 in) |
| Standard Turning Diameter | 780 mm (30.7 in) |
| Max Turning Diameter | 920 mm (36.2 in) |
| Max Turning Length | 3,000 mm (118.1 in) |
| X Axis Travel | 480 mm (18.9 in) |
| Z Axis Travel | 3,100 mm (122.0 in) |
| Rapid Traverse Xz | 24/20 m/min |
| Spindle Power Fanuc | 37/30 kW (49.6/40.2 hp) |
| Spindle Power Siemens | 45/30 kW (60.3/40.2 hp) |
| Spindle Speed Range | 50-1,200 rpm |
| Spindle Bore | 180 mm (7.1 in) |
| Spindle Nose | A2-15 |
| Bar Capacity | 90 mm (3.5 in) |
| Turret Stations | 12 |
| Max Boring Bar Diameter | 60 mm (2.4 in) |
| Tool Shank Size | 32 x 32 mm (1.3 x 1.3 in) |
| Tailstock Quill Diameter | 170 mm (6.7 in) |
| Tailstock Quill Stroke | 200 mm (7.9 in) |
| Tailstock Thrust | 1,500 kgf (max.) |
| Positioning Accuracy | 0.01/0.02 mm (0.0004/0.0008 in) (X / Z axis) |
| Repeatability | 0.005/0.008 mm (0.0002/0.0003 in) (X / Z axis) |
| Machine Weight | 24,000 kg (52,910 lb) |
| Machine Length | 9,120 mm (359.1 in) |
| Machine Width | 4,420 mm (174.0 in) |
| Machine Height | 2,900 mm (114.2 in) |
Specifications sourced from huron.fr — verified 2026-10-04
Strengths & Limitations
Strengths
- 3,000 mm turning length with a 180 mm spindle bore
- 45/30 kW (Siemens) or 37/30 kW (Fanuc)
- 920 mm turning diameter and 480 mm of X travel
- 12 tool stations with 60 mm boring bars
- Tailstock thrust up to 1,500 kgf
Limitations
- Top speed of 1,200 rpm on the A2-15 spindle
- 24,000 kg machine needing 9,120 x 4,420 mm
- Bar capacity is printed as 90 mm
- Z repeatability of 0.008 mm over the long bed
Best For
Frequently Asked Questions
01
It turns up to 3,000 mm in length and 920 mm in diameter. The machine is about 9,120 mm long, 4,420 mm wide and 2,900 mm high and weighs about 24,000 kg (52,910 lb).
02
A2-15 nose with a 180 mm bore and a 50-1,200 rpm range. Power is 37/30 kW with the Fanuc motor and 45/30 kW with the Siemens motor.
03
The DX 750-3000 A has the A2-11 spindle with a 110 mm bore, 26/22 kW on Fanuc and a 1,500 rpm top speed. The DX 750-3000 B has the 180 mm bore, 37/30 kW on Fanuc and 1,200 rpm. Bed, turret and tailstock are the same.
04
Positioning of 0.01/0.02 mm and repeatability of 0.005/0.008 mm on the X and Z axes. Values are given to the VDI/DGQ method named in the table heading.
