Accuway Vertical Machining Centers (VMC)

Accuway UM-85

Q: How much does the Accuway UM-85 cost?

The price estimate for the Accuway UM-85 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/accuway-um-85#price; the request is passed to Accuway or an authorised dealer.

Specs verified 2026-10-04 · accuway.com.tw Updated 2026-10-04

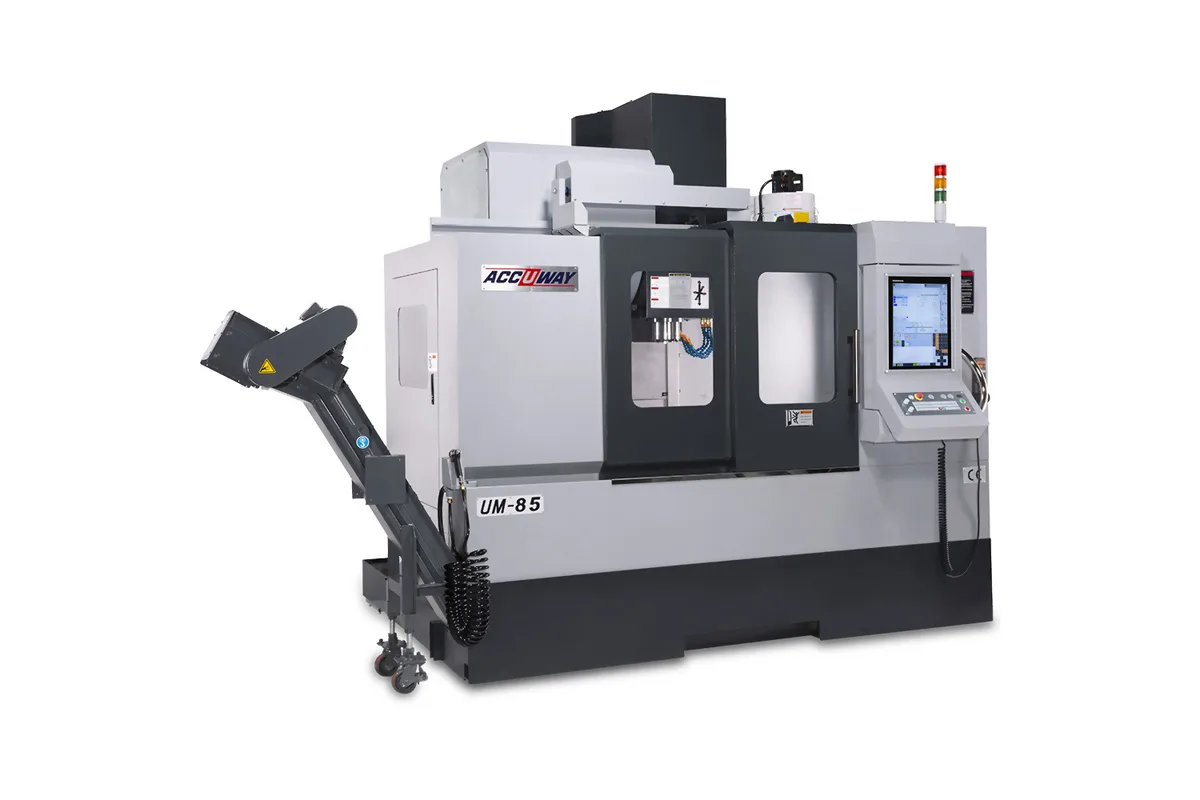

Image: accuway.com.tw, Accuway

Key Specifications

Max Spindle

10,000 (12,000) rpm

Spindle Taper

BT40

Tool Capacity

24 (30/32)

Table Size

1,100 x 600 mm (43.3 x 23.6 in)

Spindle Power

Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp)

control

FANUC 0i-M

How much does the Accuway UM-85 cost?

Price estimate

Uncertain

We do not have a price for the Accuway UM-85 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Accuway UM-85 is the mid-size frame of the BT40 line, with travels of 850 x 550 x 550 mm (33.5 x 21.7 x 21.7 in) and a 1,100 x 600 mm (43.3 x 23.6 in) table rated for 1,000 kg (2,205 lb). From this size up the casting is heavier, 7,000 kg (15,432 lb), and the ball screws step up to 45/45/45 mm (1.8/1.8/1.8 in).

It is also the first size where the spec table offers a second motor. The spindle motor row reads 7.5/11 kW (10.1/14.8 hp) with 15/18.5 kW (20.1/24.8 hp) in brackets, continuous and 30 min ratings in both cases. Speed is 10,000 rpm with 12,000 rpm bracketed, on a drive listed as Belt (Direct). Which pairing a given machine has is a question for the quotation.

The magazine follows the same pattern. Capacity is 24, with 30/32 bracketed, changed by an arm, and the tool limits are 75 mm (3.0 in) in diameter, 300 mm (11.8 in) in length and 7 kg (15 lb).

All three axes rapid at 30 m/min (1,181 in/min), a step below the 36 m/min (1,417 in/min) X and Y of the UM-60. Guideways use ball bearings as listed; roller type guide way appears among the options, and the UM-85H is the version Accuway lists with roller guideways and a direct-drive spindle. The control is a FANUC 0i-M with AICC II, and the AI contour control row prints AICC I (AICC II).

Full Specifications

Parameter	Value
CNC Control	FANUC 0i-M
Max Spindle Speed	10,000 (12,000) rpm
Spindle Taper	BT40
Spindle Bearing Inner Diameter	70 mm (2.8 in)
Spindle Drive	Belt (Direct)
X Axis Travel	850 mm (33.5 in)
Y Axis Travel	550 mm (21.7 in)
Z Axis Travel	550 mm (21.7 in)
Distance Spindle Nose to Table	150~700 mm (5.9~27.6 in)
Table Size	1,100 x 600 mm (43.3 x 23.6 in)
T-Slots	No. of T-slot x width x pitch: 5 x 18 x 100 mm
Max Table Load	1,000 kg (2,205 lb)
Rapid Traverse X	30 m/min (1,181 in/min)
Rapid Traverse Y	30 m/min (1,181 in/min)
Rapid Traverse Z	30 m/min (1,181 in/min)
Cutting Feed Rate	12 m/min (472 in/min)
Ball Screw Diameter Xyz	X/Y/Z: 45/45/45 mm (1.8/1.8/1.8 in)
Guideway Bearing Type	Ball
Tool Capacity	24 (30/32)
Max Tool Weight	7 kg (15 lb)
Max Tool Diameter (full magazine)	75 mm (3.0 in)
Max Tool Diameter Without Adjacent Tools	150 mm (5.9 in)
Tool Change Method	Arm type
Max Tool Length	300 mm (11.8 in)
Ai Contour Control	AICC I (AICC II)
Spindle Motor Power	Cont. / 30min: 7.5/11 kW (10.1/14.8 hp), in brackets 15/18.5 kW (20.1/24.8 hp)
Feed Motor Xyz	X/Y/Z: 3/3/4 kW (4.0/4.0/5.4 hp)
Coolant Pump Motor	50Hz/60Hz: 0.53+0.85/0.75+1.27 kW (0.7+1.1/1.0+1.7 hp)
Air Supply	5.5 kg/cm²
Machine Dimensions	L x W x H: 2.7 x 2.2 x 3 m (106.3 x 86.6 x 118.1 in)
Machine Weight	7,000 kg (15,432 lb)

Specifications sourced from accuway.com.tw — verified 2026-10-04

Strengths & Limitations

Strengths

Table load of 1,000 kg (2,205 lb) on a 1,100 x 600 mm (43.3 x 23.6 in) table
The table lists a 15/18.5 kW (20.1/24.8 hp) spindle motor in brackets beside the 7.5/11 kW (10.1/14.8 hp) rating
45/45/45 mm (1.8/1.8/1.8 in) ball screws on all three axes
Magazine capacity of 24, with 30/32 printed in brackets
Spindle oil cooling system and rigid tapping are standard accessories

Limitations

Rapids of 30 m/min (1,181 in/min) are slower than the 42 m/min (1,654 in/min) X and Y of the UM-85H
Ball-type guideways as listed; roller type guide way is an option
The bracketed motor, speed and magazine figures are not confirmed as standard by the table
Chain type chip conveyor with chip cart is an optional accessory

Best For

General job-shop milling on parts up to 850 mm long Fixture plates and mould bases within a 1,000 kg table load Steel work where the bracketed 15/18.5 kW motor is ordered 4th axis jobs using the optional interface and rotary table

Frequently Asked Questions

01 What are the travels of the Accuway UM-85?

850 mm (33.5 in) in X, 550 mm (21.7 in) in Y and 550 mm (21.7 in) in Z, with 150~700 mm (5.9~27.6 in) between spindle nose and table. The table is 1,100 x 600 mm (43.3 x 23.6 in) and takes 1,000 kg (2,205 lb).

02 What do the bracketed figures in the UM-85 table mean?

Accuway prints a second figure in brackets in several rows: 12,000 rpm beside 10,000 rpm, 15/18.5 kW beside 7.5/11 kW, 30/32 beside 24 in the magazine row and Direct beside Belt. The page does not label them. Spindle speed upgrading is on the options list, so treat the bracketed values as alternatives to confirm when ordering.

03 How does the UM-85 compare with the UM-85H?

Travels, table and weight are the same. The UM-85H lists a direct-drive spindle at 12,000 rpm, roller guideways and rapids of 42 m/min (1,654 in/min) in X and Y, where the UM-85 lists a belt drive at 10,000 rpm, ball guideways and 30 m/min (1,181 in/min).

04 What coolant and chip handling does the UM-85 include?

A 4-bar coolant system, cutter air blast and a spray gun are standard. A 20 bar coolant through spindle system, an oil-coolant skimmer, an oil mist collector and a chain type chip conveyor with chip cart are optional accessories. The coolant pump motor row reads 0.53+0.85/0.75+1.27 kW for 50Hz/60Hz.
