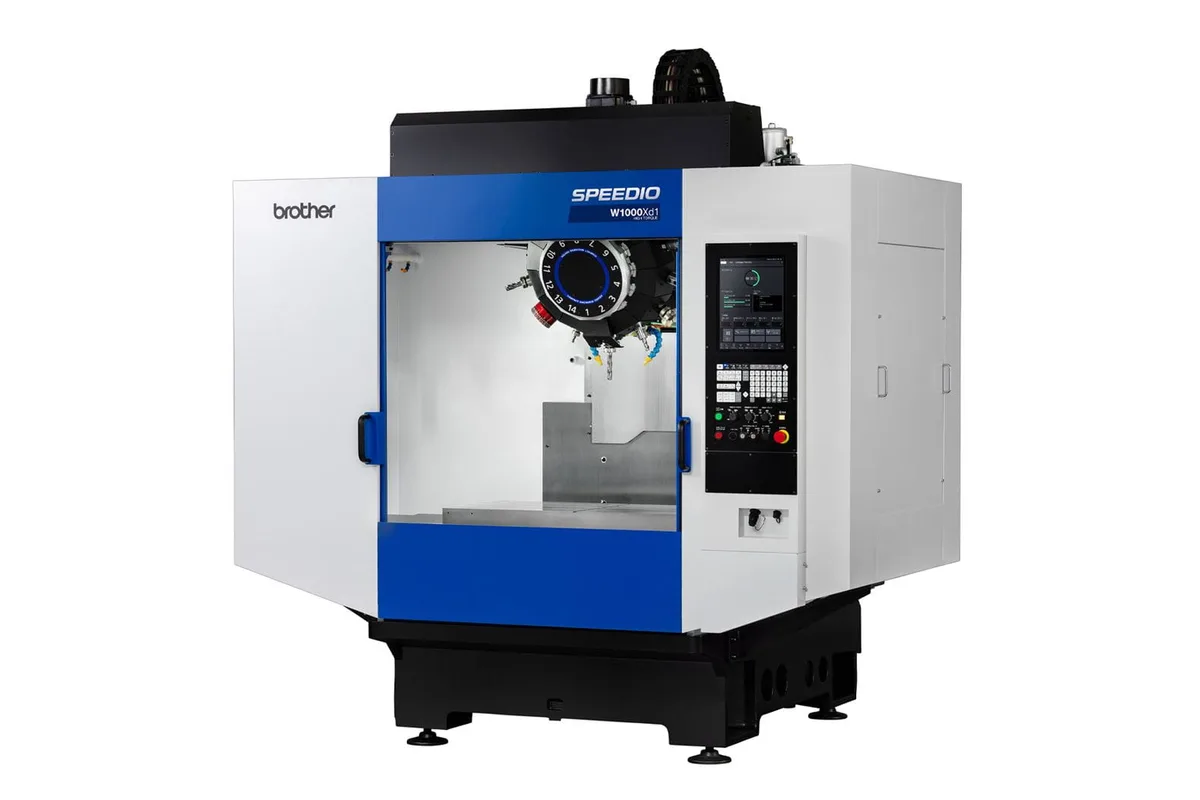

Brother Speedio W1000Xd1
Image: machinetool.global.brother, Brother
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Brother Speedio W1000Xd1 cost?
Estimated price range
Our best estimate for a vertical machining centers (vmc) in this class — not a quote from Brother. Configuration moves it a long way.
Overview
The Brother Speedio W1000Xd1 is a 1,000 mm (39.4 in) X-axis BT30 machining center on the CNC-D00 control, with 500 mm (19.7 in) of Y, 300 mm (11.8 in) of Z and a 1,100 x 500 mm (43.3 x 19.7 in) table. Brother has discontinued this model, so buyers will find it as a used machine.
One row sets it apart on paper: through-spindle coolant is offered at 1.5 MPa or at 7.0 MPa, both as options. The higher-pressure version is the one to look for if the work includes deep holes with small drills, where coolant pressure clears chips from the hole. On a used machine, confirm which pump, if any, was fitted, along with the dual-contact spindle option.
Against the SPEEDIO S1000X1, which shares its travels and table, the W1000Xd1 changes the control from CNC-C00 to CNC-D00, raises continuous spindle output from 6.7 kW to 7.0 kW, and shortens the tool change to 0.6 sec tool to tool and 1.2 sec chip to chip from 0.8 sec and 1.4 sec. The 10-minute rating stays at 10.1 kW. Spindle choices remain 10,000 rpm as standard, 16,000 rpm as an option and a high-torque 10,000 rpm option, with tapping to 6,000 rpm.
The magazine holds 14 or 21 tools of up to 110 mm (4.3 in) diameter, 250 mm (9.8 in) length and 3.0 kg (6.6 lb). Table load is 300 kg (661.3 lb), or 400 kg (881.8 lb) with the option, spread over a table long enough for two or three vises in a row. Rapids are 50 / 50 / 56 m/min (1,969 / 1,969 / 2,205 ipm).
The machine weighs 3,350 kg (7,386 lb), stands 2,553 mm (100.5 in) high and covers 2,410 x 2,443 mm (94.9 x 96.2 in). It takes a 200 to 230 V 3-phase supply and 45 L/min of air at 0.4 to 0.6 MPa.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | Brother CNC-D00 |
| X-Axis Travel | 1,000 mm (39.4 in) |
| Y-Axis Travel | 500 mm (19.7 in) |
| Z-Axis Travel | 300 mm (11.8 in) |
| Spindle Nose to Table | 180 - 480 mm (7.1 - 18.9 in) |
| Table Size | 1,100 x 500 mm (43.3 x 19.7 in) |
| Max Table Load | 300 kg (661.3 lb); 400 kg (881.8 lb) with option |
| Max Spindle Speed | 10,000 rpm (16,000 rpm optional) |
| Tapping Speed Max | 6,000 rpm |
| Spindle Taper | BT30 (7/24 taper No. 30) |
| Dual Contact Spindle | Optional |
| Coolant Through Spindle | 1.5 / 7.0 MPa Optional |
| Rapid Traverse Rate | 50 / 50 / 56 m/min (1,969 / 1,969 / 2,205 ipm) |
| Max Cutting Feedrate | 30,000 mm/min (1,181 ipm) |
| Tool Shank | MAS-BT30 |
| Pull Stud | MAS-P30T-2 |
| Tool Capacity | 14/21 tools |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Diameter (full magazine) | 110 mm (4.3 in) |
| Max Tool Weight | 3.0 kg (6.6 lb) per tool |
| Tool Selection | Random shortcut method |
| Tool Change Time | Tool To Tool : 0.6sec. Chip To Chip : 1.2sec. |
| Spindle Motor Power | 10.1 kW (10 min) / 7.0 kW continuous |
| Axis Feed Motor | X,Y : 1.0 Z : 2.0 kW |
| Power Supply | AC 200 to 230 V±10％, 3-phase, 50/60Hz±2% |
| Power Capacity | 10,000min-1 specifications : 9.5 10,000min-1 high-torque specifications(Optional) : 10.4 16,000min-1 specifications(Optional) : 9.5 kVA |
| Air Pressure | 0.4 - 0.6 MPa |
| Air Flow | 45 L/min |
| Machine Height | 2,553 mm (100.5 in) |
| Floor Space Required | 2,410 x 2,443 mm (94.9 x 96.2 in) |
| Machine Weight | 3,350 kg (7,386 lb) |
| Positioning Accuracy | 0.006 - 0.020 mm (0.00024 - 0.00079 in) |
| Repeatability | < 0.004 mm (0.00016 in) |
Specifications sourced from machinetool.global.brother — verified 2026-10-03
Strengths & Limitations
Strengths
- Optional through-spindle coolant at 1.5 MPa or 7.0 MPa for deep-hole drilling
- 0.6 sec tool to tool and 1.2 sec chip to chip, quicker than the 0.8 sec and 1.4 sec of the SPEEDIO S1000X1
- 1,100 x 500 mm (43.3 x 19.7 in) table with 1,000 mm (39.4 in) of X for several fixtures in a row
- Brother CNC-D00 control with 7.0 kW continuous and 10.1 kW 10-minute spindle ratings
- Repeatability under 0.004 mm (0.00016 in)
Limitations
- Discontinued, so every machine on offer is used and its options need checking
- Z travel is 300 mm (11.8 in); the Speedio W1000Xd2 offers 380 mm (15.0 in)
- Spindle speed stops at 16,000 rpm with the option; the standard spindle is 10,000 rpm
- Magazine sizes are 14 or 21 tools; the 28-tool option belongs to the Speedio W1000Xd2
Best For
Frequently Asked Questions
01
Coolant through the spindle is optional at either 1.5 MPa or 7.0 MPa. The 7.0 MPa version is the better match for deep holes and small drills. Because both are options, a used W1000Xd1 may have neither, so check the pump and the rotary union before purchase.
02
Travels and table are the same: 1,000 x 500 x 300 mm (39.4 x 19.7 x 11.8 in) and 1,100 x 500 mm (43.3 x 19.7 in). The SPEEDIO S1000X1 uses the CNC-C00 control, rates its spindle at 6.7 kW continuous, changes tools in 0.8 sec and weighs 3,300 kg (7,275 lb). The W1000Xd1 has the CNC-D00, 7.0 kW continuous and 0.6 sec.
03
The Speedio W1000Xd2 has 380 mm (15.0 in) of Z instead of 300 mm (11.8 in), a 12,000 rpm standard spindle with a 20,000 rpm option, a 14 / 21 / 28 tool magazine and a 500 kg (1,102 lb) optional table load. Travels in X and Y and the table size are unchanged.
04
A 200 to 230 V 3-phase supply at 50/60 Hz; power capacity is 9.5 kVA for the 10,000 and 16,000 rpm spindles and 10.4 kVA for the high-torque spindle. Air demand is 45 L/min at 0.4 to 0.6 MPa. Floor space is 2,410 x 2,443 mm (94.9 x 96.2 in), height 2,553 mm (100.5 in) and weight 3,350 kg (7,386 lb).

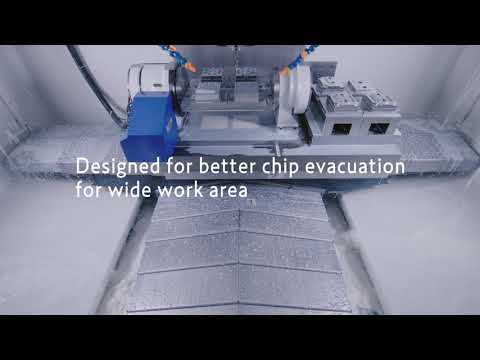

Videos
