DN Solutions PUMA 700 XL II

Est. $380,000 - $520,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

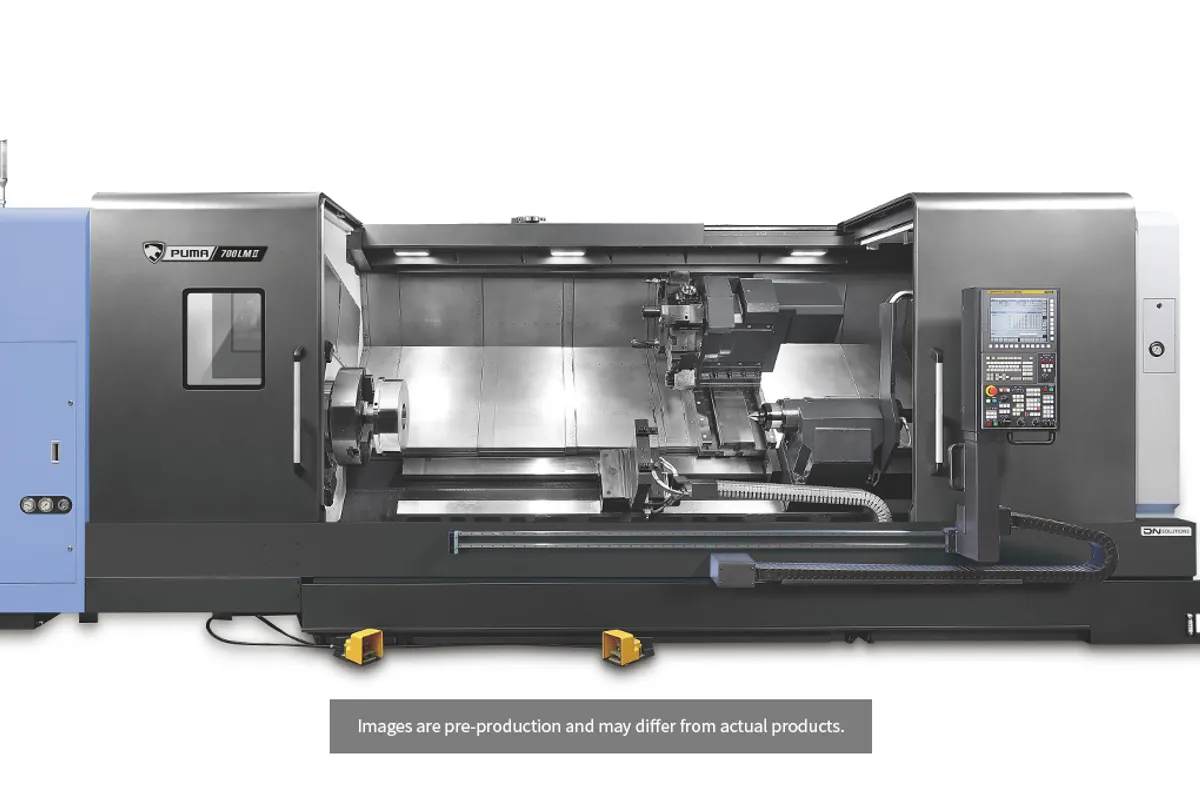

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

470 mm (19 in)

Z Travel

5,100 mm (201 in)

Max Spindle

1,500 rpm

Spindle Power

55 kW (74 hp)

Max Turn Length

5,050 mm (199 in)

chuck size

24 in

How much does the DN Solutions PUMA 700 XL II cost?

Estimated price range

Est.$380,000 - $520,000

Our best estimate for a cnc lathes / turning center in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions PUMA 700 XL II turns the largest envelope DN Solutions quotes for the series: 5,050 mm (199 in) of maximum turning length together with a 900 mm (35 in) maximum turning diameter. The series description gives 5 m and 900 mm as its maxima, and this model reaches both. It has a 24 in chuck and a spindle rated 55 kW (74 hp) and 8,076 N·m (5,957 ft-lb), with a 1,500 rpm top speed.

A part that fills that envelope is very heavy, and the table says nothing about how heavy it may be. Maximum workpiece weight, the tailstock and steady rests are all absent from this model's column. They are the figures that decide whether a given roll or shaft can be run, so they should be obtained from DN Solutions before the spindle and travel figures are compared with anything.

The cutting rows are the familiar ones. The PUMA 700 II and the PUMA 700 L II have the same chuck, power, torque and speed, with 1,600 mm (63 in) and 3,200 mm (126 in) of turning length. What grows with the bed is weight, from 22,000 kg (48,502 lb) on the PUMA 700 L II to 26,000 kg (57,320 lb) here. Z travel is 5,100 mm (201 in) at a rapid of 10 m/min (394 ipm), and X travel is 470 mm (19 in) at 12 m/min (472 ipm).

The turret has 12 stations, with no live tool speed and no Y travel listed, so this is a turning machine only. That fits the work: mill rolls, propeller and drive shafts, long hydraulic cylinders and columns, where the operations are long turning passes and the time goes into the cut.

Installation is a project in itself. The machine is 9,904 mm (390 in) long, 2,955 mm (116 in) wide and 2,855 mm (112 in) high, and the bay has to be longer still to bring a 5 m part in over the bed.

Full Specifications

Parameter	Value
Chuck Size	24 in
Max Turning Diameter	900 mm (35 in)
Max Turning Length	5,050 mm (199 in)
Rapid Traverse X	12 m/min (472 ipm)
Rapid Traverse Z	10 m/min (394 ipm)
X-Axis Travel	470 mm (19 in)
Z-Axis Travel	5,100 mm (201 in)
Max Spindle Speed	1,500 rpm
Spindle Motor Power	55 kW (74 hp)
Spindle Torque	8,076 N·m (5,957 ft-lb)
Turret Stations	12
Floor Space Required	9,904 × 2,955 × 2,855 mm (390 × 116 × 112 in)
Machine Weight	26,000 kg (57,320 lb)

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

5,050 mm (199 in) of turning length at a 900 mm (35 in) turning diameter, the series maxima in one machine
8,076 N·m (5,957 ft-lb) of spindle torque and 55 kW (74 hp)
5,100 mm (201 in) of Z travel and 470 mm (19 in) of X travel
24 in chuck at up to 1,500 rpm; the PUMA 800 II with a 32 in chuck is limited to 750 rpm
Machine weight of 26,000 kg (57,320 lb)

Limitations

9,904 mm (390 in) of machine length, before the space needed to load a 5 m part
Z rapid of 10 m/min (394 ipm) across 5,100 mm (201 in); the short PUMA 700 II lists 16 m/min (630 ipm)
No live tool speed or Y travel listed, so no milling
Workpiece weight limit, tailstock and steady rest figures are not in the table

Best For

Mill rolls and long shafts up to 5,050 mm (199 in) and 900 mm (35 in) in diameter Long hydraulic cylinders and columns turned in a 24 in chuck Heavy roughing along a long Z stroke with 8,076 N·m (5,957 ft-lb) Plants that already have the bay length and crane capacity for 5 m parts

Frequently Asked Questions

01 What is the largest part the PUMA 700 XL II can turn?

By dimension, 900 mm (35 in) in diameter and 5,050 mm (199 in) in length, with 470 mm (19 in) of X travel and 5,100 mm (201 in) of Z travel. By weight, the table gives no limit. A steel part near those dimensions weighs many tonnes, so the permitted workpiece weight is the first thing to ask DN Solutions.

02 How does the PUMA 700 XL II differ from the PUMA 700 L II?

In bed length and weight. The PUMA 700 L II turns 3,200 mm (126 in) on 3,235 mm (127 in) of Z travel and weighs 22,000 kg (48,502 lb). The PUMA 700 XL II turns 5,050 mm (199 in) on 5,100 mm (201 in) and weighs 26,000 kg (57,320 lb). Chuck, turning diameter, X travel, rapids, power, torque and speed are the same.

03 Does the PUMA 700 XL II have live tools?

None are listed. Its column has a 12-station turret and no live tool speed or Y travel. The PUMA 700 M II shows what the live-tool row looks like in this family, 3,000 rpm, but it is a short machine with 1,600 mm (63 in) of turning length.

04 How much building does a machine this long need?

The machine is 9,904 mm (390 in) long, 2,955 mm (116 in) wide and 2,855 mm (112 in) high and weighs 26,000 kg (57,320 lb). Add the length needed to swing a part of up to 5,050 mm (199 in) into place, crane capacity for that part, and a foundation designed for machine and workpiece together.

05 Is the spindle bore large enough for pipe?

DN Solutions states a maximum spindle through hole of Ø375 mm for the series and describes the machines as suited to large-diameter pipe. This model's column does not list its own bore. Get that figure for the 24 in spindle of the PUMA 700 XL II before planning pipe that has to pass through it.
