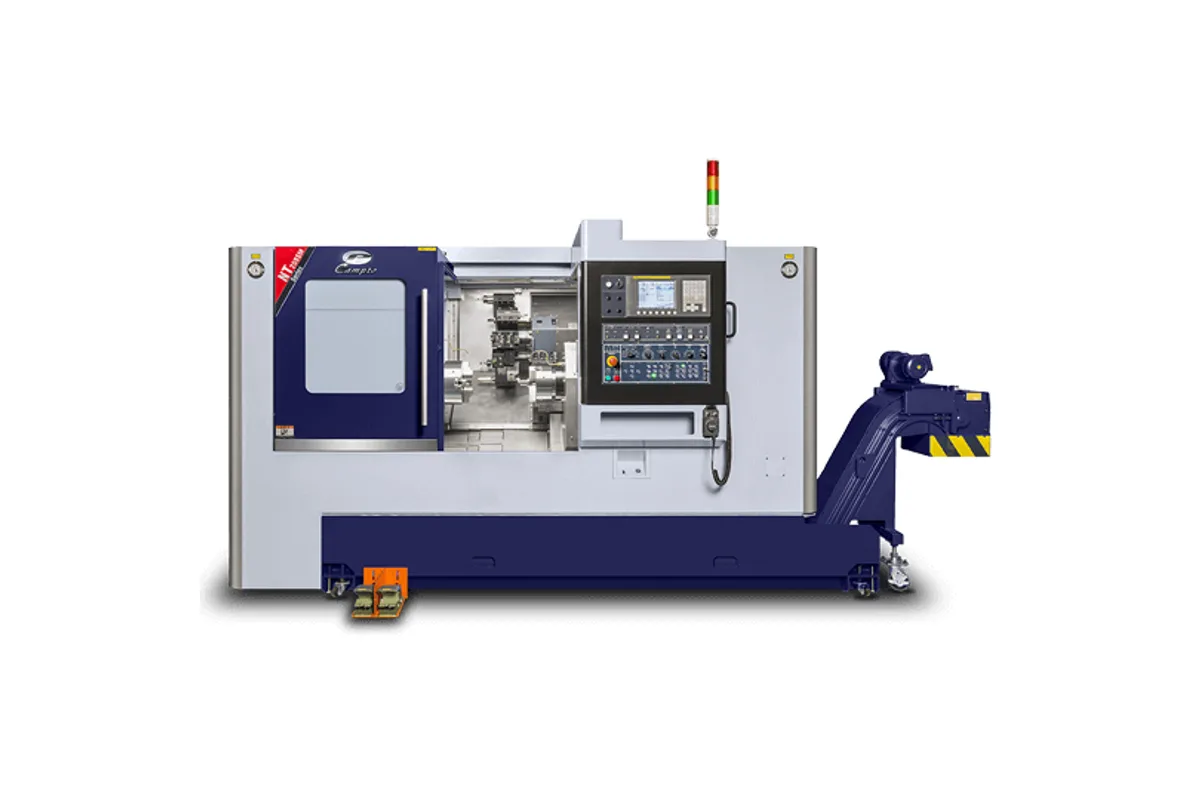

Campro NT-2510Y
Image: camprocnc.com, Campro
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
swing over bed
swing over carriage
max turning diameter
How much does the Campro NT-2510Y cost?
Price estimate
We do not have a price for the Campro NT-2510Y that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Campro NT-2510Y is the Y-axis turning and milling center of the NT-2510 pair without a sub-spindle. Campro publishes a short table for it: Ø400 mm (Ø15.7 in) maximum turning diameter, 520 mm (20.4 in) maximum turning length, 630 mm (24.8 in) of Z travel and a Y axis of 100 (±50) mm.
The figure that stands out is the swing. Maximum swing over the bed is Ø780 mm (Ø30.7 in), the largest of the NT machines; the NT-2510SY and NT-208Y are listed at Ø680 mm (Ø26.7 in). Swing over the carriage is Ø460 mm (Ø18.1 in). Turning diameter is not raised by it, but a larger swing gives clearance for bulky fixtures, jaws and odd-shaped parts that rotate outside the cut.
Tooling is the NT live-turret set. A 12-station servo turret takes □25 / Ø40 mm tools on a BMT-55 interface, with a 2.2 / 3.7 kW servo motor and driven tools at up to 5,000 rpm. The C axis indexes in 0.001° steps. Rapids are 20 m/min in X, 10 m/min in Y and 24 m/min in Z, and X travel is 210 + 20 mm.
The spindle rows read as on the NT-208Y: A2-6 nose, 8 in chuck, 11 / 15 kW (20 HP), 4,200 rpm and a Ø52 mm hole through the draw tube. A buyer expecting a bigger chuck from the model number should confirm the specification with Campro.
Several rows are missing. The table gives no machine weight and no tailstock data, although the listed dimensions are 4,254 x 2,141 x 2,381 mm (W x D x H) with a maximum machine height of 2,381 mm (93 in). Power capacity is 30 kVA. Campro's text for the page describes the NT series in general: cast iron, a one-piece 30° slant bed and a modular choice of guideways and options.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø780 mm (Ø30.7 in) |
| Swing Over Carriage | Ø460 mm (Ø18.1 in) |
| Max Turning Length | 520 mm (20.4 in) |
| Max Turning Diameter | Ø400 mm (Ø15.7 in) |
| X Axis Travel | 210 + 20 mm (8.2 in + 0.7 in) |
| Y Axis Travel | 100 (±50) mm (3.9 in (±1.9 in)) |
| Z Axis Travel | 630 mm (24.8 in) |
| Spindle Nose | A2-6 |
| Chuck Size | 8 in |
| Hole Through Draw Tube | Ø52 mm (Ø2.04 in) |
| Spindle Motor Power | 11 / 15 kW (20 HP) |
| Max Spindle Speed | 4,200 rpm |
| C Axis Indexing | 0.001° |
| Turret Type | Servo |
| Turret Stations | 12-Station |
| Turret Tool Shank | □25 / Ø40 mm (BMT-55) (O.D. / I.D.) |
| Turret Servo Motor | 2.2 / 3.7 kW (3.0 / 5.0 hp) |
| Driven Tool Speed | 5,000 rpm |
| Rapid Traverse Xyz | 20 / 10 / 24 m/min (787.4 / 393.7 / 944.8 in/min) |
| Machine Dimensions | 4,254 x 2,141 x 2,381 mm (167 in x 84 in x 93 in) (W x D x H) |
| Machine Height | 2,381 mm (93 in) |
| Power Requirement | 30 kVA |
Specifications sourced from camprocnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Maximum swing over the bed of Ø780 mm (Ø30.7 in), the largest in the NT range
- Y axis of 100 (±50) mm with a 12-station BMT-55 servo live turret
- Driven tools to 5,000 rpm and 0.001° C-axis indexing
- 11 / 15 kW (20 HP) main spindle at 4,200 rpm
- One-piece 30° slant bed in cast iron, as Campro describes the NT series
Limitations
- No machine weight and no tailstock figures are published for this model
- Spindle rows match the NT-208Y: 8 in chuck and Ø52 mm (Ø2.04 in) draw tube hole
- Turret servo motor of 2.2 / 3.7 kW
- Y rapid of 10 m/min, with 20 m/min in X and 24 m/min in Z
Best For
Frequently Asked Questions
01
Maximum swing over the bed is Ø780 mm (Ø30.7 in) and over the carriage Ø460 mm (Ø18.1 in). Maximum turning diameter is Ø400 mm (Ø15.7 in) and maximum turning length 520 mm (20.4 in). Travels are 210 + 20 mm in X, 100 (±50) mm in Y and 630 mm (24.8 in) in Z.
02
The NT-2510SY has a sub-spindle with a 6 in chuck, 5.5 / 7.5 kW (10 HP) and 5,000 rpm, and a swing over the bed of Ø680 mm (Ø26.7 in). The NT-2510Y has no sub-spindle rows in its table and a swing of Ø780 mm (Ø30.7 in). Main spindle, turret and Y axis are the same.
03
The main spindle is A2-6 with an 8 in hydraulic chuck, 11 / 15 kW (20 HP) and 4,200 rpm. The turret is a 12-station servo turret with □25 / Ø40 mm (BMT-55) tooling, a 2.2 / 3.7 kW servo motor and a maximum tool speed of 5,000 rpm.
04
Machine weight, tailstock dimensions, coolant capacity and air supply are not given. The table does list overall dimensions of 4,254 x 2,141 x 2,381 mm (167 in x 84 in x 93 in), a maximum machine height of 2,381 mm (93 in) and a power capacity of 30 kVA.
