You Ji AH06

Q: How much does the You Ji AH06 cost?

The price estimate for the You Ji AH06 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/you-ji-ah06#price; the request is passed to You Ji or an authorised dealer.

Specs verified 2026-10-04 · image.youji.com Updated 2026-10-04

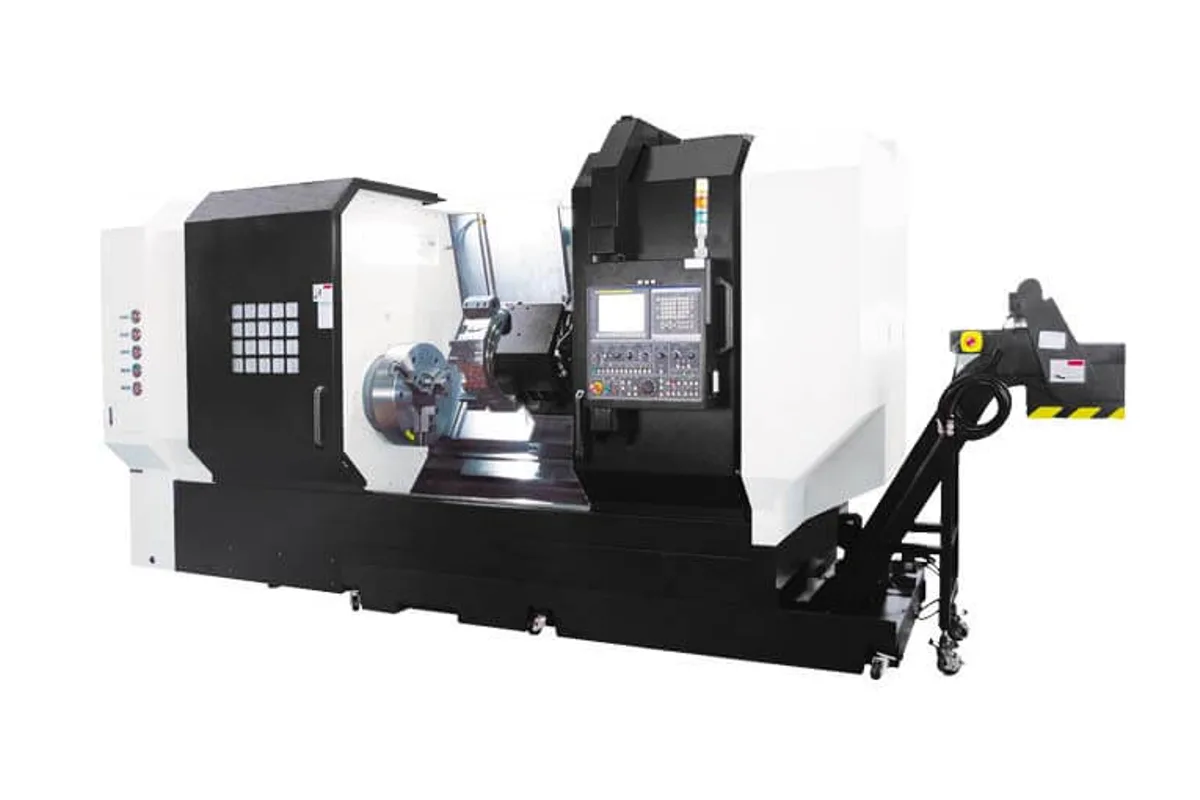

You Ji AH06 CNC horizontal turning lathe (AH series)

Image: image.youji.com, You Ji

Key Specifications

Max Spindle

1-230/230-620/620-1,200 rpm

Spindle Power

37/45 kW (49.6/60.3 hp)

Max Turn Length

1,000/2,100/3,200 mm (39.4/82.7/126.0 in)

chuck size

Ø690 mm (27.2 in) hydraulic

max swing diameter

Ø950 mm (37.4 in)

max turning diameter

Ø900 mm (35.4 in); Ø800 mm (31.5 in) on M models

How much does the You Ji AH06 cost?

Price estimate

Uncertain

We do not have a price for the You Ji AH06 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The You Ji AH06 is the fastest of three heavy-duty horizontal turning lathes that share one bed, one Ø950 mm (37.4 in) swing and one 37/45 kW (49.6/60.3 hp) spindle motor. What sets it apart is the spindle: an A2-15 nose with Ø153 mm (6.0 in) of bar capacity, a Ø690 mm (27.2 in) hydraulic chuck in the table, and a top gear that reaches 1,200 rpm.

A 3-step gearbox splits the speed range into 1-230, 230-620 and 620-1,200 rpm. The low step is for roughing big forgings at full torque. The high step is why the AH06 suits shaft work better than its siblings: the AH09 stops at 600 rpm and the AH12 at 400 rpm, which is slow for finishing a journal of modest diameter.

Three bed lengths are listed, for 1,000, 2,100 or 3,200 mm (39.4, 82.7 or 126.0 in) of turning length. Machine length grows with them, from 5,925 mm (233.3 in) to 7,025 mm (276.6 in) and 8,125 mm (319.9 in), while width stays at 2,395 mm (94.3 in).

Each length also comes as an M model. Those carry a 12-station BMT75 turret, and the turning diameter drops from Ø900 mm (35.4 in) to Ø800 mm (31.5 in) because the driven-tool turret takes up radial room. The catalogue table gives no milling spindle speed or power for the M models, so ask for those before planning live-tool cycles.

Full Specifications

Parameter	Value
Chuck Size	Ø690 mm (27.2 in) hydraulic
Max Swing Diameter	Ø950 mm (37.4 in)
Max Turning Diameter	Ø900 mm (35.4 in); Ø800 mm (31.5 in) on M models
Max Turning Length	1,000/2,100/3,200 mm (39.4/82.7/126.0 in)
Bar Capacity	Ø153 mm (6.0 in)
Spindle Motor Power	37/45 kW (49.6/60.3 hp)
Turret Type	12-st.; 12-st. (BMT75) on M models
Spindle Nose	A2-15
Max Spindle Speed	1-230/230-620/620-1,200 rpm
Machine Length	5,925/7,025/8,125 mm (233.3/276.6/319.9 in)
Machine Width	2,395 mm (94.3 in)
Machine Height	2,685 mm (105.7 in)

Specifications sourced from image.youji.com — verified 2026-10-04

Strengths & Limitations

Strengths

Top gear of 620-1,200 rpm, the highest speed in the AH range
The only AH size whose table lists a chuck: Ø690 mm (27.2 in), hydraulic
37/45 kW (49.6/60.3 hp) through a 3-step gearbox for heavy roughing in the 1-230 rpm step
Three turning lengths up to 3,200 mm (126.0 in), each also as an M model with a BMT75 turret

Limitations

Bar capacity of Ø153 mm (6.0 in) is the smallest of the range; pipe work needs the AH09 or AH12
M models give up turning diameter, Ø800 mm (31.5 in) instead of Ø900 mm (35.4 in)
Gear steps have to be changed to cross 230 rpm and 620 rpm, which interrupts constant-surface-speed facing
The table lists no tailstock, steady rest or live-tool figures

Best For

Heavy shafts and rolls up to Ø900 mm (35.4 in) and 3,200 mm (126.0 in) long Forged blanks that need a low gear for roughing and 1,200 rpm for finishing Shafts with keyways or cross holes on the M models

Frequently Asked Questions

01 What does the 06 in AH06 stand for?

It is the spindle bore class. You Ji builds the AH series in three spindle bore classes, and the AH06 is the smallest of them. Its table lists Ø153 mm (6.0 in) of bar capacity behind an A2-15 spindle nose.

02 How long a part can the AH06 turn?

The maximum turning length is 1,000, 2,100 or 3,200 mm (39.4, 82.7 or 126.0 in) depending on the bed. The matching machine lengths are 5,925, 7,025 and 8,125 mm (233.3, 276.6 and 319.9 in). Width is 2,395 mm (94.3 in) and height 2,685 mm (105.7 in) for all three.

03 What are the spindle speeds of the AH06?

The 3-step gearbox gives 1-230 rpm, 230-620 rpm and 620-1,200 rpm. The spindle motor is 37/45 kW (49.6/60.3 hp). That top step is double the AH09's 600 rpm and three times the AH12's 400 rpm.

04 What is different on the AH06 M models?

The turret. Standard models have a 12-station turret and turn up to Ø900 mm (35.4 in). M models have a 12-station BMT75 turret and turn up to Ø800 mm (31.5 in). Swing stays at Ø950 mm (37.4 in) on both.
