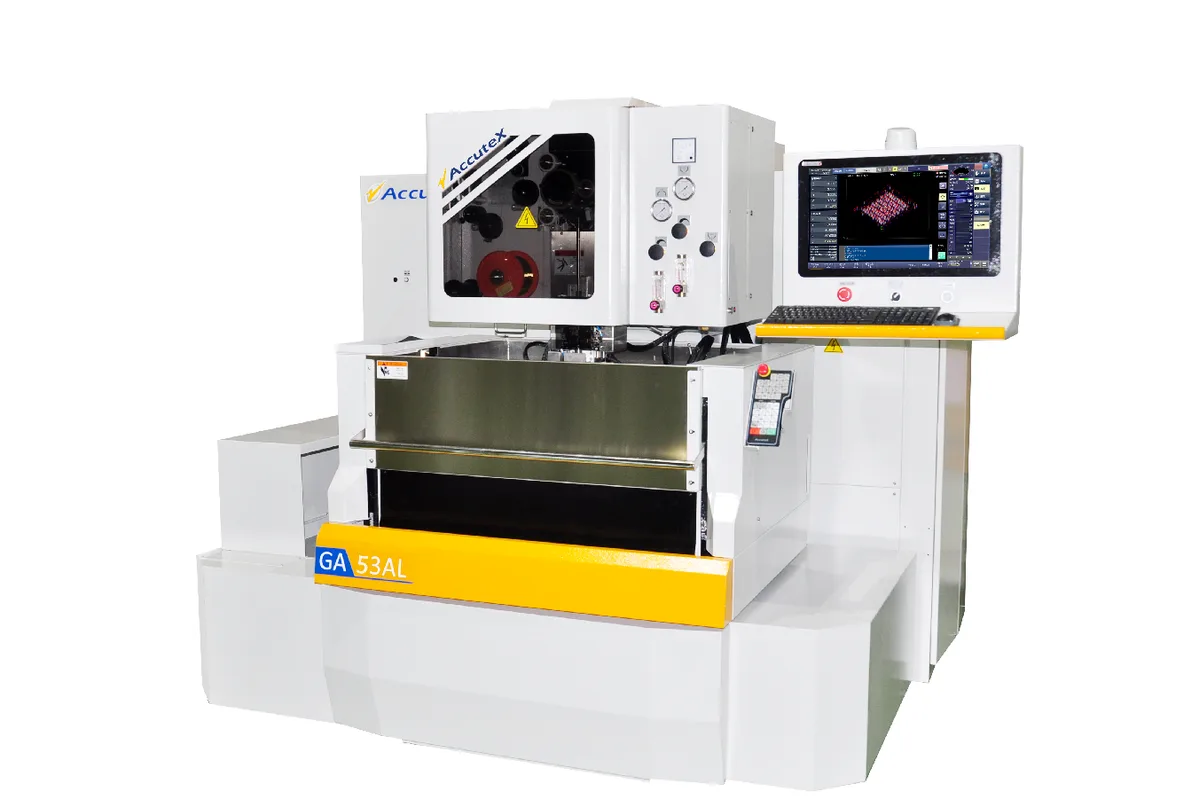

AccuteX GA-53
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max cutting workpiece height
max workpiece weight
x axis travel
y axis travel
uv axis travel
How much does the AccuteX GA-53 cost?
Price estimate
We do not have a price for the AccuteX GA-53 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Give the GA-43 a longer X axis and you have the AccuteX GA-53: 500 mm (19.7 in) of X travel, 300 mm (11.8 in) of Y and 220 mm (8.7 in) of Z. AccuteX prints the same workpiece envelope, 880 x 630 x 215 mm (34.6 x 24.8 x 8.5 in), and the same footprint, 2,200 x 2,570 x 1,995 mm (86.6 x 101.2 x 78.5 in), for both models. The table load rises to 500 kg (1,102 lb) and the machine weight to 3,000 kg (6,614 lb).
The case for this model is simple. It occupies the floor space of the GA-43, uses the same 730 L water system and gives a longer cut. Y travel, Z stroke and the 175 mm (6.9 in) maximum cutting height do not change.
AccuteX uses the GA page to describe how its controller treats corners and entries. Parameters are adjusted according to wire diameter, corner angle, arc radius and thickness, and the maker says the machine meets corner accuracy demands on small paths and continuous corners. A newer lead-in / lead-out function is aimed at tungsten carbide: AccuteX states a wire mark of 2μm after 3 cuts by 40mm thickness, which reduces polishing on a punch flank.
Compared with the AL-500SA, which has the same X and Y travel, the GA-53 is the shorter and plainer machine. Its Z stroke is 220 mm (8.7 in) against 300 mm (11.8 in), and its U and V travel is 60 mm (2.4 in) with a ±15° / H80 mm taper limit. Auto Wire Threading (AWT), the water chiller and the XY axes linear motor are optional accessories on the GA-53.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 880 x 630 x 215 mm (34.6 x 24.8 x 8.5 in) (L x W x H) |
| Max Cutting Workpiece Height | 175 mm (6.9 in) |
| Max Workpiece Weight | 500 kg (1,102 lb) |
| X Axis Travel | 500 mm (19.7 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 60 mm (2.4 in) |
| Z Axis Travel | 220 mm (8.7 in) |
| Max Cutting Taper | ±15° / H80 mm |
| Wire Spool Weight | 10 kg (22 lb) |
| Machine Dimensions | 2,200 x 2,570 x 1,995 mm (86.6 x 101.2 x 78.5 in) (W x D x H) |
| Water System Capacity | 730 L |
| Machine Weight | 3,000 kg (6,614 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- 500 mm (19.7 in) of X travel in the same 2,200 x 2,570 x 1,995 mm (86.6 x 101.2 x 78.5 in) footprint as the GA-43
- Corner control that adjusts parameters for wire diameter, corner angle, arc radius and thickness
- Lead-in / lead-out function for tungsten carbide with a stated 2μm wire mark after 3 cuts by 40mm thickness
- Table load of 500 kg (1,102 lb) on a 3,000 kg (6,614 lb) machine
- SD Master stable discharge board is standard
Limitations
- Z stroke of 220 mm (8.7 in) and a maximum cutting height of 175 mm (6.9 in) limit part thickness
- Taper capacity is ±15° / H80 mm with 60 mm (2.4 in) of U and V travel
- AWT, water chiller, linear motor and 0.2μm Resolution Linear Scale are all optional accessories
- AccuteX prints the same 880 x 630 x 215 mm (34.6 x 24.8 x 8.5 in) workpiece envelope as for the GA-43, so the longer travel does not come with a longer listed workpiece
Best For
Frequently Asked Questions
01
X travel: 500 mm (19.7 in) on the GA-53 against 400 mm (15.7 in) on the GA-43. The GA-53 also carries 500 kg (1,102 lb) and weighs 3,000 kg (6,614 lb), where the GA-43 carries 400 kg (882 lb) and weighs 2,800 kg (6,173 lb). Y, Z, U and V travel, taper and footprint are the same.
02
Only if the option is ordered. Auto Wire Threading (AWT) is in the optional accessory list, and AccuteX marks machines that have it with an "A" in the model name. High Pressure Water Jet Threading is a separate option. The base GA-53 is threaded by hand.
03
The XY axes linear motor is listed as an optional accessory, and AccuteX uses an "L" in the model name for machines fitted with it. A 0.2μm Resolution Linear Scale is also on the options list. Ask which drive and feedback the quoted machine has.
04
AccuteX's own controller. The table lists a Windows system on a 64-bit Industrial PC with a ≥ 30GB SSD, 5 axes controlled and 4 simultaneous, or 6 and 5 with the optional W axis. AccuteX states that the controller is 100% self-developed by its R&D team.
