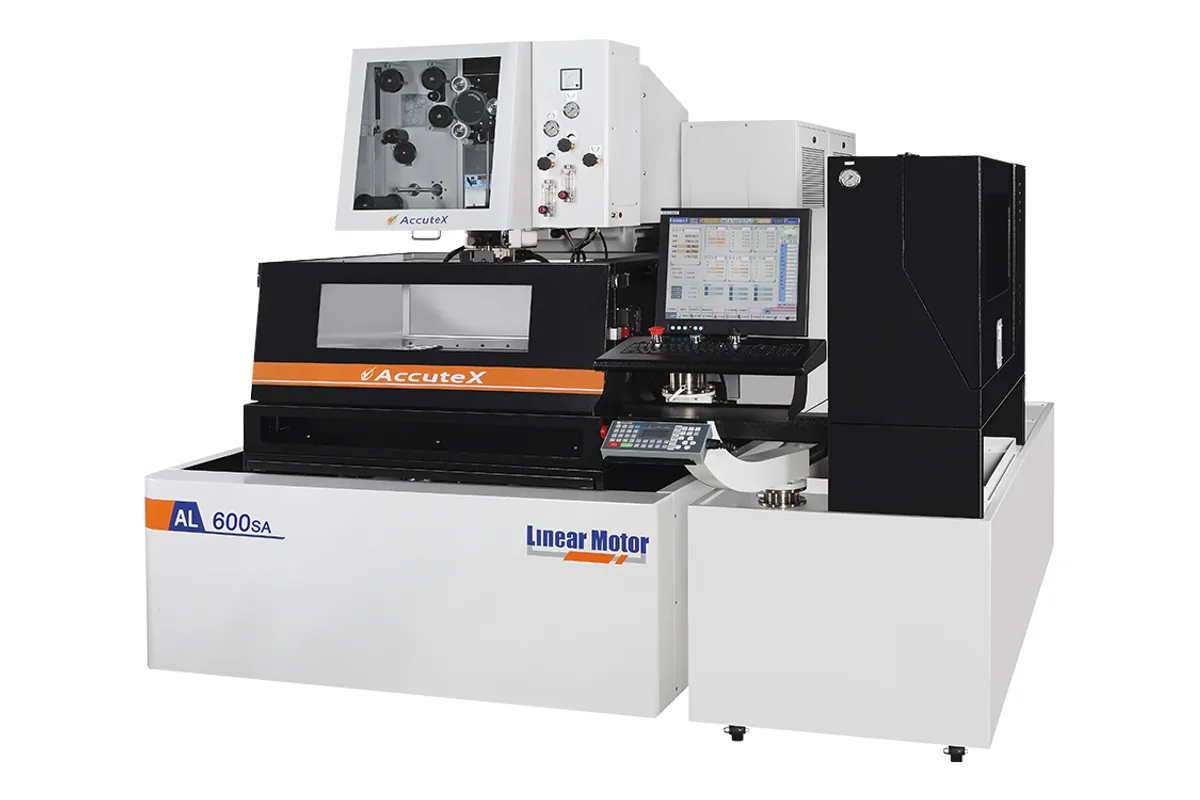

AccuteX AL-600SA
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max workpiece weight
x axis travel
y axis travel
uv axis travel
z axis travel
How much does the AccuteX AL-600SA cost?
Price estimate
We do not have a price for the AccuteX AL-600SA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
AccuteX's AL-600SA is a 600 mm (23.6 in) by 400 mm (15.7 in) wire EDM with a 300 mm (11.8 in) Z stroke, the size most general mould and die shops settle on. Its maximum workpiece is 990 x 620 x 295 mm (39.0 x 24.4 x 11.6 in) and 550 kg (1,213 lb).
AccuteX sells three machines with these X and Y travels, and the differences are worth setting out. The AZ-600A has 160 x 160 mm (6.3 x 6.3 in) of U and V travel and cuts tapers to ±32° / H100 mm. The AL-600SA has 100 x 100 mm (3.9 x 3.9 in) and ±21° (H=100), so steep tapers on thick parts are the AZ's territory. Against the AU-6iA, which lists an 800 kg (1,764 lb) workpiece, the AL carries less. Where the AL scores is its standard list: Auto Wire Threading (AWT) and the water chiller are included on this model's page.
The page describes two control-side features. One is a 1/1000 high resolution signal process on the linear scale feedback, which AccuteX says gives smoother velocity control and steadier position control for contouring. The other is the SD Master stable discharge board. Note that the X/Y Linear Scale itself appears in the optional accessories, so ask whether the quoted machine has it.
The machine weighs 3,700 kg (8,157 lb) and stands on 2,480 x 2,980 x 2,210 mm (97.6 x 117.3 x 87.0 in). Its water system holds 900 L. MST is available as an option on this size, as is a 6th Axis Package (W axis).
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 990 x 620 x 295 mm (39.0 x 24.4 x 11.6 in) (L x W x H) |
| Max Workpiece Weight | 550 kg (1,213 lb) |
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 400 mm (15.7 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Max Cutting Taper | ±21° (H=100) |
| Wire Spool Weight | 10 kg (22 lb) |
| Machine Dimensions | 2,480 x 2,980 x 2,210 mm (97.6 x 117.3 x 87.0 in) (W x D x H) |
| Water System Capacity | 900 L |
| Machine Weight | 3,700 kg (8,157 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- 600 mm (23.6 in) by 400 mm (15.7 in) of travel with a 300 mm (11.8 in) Z stroke
- Auto Wire Threading (AWT) and a water chiller are standard accessories
- 1/1000 high resolution signal process for smoother velocity and position control, as AccuteX describes it
- MST, PCD / graphite cutting and a 6th Axis Package (W axis) are available as options
- Same footprint as the AL-500SA, which has 300 mm (11.8 in) of Y travel against 400 mm (15.7 in) here
Limitations
- U and V travel is 100 x 100 mm (3.9 x 3.9 in) and taper ±21° (H=100); the AZ-600A offers 160 x 160 mm (6.3 x 6.3 in) and ±32° / H100 mm
- Workpiece weight is 550 kg (1,213 lb), below the 800 kg (1,764 lb) listed for the AU-6iA
- X/Y Linear Scale is listed as an optional accessory
- Standard wire spool is 10 kg (22 lb)
Best For
Frequently Asked Questions
01
Cutting travel is 600 mm (23.6 in) in X, 400 mm (15.7 in) in Y and 300 mm (11.8 in) in Z, with 100 x 100 mm (3.9 x 3.9 in) on U and V. The largest workpiece is 990 x 620 x 295 mm (39.0 x 24.4 x 11.6 in) at up to 550 kg (1,213 lb).
02
X, Y and Z travels match. The AZ-600A has 160 x 160 mm (6.3 x 6.3 in) of U and V travel, a ±32° / H100 mm taper limit, a 16 kg (35 lb) spool and weighs 4,400 kg (9,700 lb). The AL-600SA has 100 x 100 mm (3.9 x 3.9 in), ±21° (H=100), a 10 kg (22 lb) spool and weighs 3,700 kg (8,157 lb), and its page lists AWT and a chiller as standard.
03
AccuteX's optional accessory list for this model includes an X/Y Linear Scale, while the page also describes a high resolution signal process that works on linear scale feedback. Because the two statements sit side by side, confirm in the quotation whether scales are fitted to the machine you are buying.
04
The controller table lists a MOSFET non-electrolysis power type with an ignition power supply of 32 steps from 53V to 138V, 24 on-time steps and 43 off-time steps. The SD Master stable discharge board is standard, and MST and a PCD / graphite cutting supply are options.
