CHMER GX430L+

Q: How much does the CHMER GX430L+ cost?

The price estimate for the CHMER GX430L+ is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/chmer-gx430l-plus#price; the request is passed to CHMER or an authorised dealer.

Specs verified 2026-10-05 · chmer.com Updated 2026-10-05

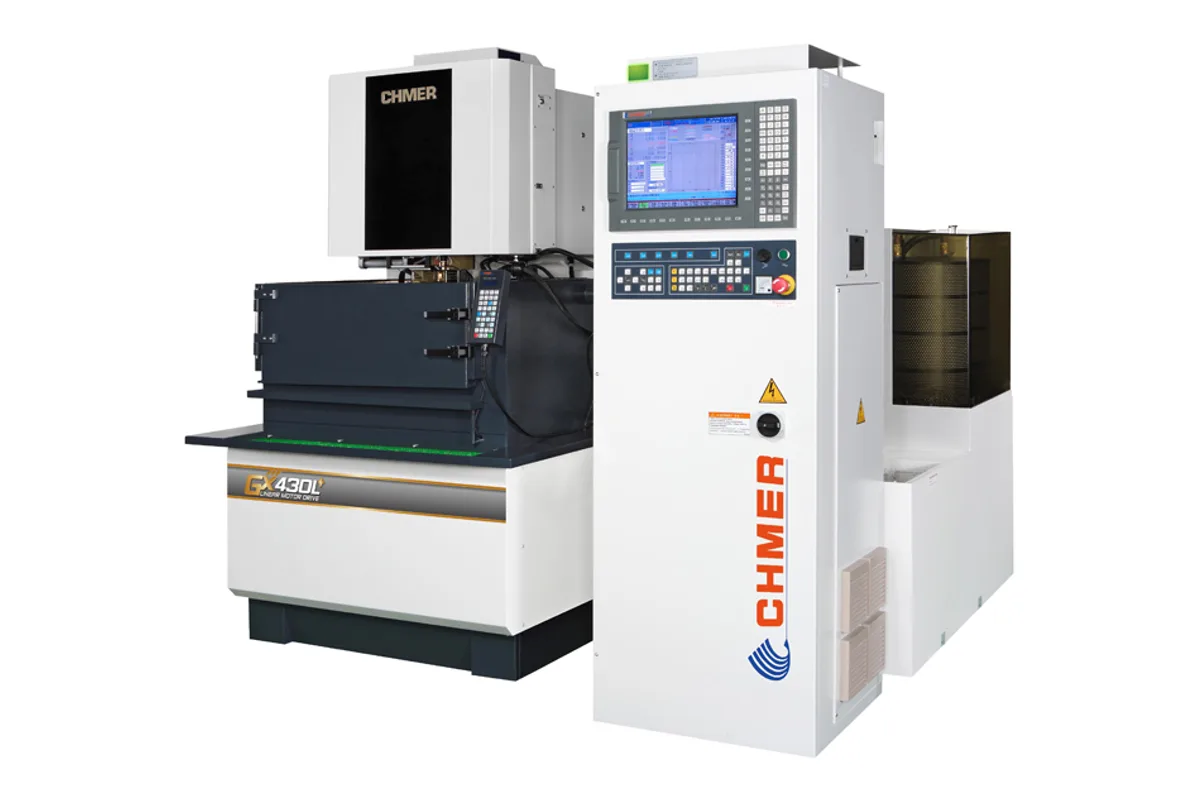

Image: chmer.com, CHMER

Key Specifications

x axis travel

400 mm (15.7 in)

y axis travel

300 mm (11.8 in)

z axis travel

220 mm (8.7 in)

uv axis travel

60 x 60 mm (2.4 x 2.4 in)

max workpiece size

725 x 600 x 215 mm (28.5 x 23.6 x 8.5 in) (W x D x H)

max workpiece weight

350 kg (772 lb)

How much does the CHMER GX430L+ cost?

Price estimate

Uncertain

We do not have a price for the CHMER GX430L+ that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The CHMER GX430L+ takes the 400 x 300 mm (15.7 x 11.8 in) wire EDM format and puts linear motors on the X and Y axes. Z travel is 220 mm (8.7 in). CHMER's table heads the column GX430L+ SUBMERGED, and its three stated features are a highly efficient in-house linear motor drive system, an energy-saving AWT and an inverter type water chiller.

On paper the envelope matches the servo-driven G43S exactly: the same travels, the same 725 x 600 x 215 mm (28.5 x 23.6 x 8.5 in) workpiece and the same 350 kg (772 lb) load. The difference is the drive. The GX430L+ lists a maximum X Y feed rate of 1,800 mm/min (70.9 ipm), where the G43S lists 800 mm/min (31.5 ipm).

U, V and Z stay on AC servo motors. Taper is ±14.5°/80 with a wide-angled nozzle and U and V travel is 60 x 60 mm (2.4 x 2.4 in), so the machine is aimed at accurate straight and shallow-taper work, not at steep draft angles.

Supply is given as 3 Phase 220 ±10% 11kva, and the machine weighs 2,600 kg (5,732 lb). CHMER's page for this model carries no accessory list and no outside dimensions in the table, so the scope of standard equipment should be settled in the quotation.

Full Specifications

Parameter	Value
X Axis Travel	400 mm (15.7 in)
Y Axis Travel	300 mm (11.8 in)
Z Axis Travel	220 mm (8.7 in)
Uv Axis Travel	60 x 60 mm (2.4 x 2.4 in)
Max Workpiece Size	725 x 600 x 215 mm (28.5 x 23.6 x 8.5 in) (W x D x H)
Max Workpiece Weight	350 kg (772 lb)
Xy Feed Rate	Max. 1,800 mm/min (70.9 ipm)
Axis Drive System	XY - Linear Motor / UVZ - AC Servo Motor
Wire Diameter	0.15-0.3 mm (0.006-0.012 in); standard 0.25 mm (0.010 in)
Wire Feed Rate Max	300 mm/sec (11.8 in/sec)
Wire Tension	300-2,500 gf
Taper Angle	±14.5°/80(wide-angled nozzle,DA+DB=15mm)
Machine Weight	2,600 kg (5,732 lb)
Power Requirement	3 Phase 220 ±10% 11kva

Specifications sourced from chmer.com — verified 2026-10-05

Strengths & Limitations

Strengths

Linear motor X and Y axes with a 1,800 mm/min (70.9 ipm) maximum feed rate
400 x 300 x 220 mm (15.7 x 11.8 x 8.7 in) travels with a 350 kg (772 lb) workpiece limit
CHMER lists an energy-saving AWT and an inverter type water chiller among the model's features
Power requirement stated in the table: 3 Phase 220 ±10% 11kva

Limitations

Taper limited to ±14.5°/80 on 60 x 60 mm (2.4 x 2.4 in) U and V axes
U, V and Z axes are AC servo driven, not linear
No standard or optional accessory list is published on the model page
Z travel of 220 mm (8.7 in) restricts part height

Best For

Precision die components within 400 x 300 mm (15.7 x 11.8 in) Submerged cutting of parts up to 350 kg (772 lb) Shops that want linear motor axes in a small wire EDM Straight and shallow-taper work with 0.25 mm wire

Frequently Asked Questions

01 What does the plus in GX430L+ stand for in the specifications?

CHMER's page does not define it. What the page does state for the model is a highly efficient in-house linear motor drive system, an energy-saving AWT and an inverter type water chiller, and the table lists X and Y as linear motor axes with U, V and Z on AC servo motors.

02 How does the GX430L+ compare with the G43S?

Travels (400 x 300 x 220 mm), workpiece size and the 350 kg (772 lb) load are the same. The GX430L+ has linear motors on X and Y and a maximum feed rate of 1,800 mm/min (70.9 ipm); the G43S uses AC servo motors throughout and lists 800 mm/min (31.5 ipm).

03 What power supply does the GX430L+ need?

The table gives the maximum power consumption as 3 Phase 220 ±10% 11kva. Machine weight is 2,600 kg (5,732 lb). The table on CHMER's page does not include outside dimensions for this model.

04 What wire and taper does the GX430L+ handle?

Wire of 0.15-0.3 mm (0.006-0.012 in), with 0.25 mm (0.010 in) standard, at 300-2,500 gf of tension and up to 300 mm/sec feed. The taper rating is ±14.5°/80 with a wide-angled nozzle, on U and V axes that travel 60 x 60 mm (2.4 x 2.4 in).
