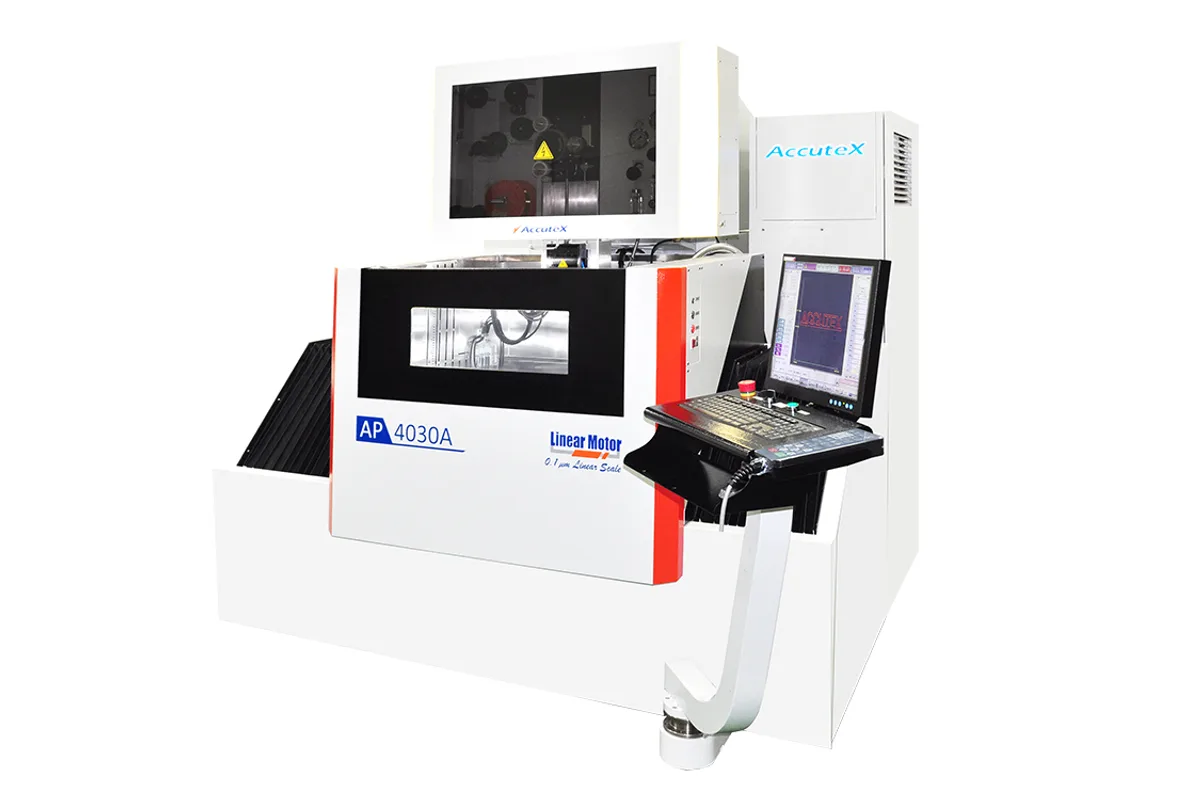

AccuteX AP-4030A
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max cutting workpiece height
max workpiece weight
x axis travel
y axis travel
uv axis travel
How much does the AccuteX AP-4030A cost?
Price estimate
We do not have a price for the AccuteX AP-4030A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AccuteX AP-4030A is the smaller of the two AP-series wire EDMs, with 400 mm (15.7 in) of X travel, 300 mm (11.8 in) of Y and a 270 mm (10.6 in) Z stroke. AccuteX heads the AP series as a high-end wire cut EDM with a compound table and shaft-type linear motors, and this model's standard accessory list backs that up: the XY Axes Linear Motor System and a 0.1μm Resolution Linear Scale are both on it, not on the options list.
For a machine with these travels there is a lot of iron behind the table. The AP-4030A weighs 5,000 kg (11,023 lb) and takes workpieces up to 800 kg (1,764 lb) within 800 x 600 x 265 mm (31.5 x 23.6 x 10.4 in). The AZ-400A covers the same 400 mm (15.7 in) by 300 mm (11.8 in) but weighs 3,500 kg (7,716 lb) and is rated for 400 kg (882 lb) on the table. If the work is small but dense, such as carbide die sections clamped in heavy tooling, the AP is the one sized for it.
Taper capacity is generous. U and V each travel 160 mm (6.3 in), and AccuteX lists the maximum cutting taper as ±32° / H100 mm. The wire spool can weigh up to 16 kg (35 lb), and the water system holds 660 L.
Check the options list before comparing quotes. Auto Wire Threading (AWT) is optional on this model, and so are the water chiller, the MST Power Module, the PCD / Graphite Power Module, the Rotary Table Package (W axis), the Core Remove Module and the 0.07mm~0.1mm Fine Wire Application. The control runs on Windows on a 64-bit Industrial PC and drives 5 axes, or 6 with the optional W axis.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 800 x 600 x 265 mm (31.5 x 23.6 x 10.4 in) (L x W x H) |
| Max Cutting Workpiece Height | 270 mm (10.6 in) |
| Max Workpiece Weight | 800 kg (1,764 lb) |
| X Axis Travel | 400 mm (15.7 in) |
| Y Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 160 x 160 mm (6.3 x 6.3 in) |
| Z Axis Travel | 270 mm (10.6 in) |
| Max Cutting Taper | ±32° / H100 mm |
| Wire Spool Weight | 16 kg (35 lb) |
| Machine Dimensions | 2,145 x 2,750 x 2,250 mm (84.4 x 108.3 x 88.6 in) (W x D x H) |
| Water System Capacity | 660 L |
| Machine Weight | 5,000 kg (11,023 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Servo Control Method | Full closed loop (Linear scale) |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- XY Axes Linear Motor System and a 0.1μm Resolution Linear Scale are standard accessories, with full closed loop servo control listed in the controller table
- Takes workpieces up to 800 kg (1,764 lb), twice the 400 kg (882 lb) of the AZ-400A on the same X and Y travel
- 160 x 160 mm (6.3 x 6.3 in) of U and V travel and a listed maximum cutting taper of ±32° / H100 mm
- Anti-Collision on XYUV Axes, Safety Door Interlock and an Automatic Sliding door are all standard
- A 0.07mm~0.1mm Fine Wire Application is offered as an option for very narrow slots and small radii
Limitations
- Auto Wire Threading (AWT) is on the optional accessories list, so unattended multi-opening jobs depend on an extra
- The water chiller, transformer and auto voltage stabilizer are options too and need to be settled with the installation
- At 5,000 kg (11,023 lb) it is heavy for a 400 mm (15.7 in) by 300 mm (11.8 in) machine, which matters for floor loading and rigging
- Anti-Collision on Z-Axis is an option, while the X, Y, U and V protection is standard
Best For
Frequently Asked Questions
01
X is 400 mm (15.7 in), Y is 300 mm (11.8 in) and Z is 270 mm (10.6 in). U and V travel 160 x 160 mm (6.3 x 6.3 in). AccuteX gives the maximum workpiece as 800 x 600 x 265 mm (31.5 x 23.6 x 10.4 in) and 800 kg (1,764 lb), with a maximum cutting height of 270 mm (10.6 in).
02
No. AccuteX lists Auto Wire Threading (AWT) under the optional accessories for this model, together with High Pressure Water Jet Threading and a Wire Chopper. The linear motor system, the 0.1μm Resolution Linear Scale and the SD Master board are in the standard list.
03
Size. The AP-6040A has 600 mm (23.6 in) by 400 mm (15.7 in) of X and Y travel and a 350 mm (13.8 in) Z stroke, and it takes 1,000 kg (2,205 lb). The AP-4030A is the 400 mm (15.7 in) by 300 mm (11.8 in) machine with 270 mm (10.6 in) of Z. Both have 160 x 160 mm (6.3 x 6.3 in) of U and V travel.
04
AccuteX's own controller, listed as Windows on a 64-bit Industrial PC with a 21.5" Color TFT Touch Screen. It controls 5 Axes / 6 Axes (Opt. W Axis) and the minimum command unit is 0.0001 mm / 0.00001 inch. Programs come in by keyboard, mouse, USB, Ethernet or FTP.
