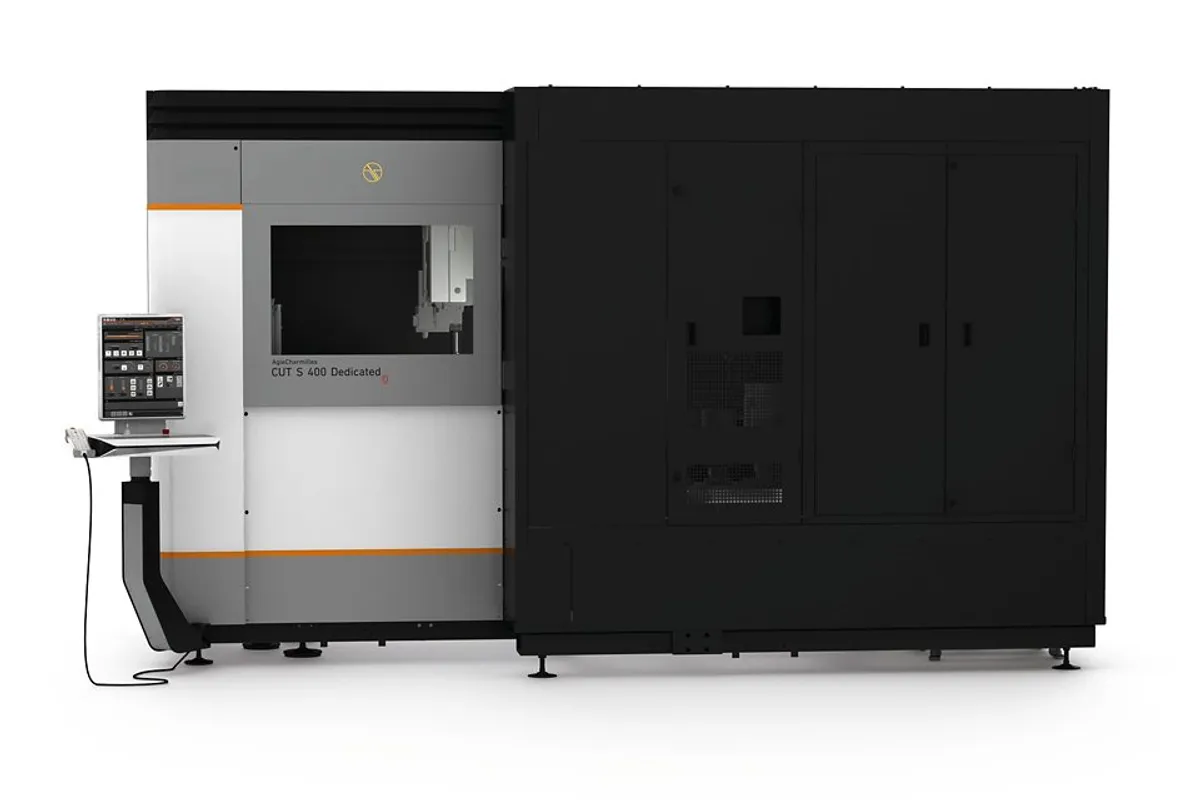

GF Machining AgieCharmilles CUT S 400 Dedicated
Key Specifications
X Travel
Y Travel
Z Travel
Max Workpiece ⌀
travel u
travel v
Overview
The GF Machining Solutions AgieCharmilles CUT S 400 Dedicated is a specialized variant of the CUT S 400, optimized for round workpieces and rotary applications. With X/Y/Z travels of 400 x 315 x 256 mm and U/V travel of 500 x 350 mm, the Dedicated model shares the core CUT S platform but is configured specifically for cylindrical and rotary-indexed parts — primarily cutting tools, round punches, and cylindrical die components.
The key differentiator is the maximum workpiece specification: the Dedicated is rated for workpieces up to 680 mm diameter and 300 kg (piece plus equipment), compared to the standard CUT S 400's block-style workpiece approach. This configuration includes rotary fixturing compatibility and optimized work tank geometry for round stock.
Wire diameters range from 0.15 to 0.30 mm — a narrower range than the standard CUT S 400's 0.05-0.30 mm option, reflecting the Dedicated model's focus on production cutting rather than micro-detail work. Surface finish capability of Ra 0.08 micrometers on steel matches the full CUT S family. Maximum taper angle of +/-30 degrees over 250 mm height provides adequate angular capability for most round-part applications.
The compact equipment footprint of 4,024 x 2,308 x 2,465 mm includes the dedicated dielectric and filtration system. Wire spool capacity up to 45 kg supports extended unattended running, critical for production environments cutting batches of identical round parts.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 400 mm (15.7 in) |
| Y-Axis Travel | 315 mm (12.4 in) |
| Z-Axis Travel | 256 mm (10.1 in) |
| Travel U | 500 mm (19.7 in) |
| Travel V | 350 mm (13.8 in) |
| Max Workpiece Diameter | 680 mm (26.8 in) |
| Max Workpiece Weight | 300 kg (piece + equipment)661 lbs (piece + equipment) |
| Wire Diameter Range | 0.15 - 0.30 mm |
| Surface Finish | Ra 0.08 µm (steel, best) |
| Max Taper Angle | +/-30 deg / 250 mm |
| Max Wire Spool Weight | Up to 45 kg / 99 lbs |
| Equipment Dimensions | 4,024 x 2,308 x 2,465 mm |
| Dielectric | Deionized water |
| Travel X Y Z | 400 x 315 x 256 mm15.75 x 12.40 x 10.07 in |
| Travel U V | U: 500 mm, V: 350 mmU: 19.69 in, V: 13.78 in |
| Min Surface Roughness Ra | Steel: 0.08 µmSteel: 3.2 μ-inch RMS |
| Max Taper Angle Height | ± 30°/250 mm± 30°/9.84 in |
| Max Workpiece Dimensions | Ø 680 mmØ 26.77 in |
| Wire Diameters | Ø 0.15 - 0.30 mmØ 0.006 - 0.012 in |
| Dimensions Of Complete Equipment | 4024 x 2308 x 2465 mm158.43 x 90.9 x 97.05 in |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Optimized for round and cylindrical workpieces up to 680 mm diameter
- 45 kg wire spool capacity supports extended unattended production runs
- Ra 0.08 micrometers surface finish matches the full CUT S performance tier
- Dedicated configuration eliminates compromises of adapting a standard machine for round parts
- Compact integrated equipment footprint includes dielectric and filtration system
- +/-30 deg taper over 250 mm height covers most round-part angular requirements
Limitations
- 300 kg workpiece weight limit (piece plus equipment) is lower than the standard CUT S 400's 1,000 kg
- Narrower wire range (0.15-0.30 mm) lacks the ultra-fine 0.05 mm capability of the standard CUT S 400
- Specialized for round parts — less versatile than the standard CUT S 400 for rectangular block work
- Dedicated configuration limits resale flexibility compared to general-purpose wire EDM
Best For
Frequently Asked Questions
01
The Dedicated is optimized for round and cylindrical workpieces up to 680 mm diameter with rotary fixturing compatibility and an optimized work tank. The standard CUT S 400 handles rectangular workpieces up to 1,000 kg with a wider wire range (0.05-0.30 mm). Both share the same X/Y/Z travels, surface finish capability, and UNIQUA control.
02
Primarily cutting tools (PCD, carbide, HSS blanks), round punches, cylindrical die inserts, and rotary-indexed components. The 680 mm maximum diameter and rotary-compatible configuration handle the most common round-stock wire EDM applications in tool manufacturing.
03
The Dedicated model uses 0.15-0.30 mm wire, omitting the ultra-fine 0.05-0.15 mm range. Round-part applications typically use standard 0.20 or 0.25 mm wire for production cutting. The micro-detail capability of finer wire is rarely needed for the cylindrical and rotary applications this machine targets.
04
The machine can physically cut non-round parts within its X/Y/Z travel envelope, but the work tank geometry and fixturing are optimized for round stock. For mixed round and rectangular work, the standard CUT S 400 is the better choice.
