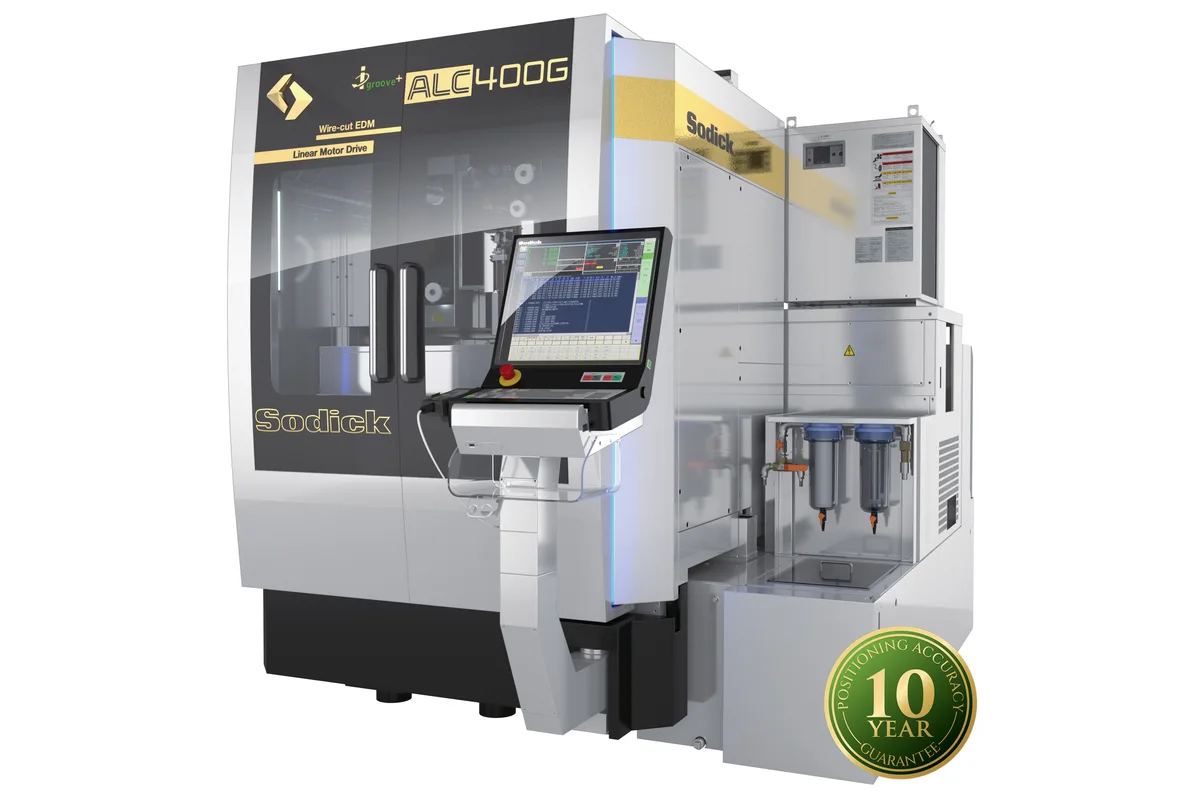

Sodick ALC400G Premium

New Sodick ALC400G Premium machines price between $180,000 and $250,000 depending on options. Base machines with AWT and standard filtration start around $180,000. Adding fine-finish power supply upgrades, enhanced filtration, chiller systems, fire suppression, and automation interfaces pushes toward $250,000. Used Sodick ALC-series machines from 2016-2022 trade between $80,000 and $150,000, with linear motor models commanding premium resale values.

Both are premium wire EDMs targeting precision die and mold applications. The Makino U6 HEAT offers HyperCut technology for exceptional surface finish and uses a FANUC-based control familiar to many shops. The Sodick ALC400G Premium counters with linear motor drives for zero-backlash long-term accuracy and SPW automatic optimization. The Makino typically prices 10-20% higher. Both achieve Ra 0.08 µm or better finishes. The choice often depends on control preference (FANUC vs Sodick) and whether linear motor longevity or Makino's HEAT surface finish technology is more valued.

Linear motors connect the motor directly to the moving axis with no mechanical transmission. This eliminates backlash (play between gear teeth), mechanical wear on ballscrews and nuts, and thermal expansion of ballscrews during operation. In a wire EDM where positioning accuracy of 1 micron matters, these advantages translate to more consistent accuracy over the machine's life. Ballscrew machines may start with similar accuracy but gradually lose it as the screw and nut wear, requiring periodic replacement to restore original specifications.

The ALC400G supports wire diameters from 0.10 mm to 0.30 mm. Common wire types include brass (standard), zinc-coated brass (higher speed), diffusion-annealed (reduced wire breaks), and molybdenum (reusable). The most common production wire is 0.25 mm brass for general cutting and 0.20 mm for finer detail. For micro-EDM work, 0.10 mm wire is available for features as small as 0.12 mm radius. Wire selection affects cutting speed, surface finish, and wire break frequency.

Yes, the ALC400G Premium operates in a submerged cutting mode where the workpiece is fully immersed in deionized water during cutting. Submerged cutting provides more stable discharge conditions, better flushing of debris from the cutting gap, reduced wire vibration, and improved surface finish compared to flush-only (non-submerged) cutting. The machine fills and drains the work tank automatically, and the dielectric water system maintains precise conductivity and temperature control.

Primary maintenance includes dielectric water system management (resin replacement, conductivity monitoring), wire system cleaning, filtration element replacement, and work tank cleaning. Linear motor drives require minimal maintenance compared to ballscrew systems — no screw lubrication, no nut replacement, no backlash adjustment. The deionized water system resin typically needs replacement every 3-6 months depending on usage. Sodick recommends annual inspection of power supply components and linear motor air gap verification.
