Sodick Sodick AX350L
Key Specifications
X Travel
Y Travel
Z Travel
uv travel
max taper angle
wire diameter range
Overview

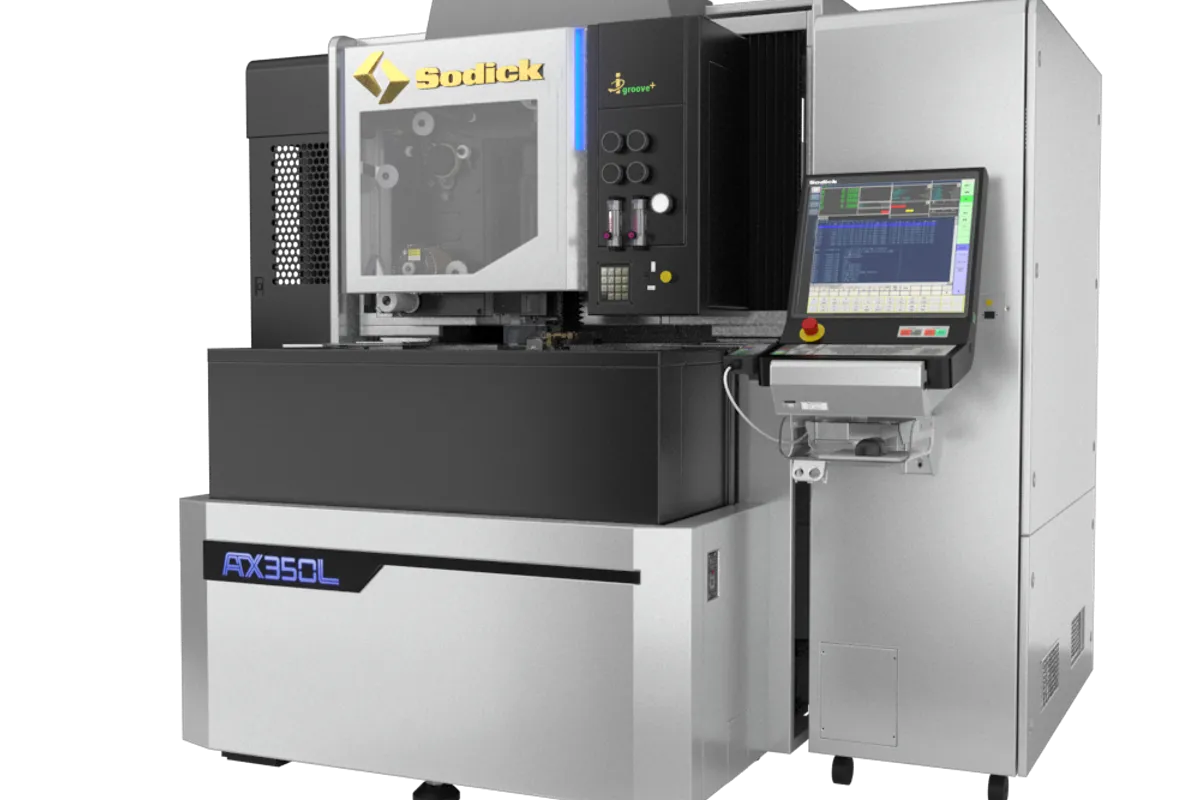

The Sodick AX350L is an ultra-precision wire EDM from the AX series, featuring the proprietary i Groove+ Edition wire rotation mechanism that significantly reduces wire consumption during finishing operations. With 350 x 350 x 120 mm X/Y/Z travel (plus 100 mm service stroke on Z) and 80 x 80 mm U/V travel, the AX350L is engineered for high-precision motor core dies, lead frame tooling, and electronic component dies where sub-micron accuracy and extended unattended operation are essential.
The i Groove technology is the defining feature: by rotating the wire electrode during finishing passes, the system distributes wire wear evenly around the circumference rather than concentrating it on one side. This uniform wear pattern extends wire life, reduces consumption cost, and improves surface finish consistency.
The AX350L employs 4-axis linear motor drives with a gantry and suspended arm structure, incorporating ceramic components and an integrated temperature control system for thermal stability. The machine achieves up to 150 hours of continuous automatic operation, over six days of unattended running.
The machine supports wire diameters from 0.05 to 0.25 mm and achieves plus/minus 15 degree taper at 100 mm plate thickness. At 4,950 kg machine weight and 1,600 x 2,505 mm footprint (3,000 x 3,700 mm installation space), the AX350L requires three-phase 13 kVA power.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 350 mm (13.8 in) |
| Y-Axis Travel | 350 mm (13.8 in) |
| Z-Axis Travel | 120 mm (4.7 in) + 100 mm service stroke |
| Uv Travel | 80 x 80 mm |
| Max Taper Angle | ±15° (Thickness : 100 mm) |
| Wire Diameter Range | 0.05 - 0.25 mm |
| Wire Tension | 3 ～ 25 |
| Max Wire Feed Rate | 250 mm/sec |
| Drive System | 4-axis linear motors, gantry/suspended arm structure |
| Special Features | i Groove+ wire rotation mechanism, ceramic components, temperature control system |
| Continuous Operation | Up to 150 hours unattended |
| CNC Control | Sodick LQ controller |
| Machine Dimensions | 1,600 x 2,505 x 2,185 mm (63 x 98.6 x 86 in) |
| Installation Footprint | 3,000 x 3,700 mm (118.1 x 145.7 in) |
| Machine Weight | 4,950 kg (10,913 lb) |
| Power Supply | 3-phase 50/60 Hz 13 kVA |
| Axis Stroke Xyz | 350 x 350 x 120（+100mm）*1 |
| U X V Axis Travel | 80 x 80 |
| Wire Electrode Diameter | 0.05 ～ 0.25 |
| Maximum Wire Feed Rate | 250 |
| Distance From Floor Surface To Upper Surface Of Table | 950 |
| Machine Tool Dimensions W X D X H | 1600 x 2505 x 2185 |
| Machine Installation Dimensions W X D | 3000 x 3700 |
| Total Unit Weightkg | 4950 |
| Total Power Input | 3-phase, 50/60 Hz, 13 kVA |
| Super Finishing High Speed Machining Circuits Super Finishing Circuit | Super finishing circuit "Super PIKA Oil" provides excellent surface roughnes for dies and precision parts. |
