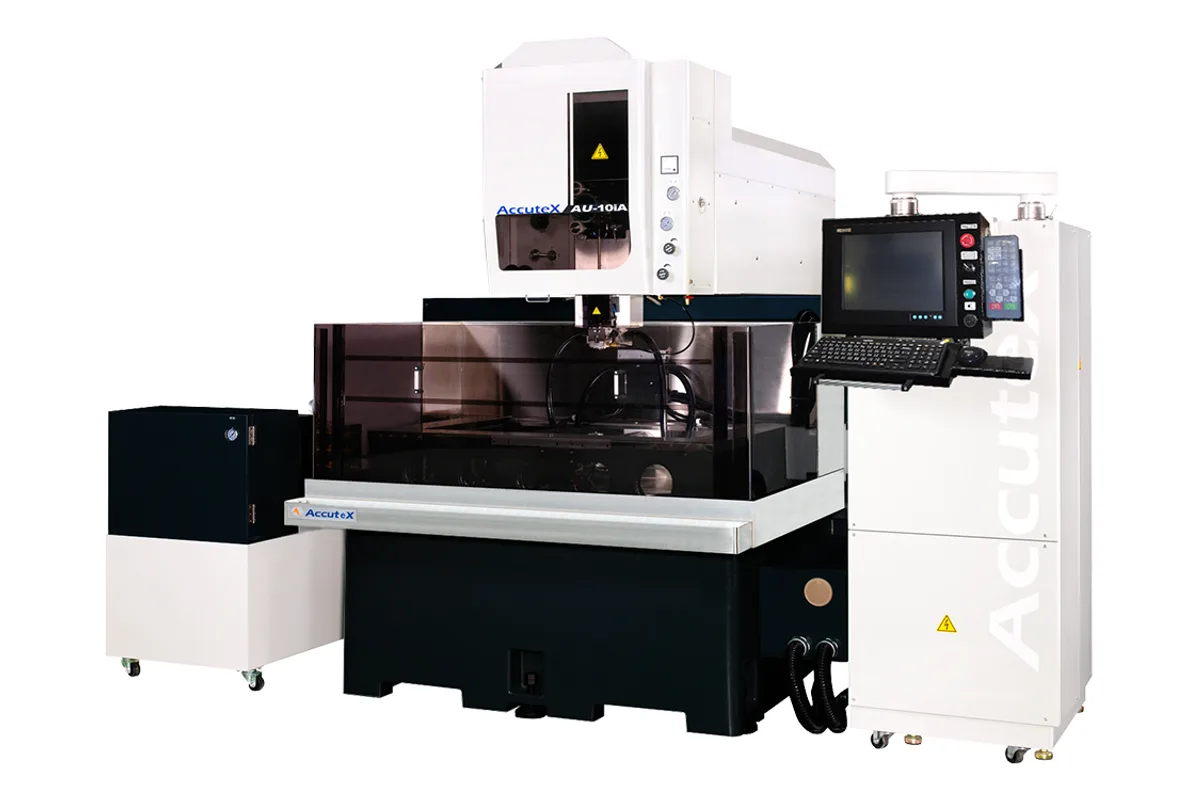

AccuteX AU-10iA
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max workpiece weight
x axis travel
y axis travel
z axis travel
uv axis travel
How much does the AccuteX AU-10iA cost?
Price estimate
We do not have a price for the AccuteX AU-10iA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AU-10iA gives AccuteX buyers 1,100 mm (43.3 in) of X travel, 650 mm (25.6 in) of Y and a 400 mm (15.7 in) Z stroke in a fixed specification. There are no bracketed alternatives or column options in its table: one Z height, one footprint, one weight.
Its place in the range is easiest to see beside the AU-1000iA, which has the same three travels. The AU-1000iA is rated for a 5,000 kg (11,023 lb) workpiece, has 150 x 150 mm (5.9 x 5.9 in) of U and V travel and cuts tapers to ±30° / H100. The AU-10iA is rated for 4,000 kg (8,818 lb), has 100 x 100 mm (3.9 x 3.9 in) of U and V travel and a taper limit of ±21° H=100. For straight-walled cutting of very large plates the simpler machine does the same job.
And the plates can be large. The workpiece envelope is 1,685 x 990 x 395 mm (66.3 x 39.0 x 15.6 in). The machine weighs 8,000 kg (17,637 lb) and occupies 4,440 x 3,600 x 2,750 mm (174.8 x 141.7 x 108.3 in), so it needs a prepared foundation and crane access over the tank. The wire spool is 16 kg (35 lb).
With a workpiece of this length, a wire break far from the start hole is costly if the machine has to travel back to rethread. AccuteX says its AWT threads at the break point and that a wire above 0.25mm can be threaded directly in a workpiece of 300mm. The water capacity printed on AccuteX's page for the AU-10iA repeats the figure of its smallest machine and is not given here.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,685 x 990 x 395 mm (66.3 x 39.0 x 15.6 in) (L x W x H) |
| Max Workpiece Weight | 4,000 kg (8,818 lb) |
| X Axis Travel | 1,100 mm (43.3 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 400 mm (15.7 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Wire Spool Weight | 16 kg (35 lb) |
| Machine Dimensions | 4,440 x 3,600 x 2,750 mm (174.8 x 141.7 x 108.3 in) |
| Machine Weight | 8,000 kg (17,637 lb) |
| Max Cutting Taper | ±21° H=100 |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,100 mm (43.3 in) by 650 mm (25.6 in) of travel with a 400 mm (15.7 in) Z stroke
- Workpieces up to 1,685 x 990 x 395 mm (66.3 x 39.0 x 15.6 in) and 4,000 kg (8,818 lb)
- 16 kg (35 lb) wire spool for long cuts
- AWT described as rethreading at the wire break point
- One fixed specification, without the column variants of the AU-1000iA
Limitations
- Taper limited to ±21° H=100, where the AU-1000iA reaches ±30° / H100
- U and V travel is 100 x 100 mm (3.9 x 3.9 in), not the 150 x 150 mm (5.9 x 5.9 in) of the AU-1000iA
- No Z600 option is shown for this model
- Needs 4,440 x 3,600 x 2,750 mm (174.8 x 141.7 x 108.3 in) and a floor for 8,000 kg (17,637 lb) plus water and workpiece
Best For
Frequently Asked Questions
01
Cutting travel is 1,100 mm (43.3 in) in X, 650 mm (25.6 in) in Y and 400 mm (15.7 in) in Z. The machine weighs 8,000 kg (17,637 lb) and its listed footprint is 4,440 x 3,600 x 2,750 mm (174.8 x 141.7 x 108.3 in).
02
Travels are the same. The AU-1000iA carries 5,000 kg (11,023 lb), has 150 x 150 mm (5.9 x 5.9 in) of U and V travel, cuts to ±30° / H100 and offers a Z600 option. The AU-10iA carries 4,000 kg (8,818 lb), has 100 x 100 mm (3.9 x 3.9 in) of U and V travel and cuts to ±21° H=100.
03
AccuteX lists a maximum workpiece of 1,685 x 990 x 395 mm (66.3 x 39.0 x 15.6 in) weighing up to 4,000 kg (8,818 lb). A part of that weight has to be craned in, so plan overhead access when siting the machine.
04
The control handles 5 axes with 4 simultaneous as standard: X, Y, U and V interpolate for taper and for different top and bottom shapes, and Z positions the upper head. With the optional W axis it becomes 6 axes with 5 simultaneous.
