ONA NX 6 Wire EDM Machine
Key Specifications
X Travel
Y Travel
Z Travel
worktank length
worktank width
worktank height
How much does the ONA NX 6 Wire EDM Machine cost?
Estimated price range
Our best estimate for a wire edm in this class — not a quote from ONA Electroerosion. Configuration moves it a long way.
Overview
The ONA NX 6 is listed with 1000 mm of X travel, 600 mm of Y and 500 mm of Z, a worktank 1700 mm long, 1000 mm wide and 600 mm high, and a table load of 4000 Kg. It is filed with the wire machines, yet the listed figures are those of a die-sinking EDM: a maximum electrode weight of 200 Kg and a maximum distance of 760 mm from table to platen. There are no rows for wire diameter, taper or cutting speed.
Read as a sinker, the proportions are those of a large-mould machine. The 200 Kg electrode allowance covers big roughing electrodes, and the 760 mm between table and platen, set against 500 mm of Z, decides how tall a stack of workpiece, electrode and holder will fit. The worktank is longer than the X travel and wider than the Y travel, so a block can overhang the working range and be finished in a second setup.
The NX 6 is not among ONA's current product pages, so treat it as an older model. Check the listed figures against the machine's own plate and manual, and ask about the generator rating and the control, which the table does not cover.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1000 mm |
| Y-Axis Travel | 600 mm |
| Z-Axis Travel | 500 mm |
| Worktank Length | 1700 mm |
| Worktank Width | 1000 mm |
| Worktank Height | 600 mm |
| Max Distance Table to Platen | 760 mm |
| Max Electrode Weight | 200 Kg |
| Max Table Load | 4000 Kg |
Specifications sourced from onaedm.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 1000 x 600 x 500 mm of X, Y and Z travel, a large working range for die-sinking
- Table load of 4000 Kg with a worktank of 1700 x 1000 x 600 mm for large mould blocks
- Maximum electrode weight of 200 Kg and up to 760 mm between table and platen
Limitations
- No generator current, surface finish or control rows, so burning performance is not shown by the listed figures
- No machine weight or footprint is listed; obtain both before planning to move a machine built for a 4000 Kg table load
- Not on ONA's current product pages, so the listed figures need confirming on the machine itself
Best For
Frequently Asked Questions
01
The listed figures describe a die-sinking machine. The table gives a maximum electrode weight of 200 Kg and a maximum table-to-platen distance of 760 mm, and it has no wire diameter, taper or cutting speed rows. Confirm the machine type with the seller before comparing it with wire machines.
02
The worktank is listed at 1700 mm long, 1000 mm wide and 600 mm high, and the table carries up to 4000 Kg. Travels are 1000 mm in X, 600 mm in Y and 500 mm in Z. The electrode can weigh up to 200 Kg, and the distance from table to platen is 760 mm at most.

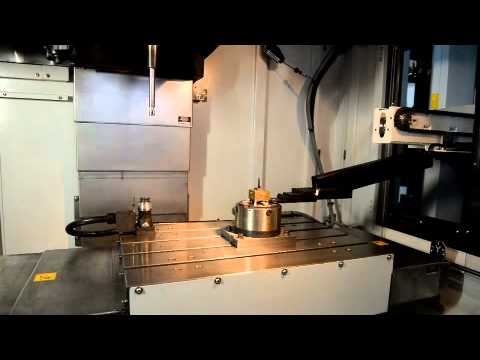

Videos
