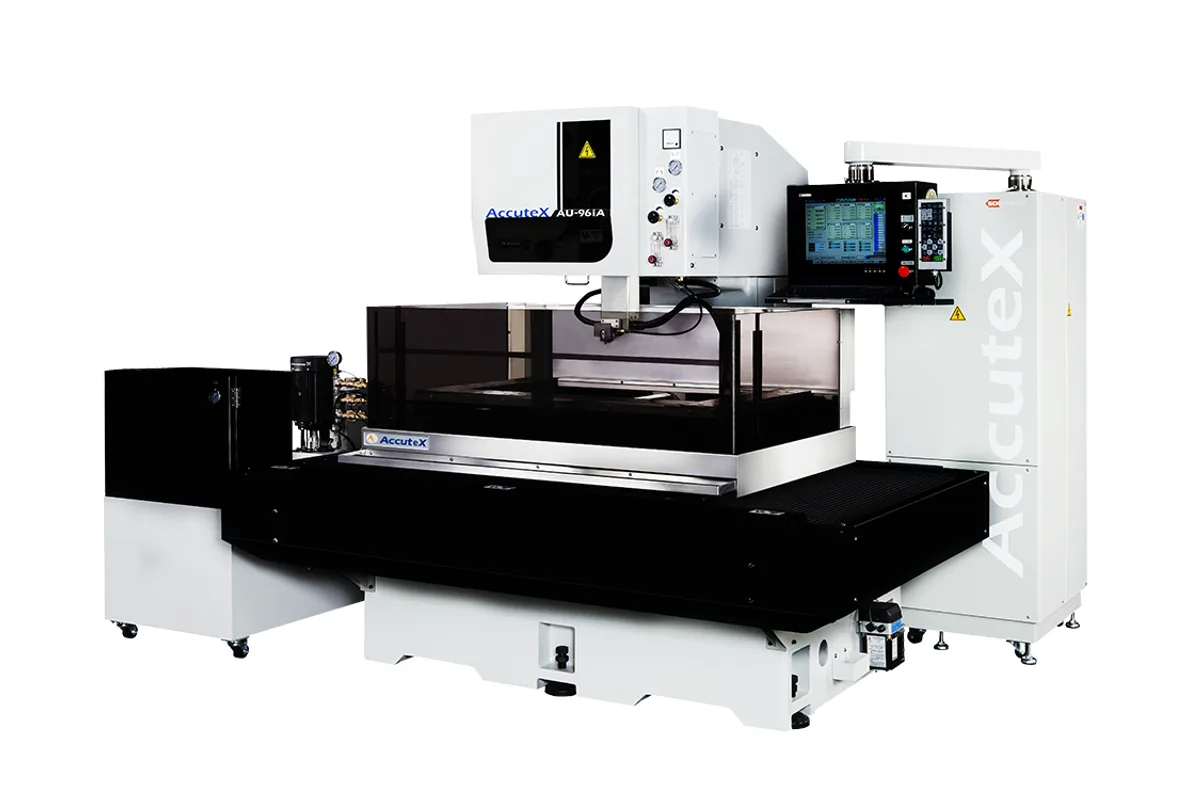

AccuteX AU-96iA
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max workpiece weight
x axis travel
y axis travel
z axis travel
uv axis travel
How much does the AccuteX AU-96iA cost?
Price estimate
We do not have a price for the AccuteX AU-96iA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Y travel is what sets the AccuteX AU-96iA apart. At 960 mm (37.8 in) by 600 mm (23.6 in) it is the widest of the AU machines that keep a 300 mm (11.8 in) Z stroke, where the AU-9iA and the AU-900iA stop at 500 mm (19.7 in) of Y. The workpiece limit is 1,435 x 860 x 295 mm (56.5 x 33.9 x 11.6 in) and 1,300 kg (2,866 lb).
That extra width changes what can be loaded. A square mould base, or two rows of inserts in a frame, fits where a narrower machine would need the part turned and set up again. The AU-9iA carries the same 1,300 kg (2,866 lb) but offers 900 mm (35.4 in) by 500 mm (19.7 in).
Nothing else grows with the table. U and V travel is still 100 x 100 mm (3.9 x 3.9 in), the taper limit ±21° H=100 and the spool 10 kg (22 lb). The machine weighs 5,600 kg (12,346 lb), and its listed footprint of 3,260 x 3,280 x 2,300 mm (128.3 x 129.1 x 90.6 in) is close to square.
Operators coming from another make will find the program side familiar. AccuteX says its control accepts NC code written for several other brands without modification, and the function list includes mirror, program rotation, axis exchange, sub programs and multi-block skip. The control is Windows on a 64-bit Industrial PC. AccuteX's page for this model prints a water capacity carried over from its smallest AU machine, so that figure is not shown.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,435 x 860 x 295 mm (56.5 x 33.9 x 11.6 in) (L x W x H) |
| Max Workpiece Weight | 1,300 kg (2,866 lb) |
| X Axis Travel | 960 mm (37.8 in) |
| Y Axis Travel | 600 mm (23.6 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Wire Spool Weight | 10 kg (22 lb) |
| Machine Dimensions | 3,260 x 3,280 x 2,300 mm (128.3 x 129.1 x 90.6 in) |
| Machine Weight | 5,600 kg (12,346 lb) |
| Max Cutting Taper | ±21° H=100 |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- 600 mm (23.6 in) of Y travel, the widest among AU models with a 300 mm (11.8 in) Z stroke
- Workpieces up to 1,435 x 860 x 295 mm (56.5 x 33.9 x 11.6 in) and 1,300 kg (2,866 lb)
- Control described as accepting NC code from several other brands of machine without modification
- Near-square footprint of 3,260 x 3,280 x 2,300 mm (128.3 x 129.1 x 90.6 in)
Limitations
- Wire spool is 10 kg (22 lb), small for a table of this area
- Taper limited to ±21° H=100; the AU-860iA with the same 600 mm (23.6 in) of Y reaches ±30° / H100
- Z stroke is 300 mm (11.8 in), where the AU-860iA has 400 mm (15.7 in)
- No accessory lists on the page, so standard equipment is not documented
Best For
Frequently Asked Questions
01
X is 960 mm (37.8 in), Y is 600 mm (23.6 in) and Z is 300 mm (11.8 in). U and V travel 100 x 100 mm (3.9 x 3.9 in) and the maximum cutting taper is ±21° H=100. The workpiece can measure up to 1,435 x 860 x 295 mm (56.5 x 33.9 x 11.6 in).
02
Both have 600 mm (23.6 in) of Y travel. The AU-860iA is a larger class of machine with 800 mm (31.5 in) of X, a 400 mm (15.7 in) Z stroke, 150 x 150 mm (5.9 x 5.9 in) of U and V travel and a 5,000 kg (11,023 lb) workpiece rating. The AU-96iA is longer in X at 960 mm (37.8 in) and carries 1,300 kg (2,866 lb).
03
The machine weighs 5,600 kg (12,346 lb) and is rated for a workpiece of up to 1,300 kg (2,866 lb). The listed footprint is 3,260 x 3,280 x 2,300 mm (128.3 x 129.1 x 90.6 in). Allow for the water as well when checking the floor.
04
AccuteX states that the control is designed to be compatible with NC code for multiple brands of machine without modification. Programs are loaded by USB, Ethernet or FTP, and the control offers program edit, program simulation and dry run to check them before cutting.
