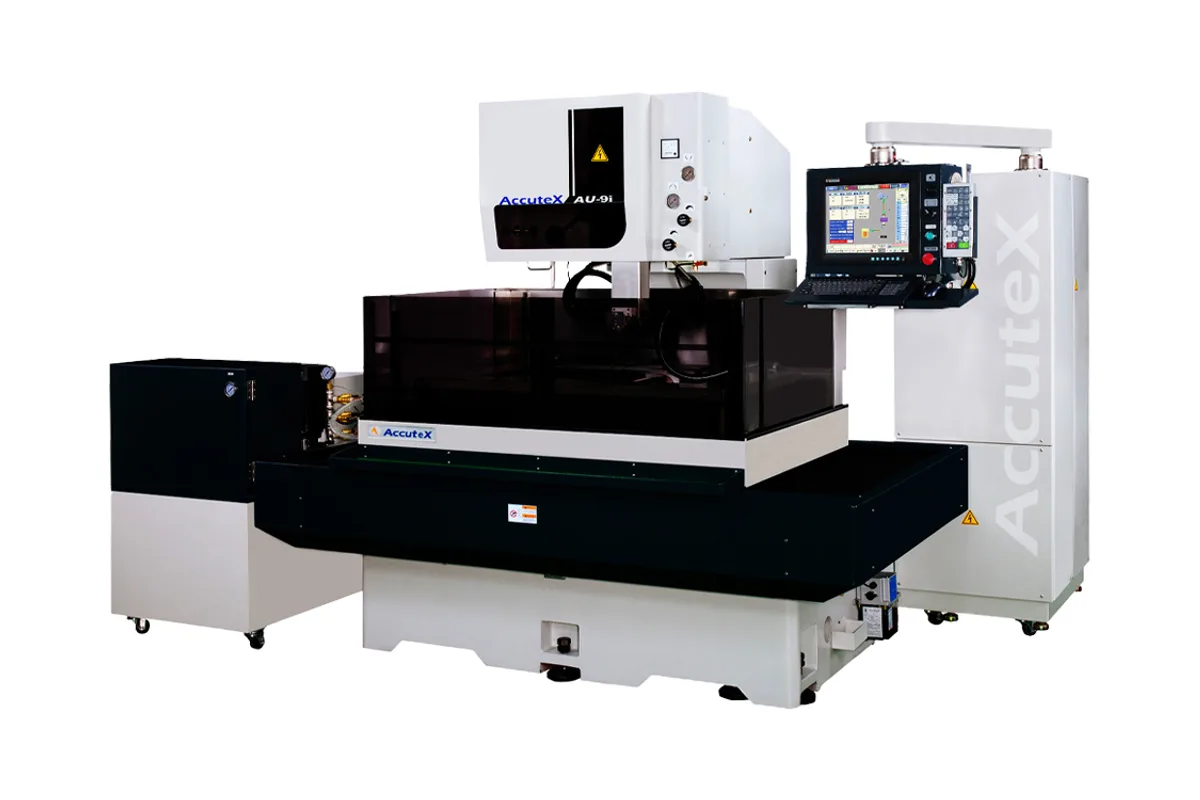

AccuteX AU-9iA
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max workpiece weight
x axis travel
y axis travel
z axis travel
uv axis travel
How much does the AccuteX AU-9iA cost?
Price estimate
We do not have a price for the AccuteX AU-9iA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With 900 mm (35.4 in) of X travel and a 1,300 kg (2,866 lb) workpiece rating, the AccuteX AU-9iA is built for long, heavy plates. Y travel is 500 mm (19.7 in) and Z is 300 mm (11.8 in). The machine weighs 5,400 kg (11,905 lb).
Why so much table capacity? A plate that uses the whole envelope, 1,375 x 760 x 295 mm (54.1 x 29.9 x 11.6 in), is a substantial piece of steel, and die shoes or extrusion tooling of that length are rarely light. AccuteX's other 900 mm machine, the AU-900iA, is listed at 800 kg (1,764 lb). The AU-9iA is the one to pick when the part weight is the constraint.
Long travels put the emphasis on axis accuracy over distance. AccuteX states that each axis is compensated by laser interferometer and that pitch compensation and backlash compensation are controller functions. The screws are C1 class. A linear scale, mounted close to the ball screw, is described as an option, and on a 900 mm (35.4 in) axis it is worth asking for.
U and V travel 100 x 100 mm (3.9 x 3.9 in) and the taper limit is ±21° H=100. The spool is 10 kg (22 lb), which is small for the amount of cutting a plate this size can hold. Listed footprint: 3,260 x 3,180 x 2,300 mm (128.3 x 125.2 x 90.6 in). The water capacity printed on AccuteX's AU-9iA page is the smallest AU model's figure and has been left out.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,375 x 760 x 295 mm (54.1 x 29.9 x 11.6 in) (L x W x H) |
| Max Workpiece Weight | 1,300 kg (2,866 lb) |
| X Axis Travel | 900 mm (35.4 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Wire Spool Weight | 10 kg (22 lb) |
| Machine Dimensions | 3,260 x 3,180 x 2,300 mm (128.3 x 125.2 x 90.6 in) |
| Machine Weight | 5,400 kg (11,905 lb) |
| Max Cutting Taper | ±21° H=100 |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- Workpiece rating of 1,300 kg (2,866 lb), well above the 800 kg (1,764 lb) of the AU-900iA
- 900 mm (35.4 in) of X travel with 500 mm (19.7 in) of Y and 300 mm (11.8 in) of Z
- Envelope of 1,375 x 760 x 295 mm (54.1 x 29.9 x 11.6 in) for long die plates
- Laser-interferometer compensation on each axis, plus pitch and backlash compensation in the control
Limitations
- Wire spool is 10 kg (22 lb) on a machine meant for long cuts; the AU-900iA takes 16 kg (35 lb)
- The linear scale is described as an option
- U and V travel of 100 x 100 mm (3.9 x 3.9 in) limits taper to ±21° H=100
- At 5,400 kg (11,905 lb) plus a 1,300 kg (2,866 lb) part, the floor needs checking
Best For
Frequently Asked Questions
01
Up to 1,375 x 760 x 295 mm (54.1 x 29.9 x 11.6 in) and 1,300 kg (2,866 lb). The wire covers 900 mm (35.4 in) in X and 500 mm (19.7 in) in Y, and the Z stroke is 300 mm (11.8 in).
02
X, Y and Z travels match. The AU-900iA is listed with an 800 kg (1,764 lb) workpiece, a 16 kg (35 lb) spool, a 1,240 L water system and a machine weight of 5,600 kg (12,346 lb). The AU-9iA is listed with 1,300 kg (2,866 lb), a 10 kg (22 lb) spool and 5,400 kg (11,905 lb).
03
The page describes C1 class ball screws finished by a sub-zero and super-finish grinding process, ball-retainer linear guides, and compensation of each axis by laser interferometer. Pitch compensation and backlash compensation appear in the list of controller functions. A linear scale is offered as an option.
04
AccuteX's Windows control on a 64-bit Industrial PC with a 21.5" Color TFT Touch Screen and a ≥ 30GB SSD. It controls 5 axes, or 6 with the optional W axis, and reads programs from USB, Ethernet or FTP.
