Mitsubishi Electric MV1200R Wire EDM
Image: mcmachinery.com, Mitsubishi Electric
Key Specifications
X Travel
Y Travel
Z Travel
Table Size
Rapid Traverse
max taper angle
How much does the Mitsubishi Electric MV1200R Wire EDM cost?
Estimated price range
Our best estimate for a wire edm in this class — not a quote from Mitsubishi Electric. Configuration moves it a long way.
Overview

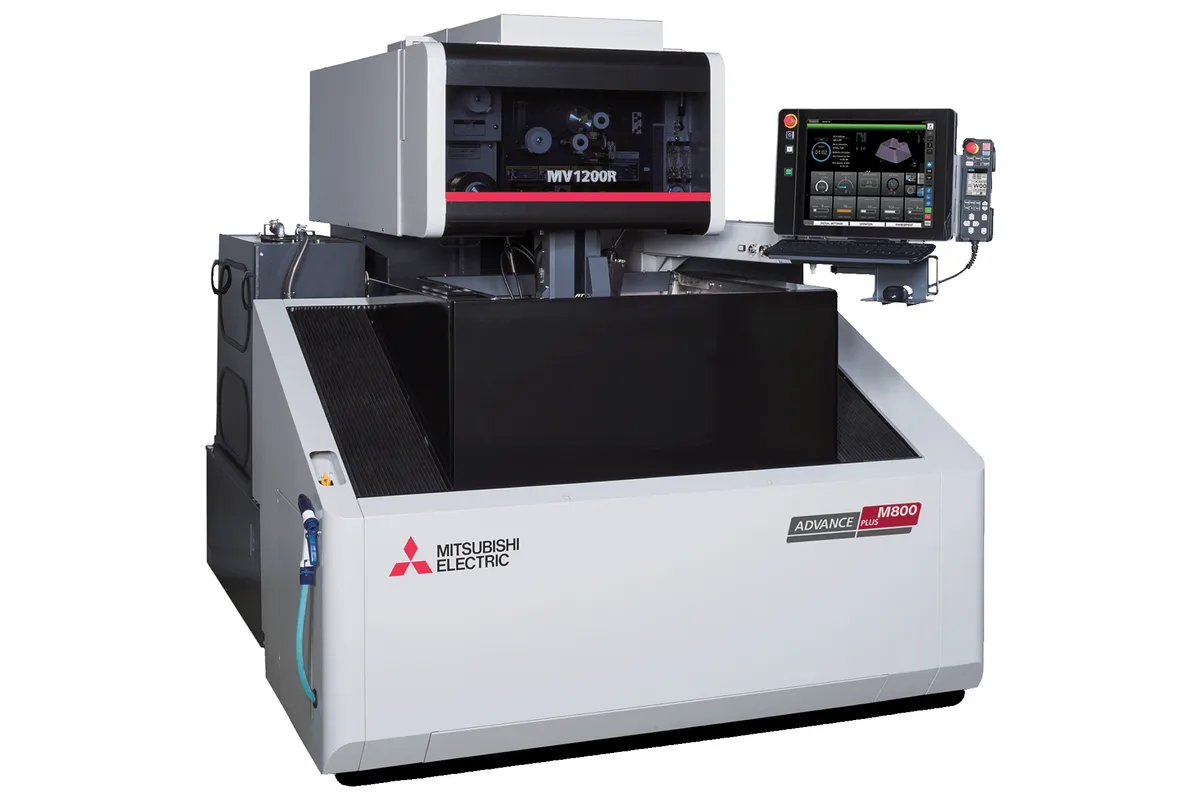

The Mitsubishi MV1200R is a 15.7 in (400 mm) by 11.8 in (300 mm) wire EDM run from an M800 series control with a 19-inch touchscreen. Z travel is 8.7 in (220 mm), the generator is the V350-V, and the electrical supply is 200-230V 3-phase.
Start with the table, because it is generous for the travel. At 25.2 × 21.3 in (640 × 540 mm) it leaves a wide margin on every side of the cutting window, and that margin is where clamps, rails and vises live. The MV1200S covers the same travels on a 25.2 × 17.7 in (640 × 450 mm) table. Loading capacity goes further still: workpieces up to 31.9 × 27.6 × 8.5 in (810 × 700 × 215 mm) and 1,102 lb (500 kg).
That weight limit deserves a second look. A solid steel blank at the maximum dimensions would be far heavier than 1,102 lb (500 kg), so the big envelope is for thin plates, frames and fixtures carrying several small parts.
For tapered cuts the U and V axes travel ±2.4 × ±2.4 in (±60 × ±60 mm) and the stated maximum is 15 degrees at 8.0 in (200 mm). The machine runs wire of 0.004–0.012 in (0.1–0.3 mm) and needs a start hole of at least 0.02 in (0.5 mm), so a pre-drilled hole smaller than that will not do.
The MG12 has a table of the same size, 25.2 x 21.3 in (640 x 541 mm), and an M800 control with a 19 in touch panel, but its table is 3-sided and its weight is given as 5,940 lb (2,694 kg), including fluid system. The MV1200R weighs 5,952 lb (2,700 kg), carries 145 gal (550 L) of dielectric and takes up 79.7 × 106.4 in (2,025 × 2,702 mm) of floor at 79.3 in (2,015 mm) high.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 15.7 in (400 mm) |
| Y-Axis Travel | 11.8 in (300 mm) |
| Z-Axis Travel | 8.7 in (220 mm) |
| Max Taper Angle | 15 deg.@ 8.0 in (15 deg.@ 200 mm) |
| Max Workpiece Size | 31.9 × 27.6 × 8.5 in (810 × 700 × 215 mm) |
| Max Workpiece Weight | 1,102 lb (500 kg) |
| Table Size | 25.2 × 21.3 in (640 × 540 mm) |
| Wire Diameter Range | 0.004–0.012 in (0.1–0.3 mm) |
| CNC Control | M800 series (19-inch touchscreen) |
| Filter Tank Capacity | 549 L (145 gal) |
| Machine Weight | 5,952 lb (2,700 kg) |
| Power Requirements | 200-230V 3-phase |
| Uv Travel | ±2.4 × ±2.4 in (±60 × ±60 mm) |
| Rapid Traverse Rate | 51.2 in/min (1,300 mm/min) |
| Generator | V350-V |
| Min Start Hole | 0.02 in (0.5 mm) |
| Dielectric Capacity | 145 gal (550 L) |
| Floor Space Required | 79.7 × 106.4 in (2,025 × 2,702 mm) |
| Machine Height | 79.3 in (2,015 mm) |
Specifications sourced from mcmachinery.com — verified 2026-10-03
Strengths & Limitations
Strengths
- M800 series control with a 19-inch touchscreen
- The 25.2 × 21.3 in (640 × 540 mm) table leaves clamping room on all sides of a 15.7 in (400 mm) by 11.8 in (300 mm) travel
- Accepts workpieces up to 31.9 × 27.6 × 8.5 in (810 × 700 × 215 mm)
- Runs on a 200-230V 3-phase supply and weighs 5,952 lb (2,700 kg)
- Maximum taper of 15 degrees at 8.0 in (200 mm) from ±2.4 × ±2.4 in (±60 × ±60 mm) of U and V travel
Limitations
- A 1,102 lb (500 kg) workpiece limit keeps solid blocks at the maximum envelope off the table
- 8.7 in (220 mm) of Z travel excludes tall die blocks; the MV2400R offers 12.2 in (310 mm)
- Start holes must be at least 0.02 in (0.5 mm), and the wire range ends at 0.004 in (0.1 mm) at the fine end
- Rapid traverse is 51.2 in/min (1,300 mm/min), so repositioning across a plate with many openings takes time
Best For
Frequently Asked Questions
01
The table lists an M800 series control with a 19-inch touchscreen. It does not go into the software or functions on that control, so if a job depends on a particular function, ask Mitsubishi Electric for the control specification instead of assuming it is included.
02
The MV1200S has the same 15.7 in (400 mm), 11.8 in (300 mm) and 8.7 in (220 mm) travels, the same 5,952 lb (2,700 kg) weight and the same 51.2 in/min (1,300 mm/min) rapid traverse, on a 25.2 × 17.7 in (640 × 450 mm) table. The MV1200R table is 25.2 × 21.3 in (640 × 540 mm). The rows shown for the two models do not reveal any other difference, so have the builder list them.
03
The MV2400R travels 23.6 in (600 mm) in X, 15.7 in (400 mm) in Y and 12.2 in (310 mm) in Z over a 33.0 × 25.2 in (840 × 640 mm) table, and weighs 7,716 lb (3,500 kg). The MV1200R travels 15.7 in (400 mm), 11.8 in (300 mm) and 8.7 in (220 mm) and weighs 5,952 lb (2,700 kg). Both rapid at 51.2 in/min (1,300 mm/min).
04
Power is 200-230V 3-phase. The footprint is 79.7 × 106.4 in (2,025 × 2,702 mm) and the machine is 79.3 in (2,015 mm) high. It weighs 5,952 lb (2,700 kg) and holds 145 gal (550 L) of dielectric, so the floor has to carry the filled system and the workpiece on top of the machine weight.
05
Wire diameter runs from 0.004–0.012 in (0.1–0.3 mm), and the minimum start hole is 0.02 in (0.5 mm). The generator is listed as the V350-V. The table gives no cutting speed or surface finish figures for any wire size, so ask for test-cut data on your material and thickness.
