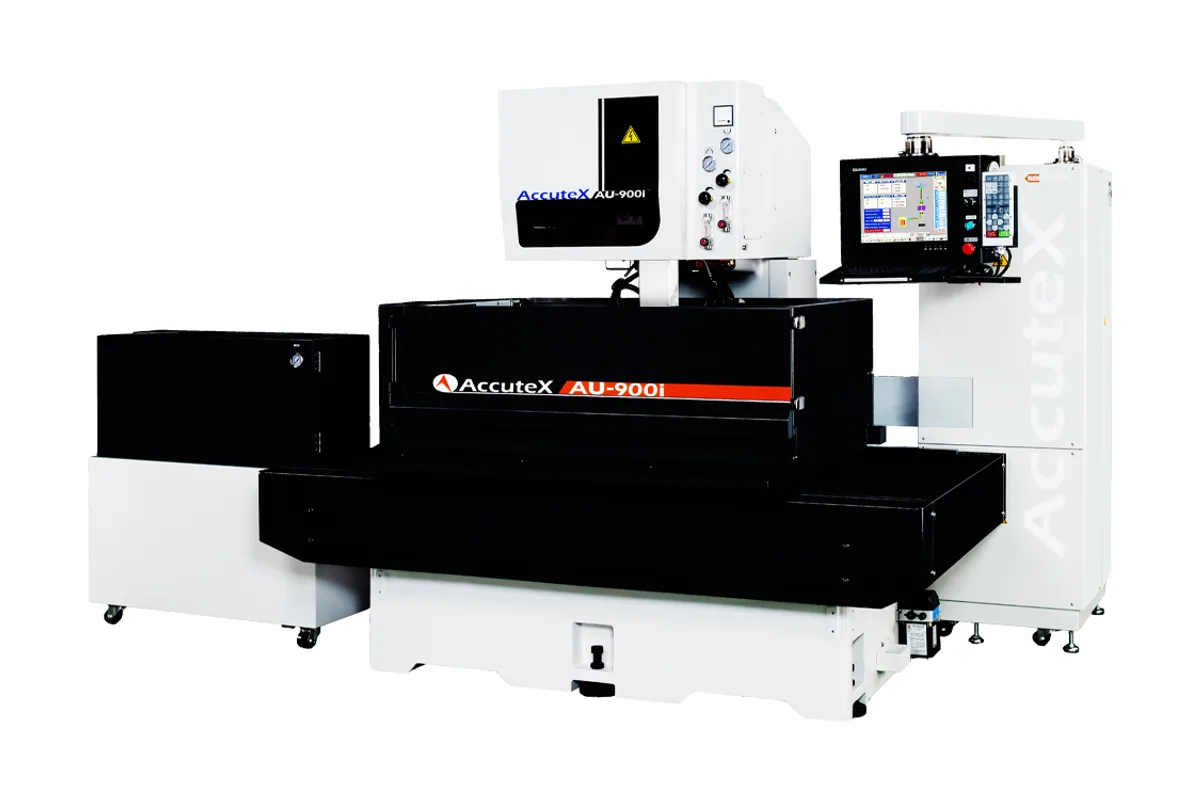

AccuteX AU-900iA
Image: accutex.com.tw, AccuteX
Key Specifications
max workpiece size
max cutting workpiece height
max workpiece weight
x axis travel
y axis travel
uv axis travel
How much does the AccuteX AU-900iA cost?
Price estimate
We do not have a price for the AccuteX AU-900iA that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AU-900iA from AccuteX travels 900 mm (35.4 in) in X and 500 mm (19.7 in) in Y, but the number to read first is the cutting height: 200 mm (7.9 in). The Z stroke is 300 mm (11.8 in) and a workpiece up to 1,335 x 760 x 295 mm (52.6 x 29.9 x 11.6 in) fits the tank, yet AccuteX lists 200 mm (7.9 in) as the maximum height of cutting workpiece. This is a machine for long plates of moderate thickness.
For comparison, the AU-750iA has the same Z stroke and a listed cutting height of 260 mm (10.2 in). Anyone moving up from that size for the extra X travel gives up cutting height, and should check their thickest job against the figure before ordering.
In other respects the two are specified alike. Both take a 16 kg (35 lb) spool, both have a 1,240 L water system and both are rated for an 800 kg (1,764 lb) workpiece. The AU-900iA is the heavier machine at 5,600 kg (12,346 lb), on a footprint of 3,560 x 3,050 x 2,300 mm (140.2 x 120.1 x 90.6 in).
AccuteX describes the generator as electrolysis free, and the controller table lists MOSFET non-electrolysis power with an ignition supply of 32 steps between 53V and 138V. On a large plate that may sit in water through a long program, that is the feature aimed at protecting the surface. Taper capacity is ±21° / H100 with 100 x 100 mm (3.9 x 3.9 in) of U and V travel.
Full Specifications
| Parameter | Value |
|---|---|
| Max Workpiece Size | 1,335 x 760 x 295 mm (52.6 x 29.9 x 11.6 in) (L x W x H) |
| Max Cutting Workpiece Height | 200 mm (7.9 in) |
| Max Workpiece Weight | 800 kg (1,764 lb) |
| X Axis Travel | 900 mm (35.4 in) |
| Y Axis Travel | 500 mm (19.7 in) |
| Uv Axis Travel | 100 x 100 mm (3.9 x 3.9 in) |
| Z Axis Travel | 300 mm (11.8 in) |
| Max Cutting Taper | ±21° / H100 |
| Wire Spool Weight | 16 kg (35 lb) |
| Machine Dimensions | 3,560 x 3,050 x 2,300 mm (140.2 x 120.1 x 90.6 in) (W x D x H) |
| Water System Capacity | 1,240 L |
| Machine Weight | 5,600 kg (12,346 lb) |
| Controller System | Windows |
| Control Device | 64-bit Industrial PC |
| Storage Device | ≥ 30GB SSD |
| Screen Display | 21.5" Color TFT Touch Screen |
| Data Input | Keyboard, Mouse, USB, Ethernet, FTP |
| Controlled Axes | 5 Axes / 6 Axes (Opt. W Axis) |
| Simultaneous Axes | 4 Axes / 5 Axes (Opt. W Axis) |
| Min Command Unit | 0.0001 mm / 0.00001 inch |
| Max Command Range | ±9999.9999 mm |
| Cutting Data Memory | 99999 Sets |
| Power Type | MOSFET Non-electrolysis power |
| Ignition Power Supply | 32 Steps, 53V~138V |
| On Time Settings | 24 Steps |
| Off Time Settings | 43 Steps |
Specifications sourced from accutex.com.tw — verified 2026-10-05
Strengths & Limitations
Strengths
- 900 mm (35.4 in) of X travel with a 16 kg (35 lb) spool and a 1,240 L water system
- Workpiece envelope of 1,335 x 760 x 295 mm (52.6 x 29.9 x 11.6 in)
- Electrolysis-free discharge, with MOSFET non-electrolysis power listed in the controller table
- Footprint depth of 3,050 mm in the listed 3,560 x 3,050 x 2,300 mm (140.2 x 120.1 x 90.6 in)
Limitations
- Maximum cutting height is 200 mm (7.9 in), against 260 mm (10.2 in) on the AU-750iA
- Workpiece weight is 800 kg (1,764 lb); the AU-9iA with the same travels is listed at 1,300 kg (2,866 lb)
- Taper capacity stays at ±21° / H100
- 5,600 kg (12,346 lb) machine weight before water and workpiece
Best For
Frequently Asked Questions
01
200 mm (7.9 in). That is AccuteX's listed maximum height of cutting workpiece. The Z stroke is 300 mm (11.8 in) and the largest workpiece is 1,335 x 760 x 295 mm (52.6 x 29.9 x 11.6 in), so the cutting height, not the stroke, is the limit to plan around.
02
Both travel 900 mm (35.4 in) by 500 mm (19.7 in) with 300 mm (11.8 in) of Z. The AU-9iA is listed with a 1,300 kg (2,866 lb) workpiece and a 10 kg (22 lb) spool. The AU-900iA is listed with 800 kg (1,764 lb), a 16 kg (35 lb) spool and a 1,240 L water system.
03
The controller table lists an ignition power supply of 32 steps from 53V to 138V, 24 on-time steps and 43 off-time steps, with a power type of MOSFET non-electrolysis power. The control stores 99999 sets of cutting data.
04
The footprint is 3,560 x 3,050 x 2,300 mm (140.2 x 120.1 x 90.6 in) as width, depth and height. The machine weighs 5,600 kg (12,346 lb), and the water system holds 1,240 L, which has to be added to the floor load along with the workpiece.
