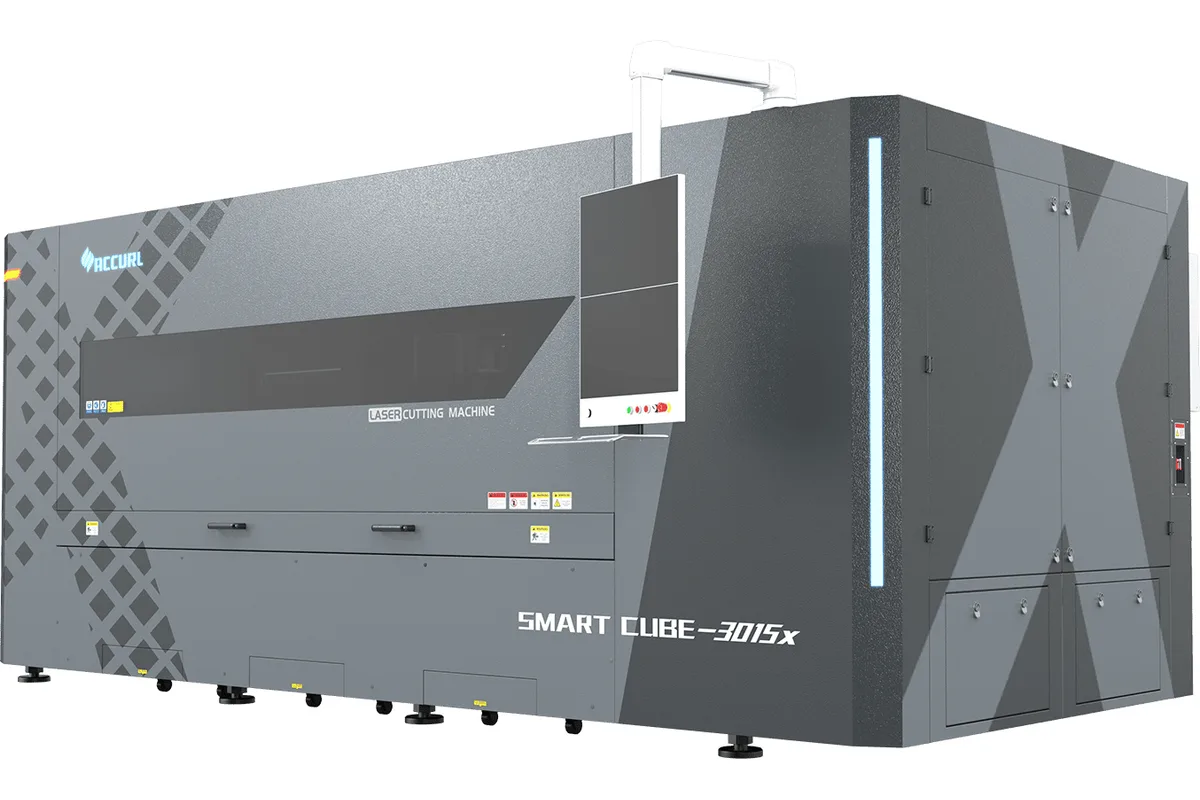

Accurl SMART Cube X 1001.20
Image: accurl.com, Accurl
Key Specifications
Accuracy
Repeatability
work area length
work area width
max workpiece weight
automatic shuttle table
How much does the Accurl SMART Cube X 1001.20 cost?
Price estimate
We do not have a price for the Accurl SMART Cube X 1001.20 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl SMART Cube X 1001.20 is the smallest machine on Accurl's X-Series laser platform, with a work area listed as 1,050 mm (41.3 in) in length and 2,035 mm (80.1 in) in width and a maximum workpiece weight of 350 kg (772 lb). It is a fiber laser with an automatic shuttle table included as standard, which is uncommon at this size.
Small-format machines are normally bought for space, and that is the argument here. Accurl describes a weight-optimized, highly rigid construction with a low center of gravity. The gantry is structural steel, the X and Y axes run on linear guides with helical toothed racks driven on both sides, and traverse speed is up to 120,000 mm/min. Positioning accuracy is ± 0.03 mm and repeatability ± 0.05 mm, both according to VDI/DGQ 3441.
Laser sources with an output of 2 to 12 kW are offered for the SMART Cube X. The sheet thickness table starts at 3 kW with 18 mm (0.71 in) of mild steel and 10 mm (0.39 in) of stainless, and reaches 30 mm (1.18 in) in both at 12 kW. On a table limited to 350 kg (772 lb), thick plate uses up the weight allowance quickly, so Accurl's note to select the sheet format according to the permissible workpiece weight applies with full force to this model.
Buyers choose between two component sets. The cutting head is a THERMACUT Ex-Trabeam or a BOCHU BLT, the control an MSE SmartControl or a TWINCUT S80, and the servo drives Eckelmann or Yaskawa. The operator works at two 21.5" multitouch panels.
Full Specifications
| Parameter | Value |
|---|---|
| Work Area Length | 1,050 mm (41.3 in) |
| Work Area Width | 2,035 mm (80.1 in) |
| Max Workpiece Weight | 350 kg (772 lb) |
| Automatic Shuttle Table | Included as standard |
| Cutting Process | Fiber laser |
| Max Laser Source Power | 12 kW |
| Traverse Speed | up to 120,000 mm/min |
| Positioning Accuracy | ± 0.03 mm according to VDI/DGQ 3441 |
| Repeatability | ± 0.05 mm according to VDI/DGQ 3441 |
| Xy Axis Drive | linear guides, driven on both sides and helical toothed racks |
| Z Axis Drive | rack |
| Gantry Type | structural steel gantry |
| CNC Control | MSE SmartControl / TWINCUT S80 |
| Main Control Panel | ergonomic 2 x 21.5" TFT multitouch panel |
| Operating System | Windows 11 LTSC / Windows 10 LTSC |
| Max Sheet Thickness Mild Steel | 18 mm (0.71 in) at 3 kW; 25 mm (0.98 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Stainless Steel | 10 mm (0.39 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Aluminium | 12 mm (0.47 in) at 3 kW; 20 mm (0.79 in) at 6 kW; 30 mm (1.18 in) at 12 kW |
| Max Sheet Thickness Brass | 6 mm (0.24 in) at 3 kW; 15 mm (0.59 in) at 6 kW; 20 mm (0.79 in) at 12 kW |
| Max Sheet Thickness Copper | 5 mm (0.20 in) at 3 kW; 10 mm (0.39 in) at 6 kW; 15 mm (0.59 in) at 12 kW |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Smallest work area in the X-Series: 1,050 mm (41.3 in) by 2,035 mm (80.1 in)
- Automatic shuttle table included as standard
- Traverse speed up to 120,000 mm/min with ± 0.03 mm positioning accuracy
- Laser sources from 2 to 12 kW are available for the series
- Choice of MSE SmartControl or TWINCUT S80 control
Limitations
- Maximum workpiece weight is 350 kg (772 lb), the lowest of the three SMART Cube X sizes
- Repeatability of ± 0.05 mm is looser than the ± 0.02 mm of the SmartLINE X 3001.15
- Accurl publishes no overall machine dimensions for the SMART Cube X models
- Common large sheet formats do not fit; stock must be bought or sheared to size
Best For
Frequently Asked Questions
01
Accurl's table lists a work area of 1,050 mm (41.3 in) under length and 2,035 mm (80.1 in) under width, with a maximum permissible workpiece weight of 350 kg (772 lb). It is the smallest of the three SMART Cube X sizes.
02
Accurl offers sources of 2 to 12 kW for the SMART Cube X. The thickness table gives mild steel at 18 mm (0.71 in) with 3 kW, 25 mm (0.98 in) with 6 kW and 30 mm (1.18 in) with 12 kW, subject to the table's weight limit.
03
Yes. An automatic shuttle table is listed as included as standard for the whole SMART Cube X series, so one pallet can be unloaded and reloaded outside the enclosure while the other is being cut.
04
Either the MSE SmartControl or the TWINCUT S80, running on Windows 11 LTSC or Windows 10 LTSC respectively as Accurl lists them. The main control panel is described as an ergonomic 2 x 21.5" TFT multitouch panel.
