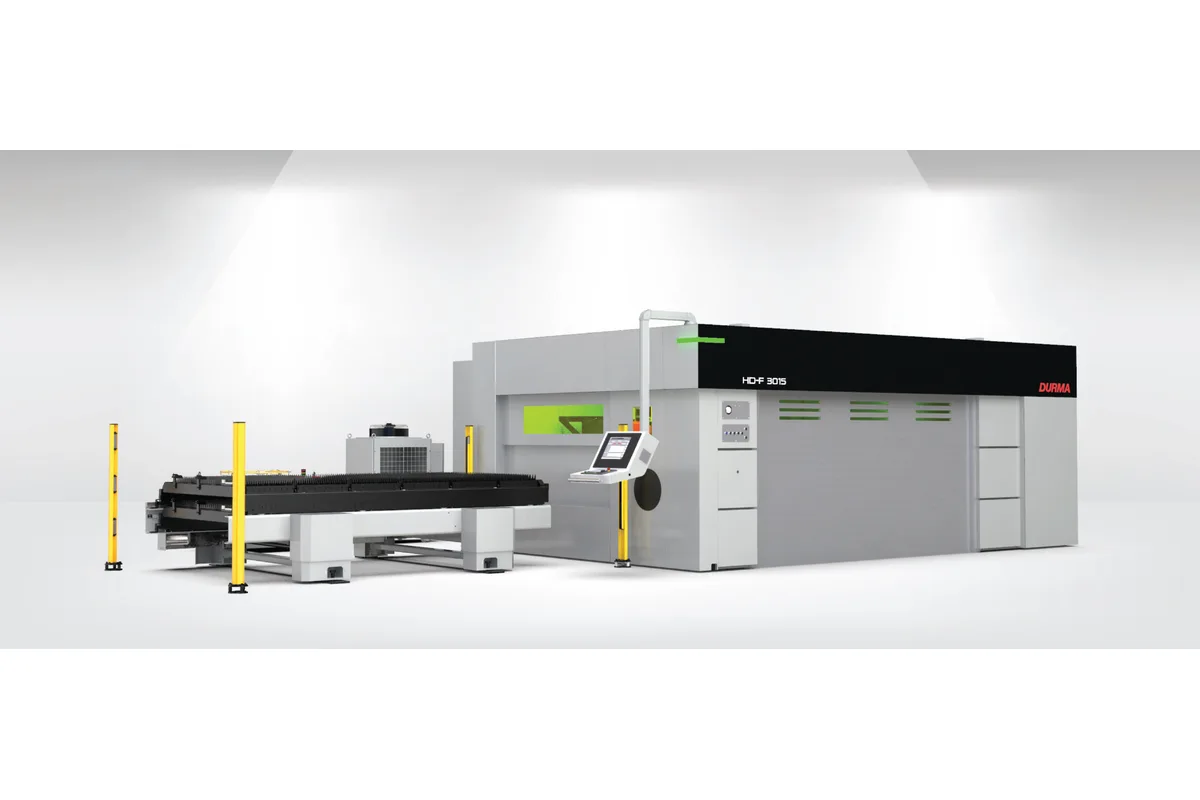

Durma HD-F 3015 VI
Image: durmazlar.com.tr, Durma
Key Specifications
Accuracy
Repeatability
x axis travel
y axis travel
z axis travel
max sheet size
How much does the Durma HD-F 3015 VI cost?
Price estimate
We do not have a price for the Durma HD-F 3015 VI that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Durma HD-F 3015 VI is a flat-bed fiber laser cutting machine for 3,048 x 1,524 mm (120.0 x 60.0 in) sheet, and the fastest of Durma's rack-and-pinion lasers. Its axes travel 3,100 mm (122.0 in) in X, 1,525 mm (60.0 in) in Y and 160 mm (6.3 in) in Z. Each of X and Y reaches 120 m/min, and with both moving together the head runs at 170 m/min with 28 m/s² of synchronized acceleration.
Those dynamics matter most on thin sheet with many short moves, where the machine spends its time accelerating rather than cutting at full feed. Durma attributes them to helical racks with low clearance and to motors that drive the pinions without intermediate elements. Positioning accuracy and repeatability are both listed at ±0.03 mm. The HD-FN 3015, which shares the sheet size, is listed at 141 m/min, 14 m/s² and ±0.05 mm.
A servo controlled shuttle table is standard on this size, and Durma says it cuts changeover times by 40%. No hydraulic oil is involved in the table change. Each table carries up to 480 kg/m². Under the cutting area the scrap falls into two compartments with collection drawers; two conveyors, one per compartment, can replace the drawers as an option.
Several things a buyer may assume are options: the ± 45 ° bevel head, the automatic nozzle changer with its 25 stations, Durma Auto Nozzle Centering and the D-MIX oxygen and nitrogen gas mix. The brochure's HD-F table gives no laser power for this model, so the source and its cutting thicknesses have to be settled in the quotation.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,100 mm (122.0 in) |
| Y Axis Travel | 1,525 mm (60.0 in) |
| Z Axis Travel | 160 mm (6.3 in) |
| Max Sheet Size | 3,048 x 1,524 mm (120.0 x 60.0 in) |
| Max Sheet Weight | 480 kg/m² (single table) |
| Max Speed X Axis | 120 m/min |
| Max Speed Y Axis | 120 m/min |
| Max Synchronized Speed X Y | 170 m/min |
| Max Synchronized Acceleration X Y | 28 m/s² |
| Positioning Accuracy | ±0.03 mm |
| Repeatability | ±0.03 mm |
Specifications sourced from durmazlar.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 170 m/min synchronized speed and 28 m/s² synchronized acceleration on rack-and-pinion drives
- Positioning accuracy and repeatability of ±0.03 mm
- Servo controlled shuttle table is standard on the 3015 size, with no hydraulic oil used
- Cutting head with motorized automatic focus position adjustment and a single focus lens for thin and thick material
- Two-compartment scrap collection with drawers, upgradable to conveyors
Limitations
- Sheet size stops at 3,048 x 1,524 mm (120.0 x 60.0 in); larger plates need a bigger machine
- Bevel head, automatic nozzle changer and auto nozzle centering are options, not base equipment
- The HD-F table states no laser power or machine weight for this model
- Z travel is 160 mm (6.3 in), which limits formed or raised parts on the table
Best For
Frequently Asked Questions
01
Durma lists a maximum speed of 120 m/min on the X axis and 120 m/min on the Y axis. The maximum synchronized speed with both axes is 170 m/min and the synchronized acceleration is 28 m/s². Positioning accuracy and repeatability are each ±0.03 mm.
02
The maximum sheet size is 3,048 x 1,524 mm (120.0 x 60.0 in), inside axis travels of 3,100 mm (122.0 in) by 1,525 mm (60.0 in). The maximum sheet weight is given per area: 480 kg/m² on a single table.
03
Yes. Durma states that the servo controlled shuttle table is standard on the HD-F 3015 and an option on the HD-F 4020. It describes the table as fully automatic and maintenance free, working without hydraulic oil, and credits it with a 40% reduction in changeover time.
04
Both take 3,048 x 1,524 mm (120.0 x 60.0 in) sheet. The HD-FN 3015 is listed at 100 m/min per axis, 141 m/min synchronized, 14 m/s² and ±0.05 mm. The HD-F 3015 VI reaches 170 m/min and 28 m/s² at ±0.03 mm, so it suits work where positioning time dominates the cycle.
05
A bevel head for cuts up to ± 45 °, an automatic nozzle changer with 25 stations that also cleans and calibrates the nozzle, Durma Auto Nozzle Centering, which uses a camera to bring the beam to the nozzle centre, and D-MIX gas, a mix of oxygen and nitrogen for mild steel.
