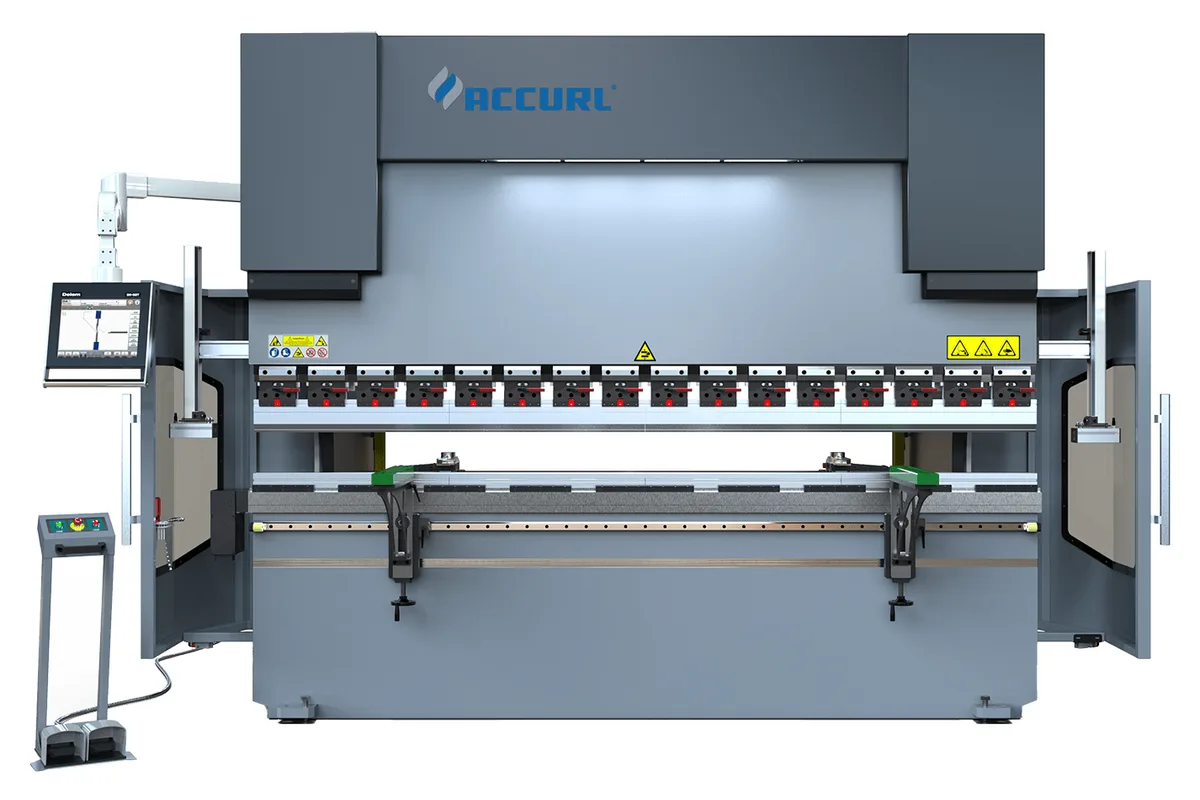

Accurl EURO-PRO B 30320
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 30320 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 30320 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO-PRO B 30320 is the strongest three-metre machine of the series, rated 3,200 kN. Its name breaks the pattern of the table, but its bending length is 3,200 mm (126 in), the same as every other three-metre EURO-PRO.
At this capacity the character of the series changes. The ram is noticeably slower: 120 mm/s on approach, 8 mm/s in the bend, 85 mm/s on return. The motor is 22 kW (29.5 hp), no larger than on the EURO-PRO B 32250, which has 2,500 kN and approaches at 160 mm/s.
In return the buyer gets the most open three-metre frame of the range. The stroke is 300 mm (11.8 in). Daylight is 560 mm (22 in). Under the ram there is room for tall gooseneck punches, for dies on raised holders, and for the deep parts that heavy fabrication produces.
The machine weighs 20,000 kg (44,092 lb). It measures 4,300 mm (169.3 in) by 2,150 mm (84.6 in) and is 3,360 mm (132.3 in) high, with the table at 1,160 mm (45.7 in).
This is not a brake for light parts in volume. It is for a fabricator whose daily work is plate.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 3,200 kN |
| Bending Length | 3,200 mm (126 in) |
| Distance Between Side Frames | 2,700 mm (106.3 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 560 mm (22 in) |
| Stroke | 300 mm (11.8 in) |
| Table Height | 1,160 mm (45.7 in) |
| Table Width | 180 mm (7.1 in) |
| Approach Speed | 120 mm/s |
| Bending Speed | 8 mm/s |
| Return Speed | 85 mm/s |
| Motor Power | 22 kW (29.5 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,300 mm (169.3 in) |
| Machine Width | 2,150 mm (84.6 in) |
| Machine Height | 3,360 mm (132.3 in) |
| Machine Weight | 20,000 kg (44,092 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,200 kN on a three-metre bed
- 300 mm (11.8 in) stroke and 560 mm (22 in) daylight
- 22 kW (29.5 hp) motor, modest for the force
- 180 mm (7.1 in) table width
Limitations
- Slow ram: 120 mm/s approach, 85 mm/s return
- Bending speed limited to 8 mm/s
- Table height of 1,160 mm (45.7 in)
- 20,000 kg (44,092 lb) and 3,360 mm (132.3 in) high
Best For
Frequently Asked Questions
01
The table gives a bending length of 3,200 mm (126 in) and 2,700 mm (106.3 in) between the side frames, the same as the other three-metre models. Only the model name differs from their pattern.
02
Maximum bending speed is 8 mm/s, fast approach 120 mm/s and return 85 mm/s. The EURO-PRO B 32250 with 2,500 kN bends at 10 mm/s.
03
Daylight is 560 mm (22 in) and the stroke 300 mm (11.8 in). The gap in the frames is 400 mm (15.7 in), unchanged from the lighter three-metre machines.
04
The EURO-PRO B 32250 has 2,500 kN, a 250 mm (9.8 in) stroke and a 160 mm/s approach at 16,000 kg (35,273 lb). This model has 3,200 kN, a 300 mm (11.8 in) stroke and a 120 mm/s approach at 20,000 kg (44,092 lb).
