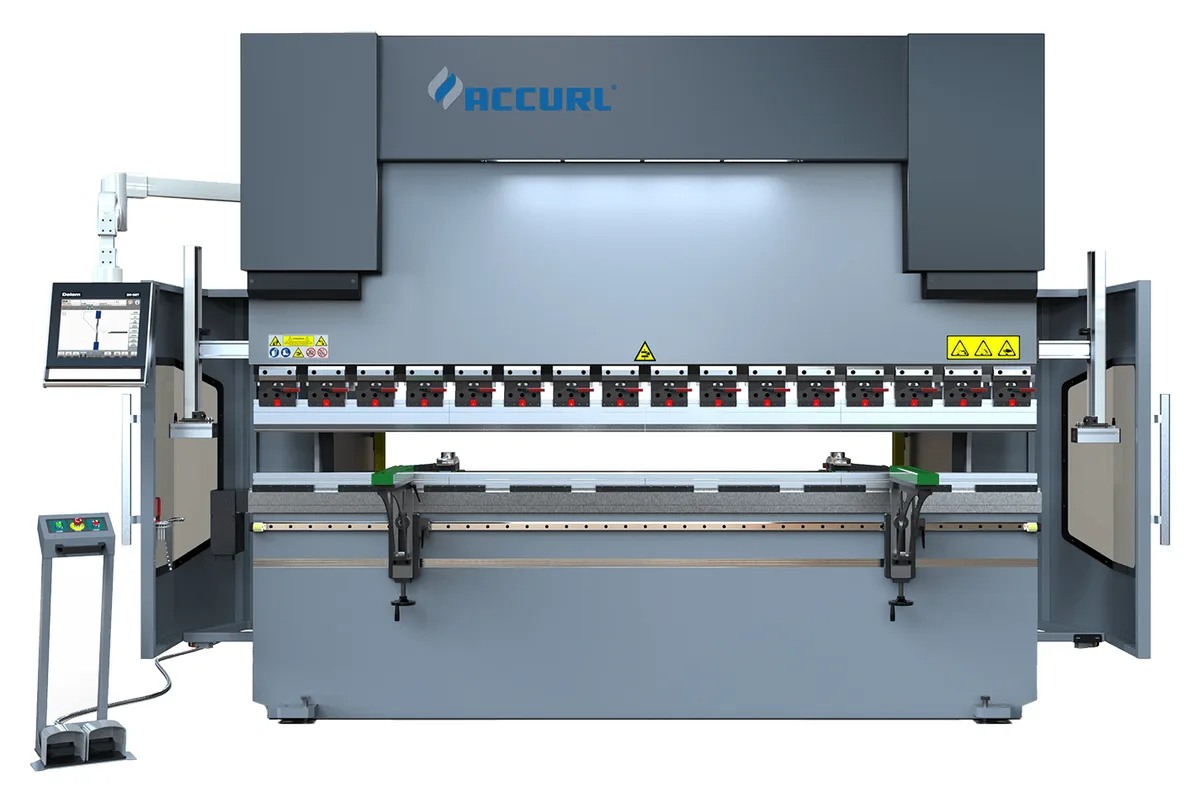

Accurl EURO-PRO B 40175
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 40175 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 40175 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For medium-gauge work on long parts, the Accurl EURO-PRO B 40175 pairs 1,750 kN with a bending length of 4,000 mm (157.5 in). It weighs 12,000 kg (26,455 lb), a fifth more than the EURO-PRO B 40135 at 10,000 kg (22,046 lb).
Trailer side rails, container sections, lighting columns in medium wall and long machine guards are typical. Each needs a force that the two lighter four-metre models do not have, without the size and mass of the heavier frames further up the table.
Ram speeds are 180 mm/s on approach, 10 mm/s in the bend and 140 mm/s on return, with an 11 kW (14.8 hp) motor. Stroke is 200 mm (7.9 in) and daylight 430 mm (16.9 in).
One number in this row should be confirmed before a layout is drawn. The machine length is printed as 4,500 mm (177.2 in). The lighter EURO-PRO B 40135, on the same bending length, is printed at 4,800 mm (189 in). Width is 1,900 mm (74.8 in) and height 2,750 mm (108.3 in).
The backgauge stroke is 750 mm (29.5 in). For long flanges Accurl lists an X axis of 1000 mm with light barrier back protection as optional equipment, and for parts gauged at an angle a Delta X5 axis.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,750 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Distance Between Side Frames | 3,300 mm (129.9 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 430 mm (16.9 in) |
| Stroke | 200 mm (7.9 in) |
| Table Height | 940 mm (37 in) |
| Table Width | 100 mm (3.9 in) |
| Approach Speed | 180 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 140 mm/s |
| Motor Power | 11 kW (14.8 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,500 mm (177.2 in) |
| Machine Width | 1,900 mm (74.8 in) |
| Machine Height | 2,750 mm (108.3 in) |
| Machine Weight | 12,000 kg (26,455 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,750 kN across 4,000 mm (157.5 in)
- 12,000 kg (26,455 lb), well below the 17,000 kg (37,478 lb) of the EURO-PRO B 40220
- Modest 11 kW (14.8 hp) motor for the force
- 3,300 mm (129.9 in) between the side frames
Limitations
- Printed length of 4,500 mm (177.2 in) is shorter than lighter four-metre models and needs confirming
- Return speed of 140 mm/s, down from 160 mm/s on the EURO-PRO B 40135
- Stroke of 200 mm (7.9 in) limits the depth of formed parts
- Longer backgauge travel is an option
Best For
Frequently Asked Questions
01
12,000 kg (26,455 lb) by the table. The outline is given as 4,500 mm (177.2 in) long, 1,900 mm (74.8 in) wide and 2,750 mm (108.3 in) high, all marked as approximate.
02
The table lists a backgauge stroke of 750 mm (29.5 in). An X axis of 1000 mm is in the optional equipment list, with light barrier back protection.
03
The EURO-PRO B 40220 has 2,200 kN, an 18.5 kW (24.8 hp) motor and 470 mm (18.5 in) of daylight, and weighs 17,000 kg (37,478 lb). Approach and return speeds are the same on both.
04
Accurl lists it among the options as "Delta X5 axis ± 125 mm with CNC Controlled". It offsets one backgauge finger against the other so that tapered parts can be gauged.
