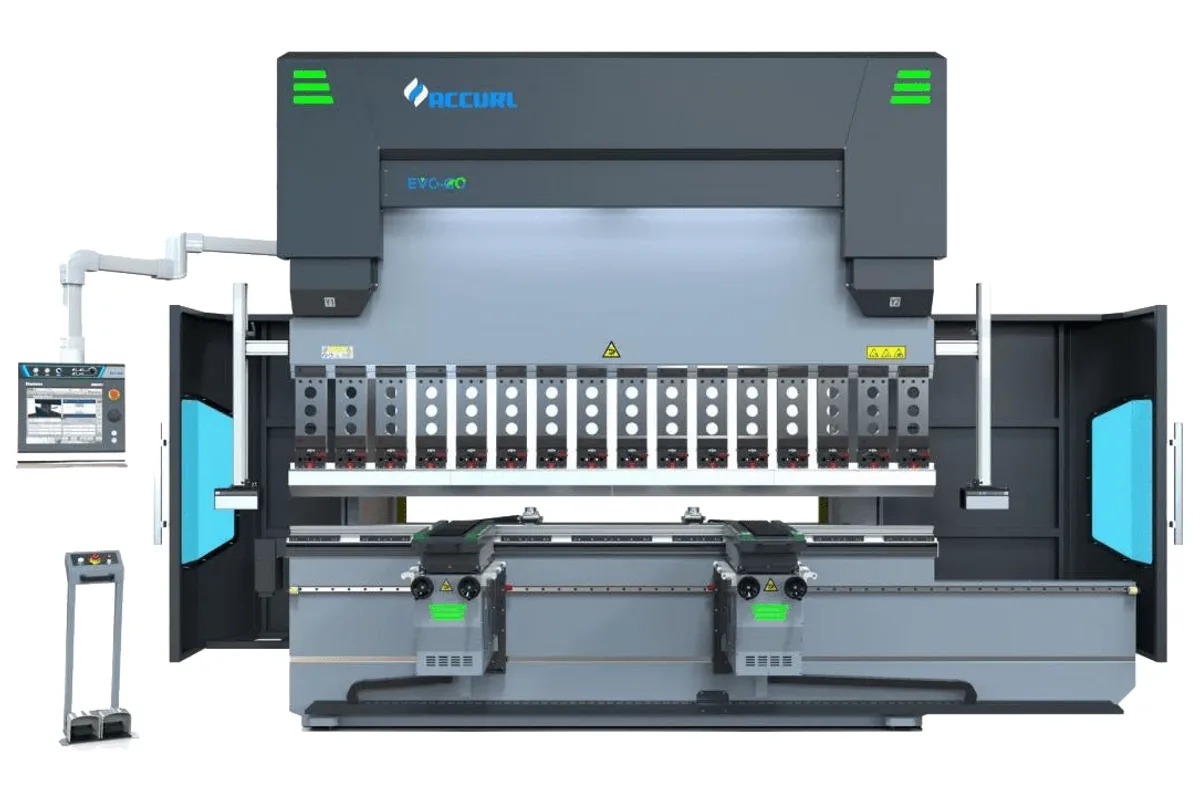

Accurl EURO GENIUS B40135H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B40135H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B40135H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Four metres begin with the Accurl EURO GENIUS B40135H. It has a bending length of 4,000 mm (157.5 in) and a capacity of 1,350 kN, the lightest rating Accurl gives a machine of this length in the series.
The longer ram costs a little speed. Approach is 190 mm/s and return 160 mm/s; the three-metre EURO GENIUS B32135H with the same 11 kW (14.8 hp) motor is listed at 200 mm/s and 180 mm/s. Bending speed is 0-10 mm/s.
Long and light is the profile of the work. Roofing and facade sections, long trays, vehicle body panels and lighting profiles all need the length more than the force. For such parts the standard equipment matters as much as the tonnage: CNC motorized wave crowning keeps the angle constant along the bed, and sheet metal frontal supports are on the list. A sheet following system, AP3-AP4, is optional.
Geometry is unchanged from the shorter machines, with 450 mm (17.7 in) of throat depth, 550 mm (21.7 in) of daylight and a 300 mm (11.8 in) stroke.
The machine weighs 11,000 kg (24,250 lb) and measures 4,880 mm (192.1 in) by 1,860 mm (73.2 in), standing 2,970 mm (116.9 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,350 kN |
| Bending Length | 4,000 mm (157.5 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 550 mm (21.7 in) |
| Stroke | 300 mm (11.8 in) |
| Approach Speed | 190 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 11 kW (14.8 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 4,880 mm (192.1 in) |
| Machine Width | 1,860 mm (73.2 in) |
| Machine Height | 2,970 mm (116.9 in) |
| Machine Weight | 11,000 kg (24,250 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 4,000 mm (157.5 in) of bending length at 11,000 kg (24,250 lb)
- 190 mm/s approach on a four-metre ram
- CNC motorized wave crowning as standard
- Runs on an 11 kW (14.8 hp) motor
Limitations
- 1,350 kN is light for full-length bends on 4,000 mm (157.5 in)
- Return speed falls to 160 mm/s
- Backgauge stroke of 800 mm (31.5 in) on a long machine
- Sheet following system is optional equipment
Best For
Frequently Asked Questions
01
4,000 mm (157.5 in). The throat depth of 450 mm (17.7 in) applies to parts that extend past the side frames; the catalogue table does not print the distance between the frames.
02
The EURO GENIUS B40175H has 1,750 kN and a 15 kW (20.1 hp) motor, approaches at 180 mm/s and weighs 12,650 kg (27,888 lb). This model has 1,350 kN, 11 kW (14.8 hp) and approaches at 190 mm/s.
03
Sheet metal frontal supports are standard equipment. The AP3-AP4 sheet following system and additional sliding front support arms are listed as options, which are worth pricing for four-metre panels.
04
The catalogue gives 4,880 mm (192.1 in) in length and 1,860 mm (73.2 in) in width, with a height of 2,970 mm (116.9 in). Add room behind for the backgauge and in front for the sheet.
