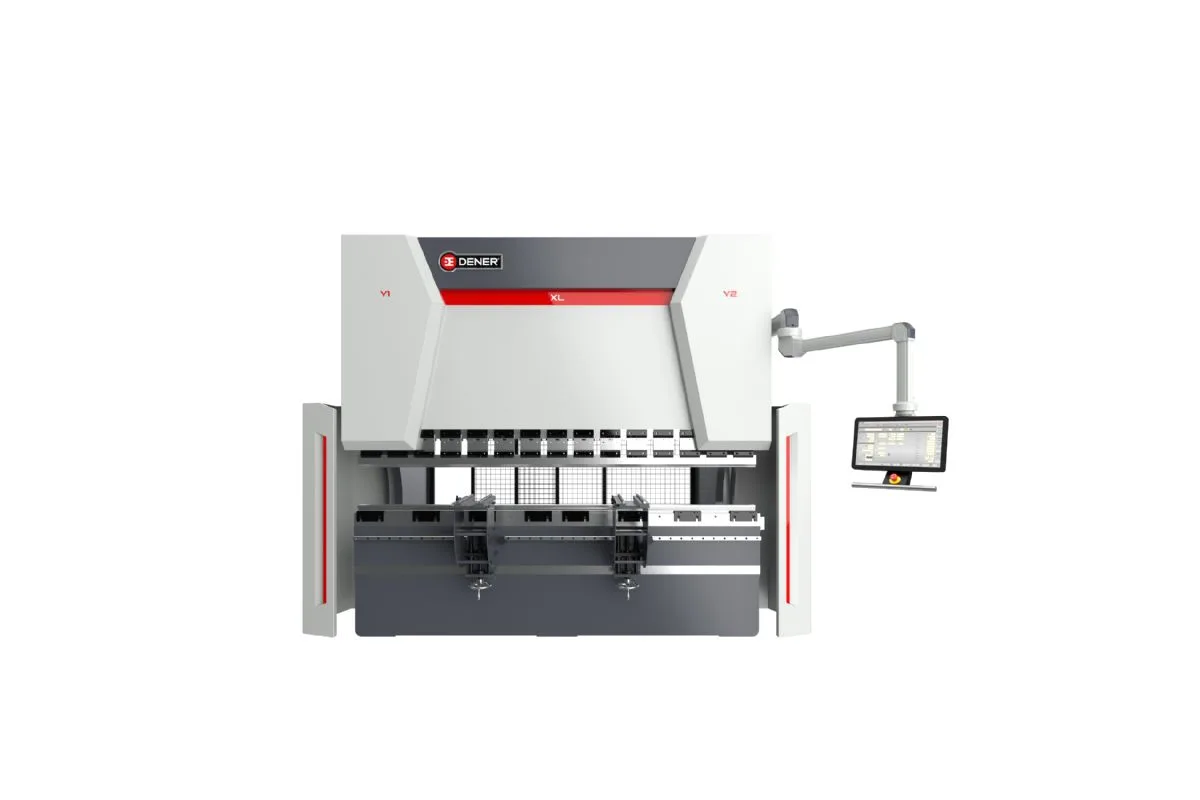

Dener XL 60600
Image: en.dener.com, Dener
Key Specifications
bending length
bending capacity
approach speed
return speed
stroke
daylight
How much does the Dener XL 60600 cost?
Price estimate
We do not have a price for the Dener XL 60600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Dener XL 60600 tops the Smart XL hydraulic press brake table with 600 ton over a 6,050 mm (238.2 in) bending length. Nothing else in the series comes near its scale: the machine weighs 51,700 kg (113,977 lb).
It has the largest opening Dener lists for an XL. The stroke is 450 mm, the daylight 680 mm and the throat depth 600 mm. Heavy plate needs wide dies and tall punches, and parts of that weight are turned with lifting gear, so the room around the tooling is as important as the force.
The drive is a 45 kW (60.3 hp) main motor with a 600 lt oil tank. Approach and return speeds are 60 mm/sec. The page prints a bending speed for this size that cannot be right against the rest of the table, so no working speed is quoted here; ask Dener for it.
Installation is a project of its own. Length is 7,145 mm, width with front supports 3,275 mm and maximum height 3,910 mm, which exceeds many workshop doors and some crane hook heights. Transport, foundation and the electrical supply should all be settled with the manufacturer before the order.
The side frames are 5,100 mm apart.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 6,050 mm (238.2 in) |
| Bending Capacity | 600 ton |
| Approach Speed | 60 mm/sec |
| Return Speed | 60 mm/sec |
| Stroke | 450 mm (17.7 in) |
| Daylight | 680 mm (26.8 in) |
| Throat Depth | 600 mm (23.6 in) |
| Distance Between Side Frames | 5,100 mm (200.8 in) |
| Machine Length | 7,145 mm (281.3 in) |
| Machine Width | 3,275 mm (128.9 in) |
| Width Without Front Support | 2,800 mm (110.2 in) |
| Maximum Height | 3,910 mm (153.9 in) |
| Main Motor Power | 45 kW (60.3 hp) |
| Oil Tank | 600 lt |
| Machine Weight | 51,700 kg (113,977 lb) |
Specifications sourced from en.dener.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 600 ton, the highest capacity in the XL series
- 450 mm stroke and 680 mm daylight, the largest opening in the table
- 600 mm throat depth with 5,100 mm between the side frames
- 45 kW (60.3 hp) main motor and a 600 lt oil tank
Limitations
- 51,700 kg (113,977 lb): foundation and transport are major items
- Maximum height of 3,910 mm
- Approach and return limited to 60 mm/sec
- The standard equipment list is the same two-axis backgauge and manual crowning as on small XL models
Best For
Frequently Asked Questions
01
It is rated at 600 ton over a bending length of 6,050 mm (238.2 in), driven by a 45 kW (60.3 hp) main motor with a 600 lt oil tank.
02
A stroke of 450 mm, daylight of 680 mm and a throat depth of 600 mm. The XL 60400 below it has a 400 mm stroke and 650 mm daylight.
03
7,145 mm long, 3,275 mm wide with the front supports (2,800 mm without) and 3,910 mm high. The weight is 51,700 kg (113,977 lb).
04
The specification table gives 60 mm/sec for approach and return. The bending speed printed for this size does not fit the rest of the series, so it should be confirmed with Dener.
