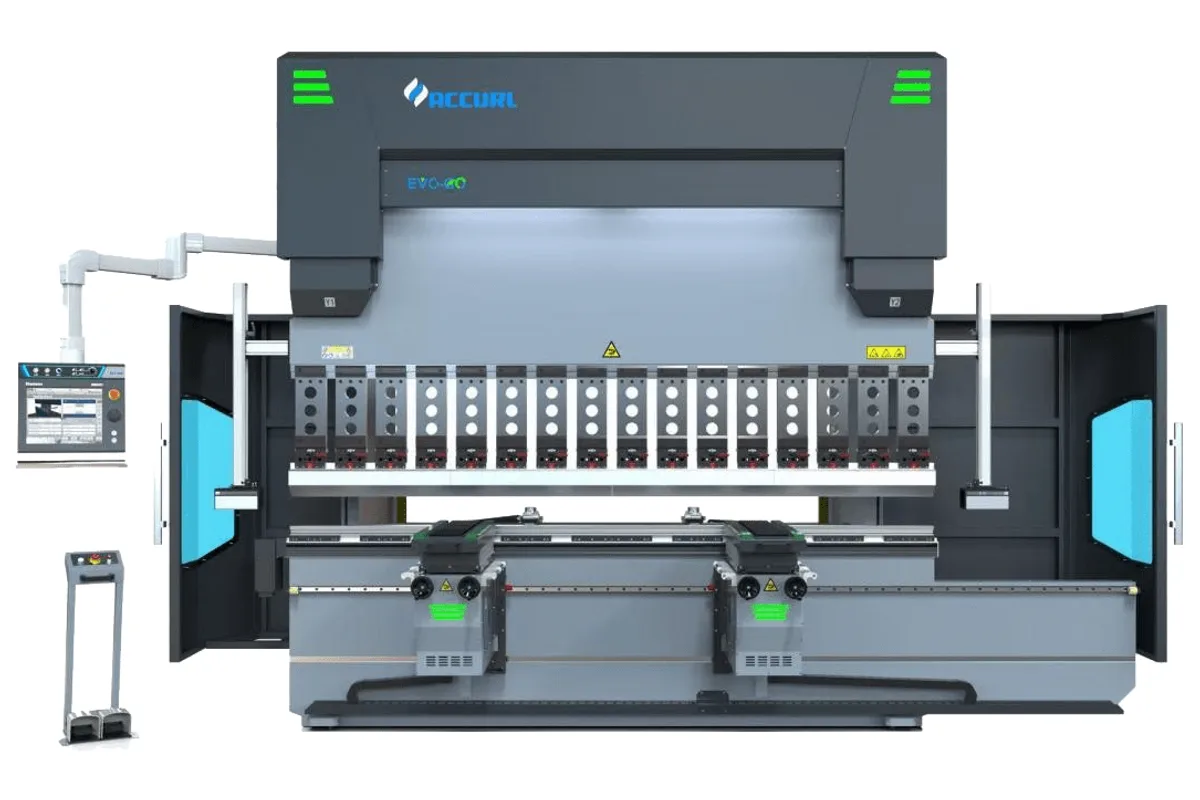

Accurl EURO GENIUS B32220H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B32220H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B32220H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B32220H is the last three-metre model on the standard opening. It has 2,200 kN on 3,200 mm (126 in) and keeps the 550 mm (21.7 in) daylight and 300 mm (11.8 in) stroke of the lighter sizes; from the next capacity step the series grows taller.
An 18.5 kW (24.8 hp) motor drives it. Approach is 180 mm/s, return 150 mm/s, bending 0-10 mm/s.
This is a compact way to get serious force. At 13,500 kg (29,762 lb) it is well below the 17,300 kg (38,139 lb) of the EURO GENIUS B32250H, and it is quicker in both directions than that model. The trade is in tool space, where the EURO GENIUS B32250H has 600 mm (23.6 in) of daylight and a 350 mm (13.8 in) stroke.
So the question for a buyer is simple. Are the heavy parts also deep? If they are plates, brackets, gussets and shallow channels, this model does them faster. If they are deep boxes in thick material, go one size up.
The table lists a backgauge stroke of 800 mm (31.5 in) and a throat depth of 450 mm (17.7 in). Dimensions are 4,320 mm (170.1 in) long, 1,930 mm (76 in) wide and 3,240 mm (127.6 in) high.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 2,200 kN |
| Bending Length | 3,200 mm (126 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 550 mm (21.7 in) |
| Stroke | 300 mm (11.8 in) |
| Approach Speed | 180 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 150 mm/s |
| Motor Power | 18.5 kW (24.8 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 4,320 mm (170.1 in) |
| Machine Width | 1,930 mm (76 in) |
| Machine Height | 3,240 mm (127.6 in) |
| Machine Weight | 13,500 kg (29,762 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,200 kN in a machine of 13,500 kg (29,762 lb)
- 180 mm/s approach and 150 mm/s return
- 18.5 kW (24.8 hp) motor with stand-by function
- HOERBIGER hydraulic valve block, pump and valves are listed as standard
Limitations
- Daylight of 550 mm (21.7 in) and stroke of 300 mm (11.8 in) do not grow with the capacity
- Height of 3,240 mm (127.6 in)
- Backgauge stroke of 800 mm (31.5 in)
Best For
Frequently Asked Questions
01
The EURO GENIUS B32250H has 2,500 kN, 600 mm (23.6 in) of daylight, a 350 mm (13.8 in) stroke and a 22 kW (29.5 hp) motor, and returns at 110 mm/s. This model has 2,200 kN, 550 mm (21.7 in), 300 mm (11.8 in) and 18.5 kW (24.8 hp), and returns at 150 mm/s.
02
2,200 kN over a bending length of 3,200 mm (126 in), with a throat depth of 450 mm (17.7 in) and a daylight opening of 550 mm (21.7 in).
03
Yes. The EURO GENIUS B40220H bends 4,000 mm (157.5 in) and the EURO GENIUS B60220H bends 6,000 mm (236.2 in), both at 2,200 kN and both with a 320 mm (12.6 in) stroke.
04
Length 4,320 mm (170.1 in), width 1,930 mm (76 in), height 3,240 mm (127.6 in), weight 13,500 kg (29,762 lb). Accurl marks these values as approximate.
