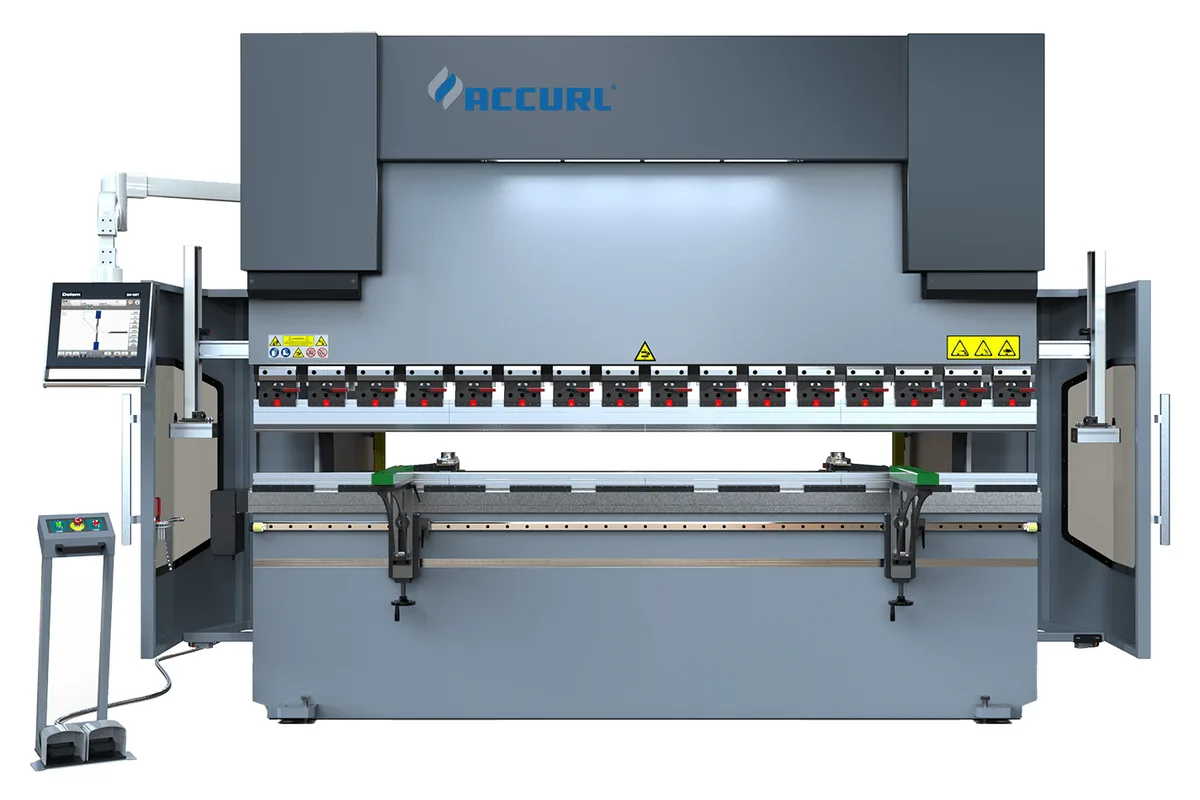

Accurl EURO-PRO B 32250
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 32250 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 32250 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO-PRO B 32250 is the first model of the series with a longer stroke. The ram travels 250 mm (9.8 in), the daylight opens to 500 mm (19.7 in), and the capacity is 2,500 kN over 3,200 mm (126 in).
Every EURO-PRO below it has a shorter stroke. That makes this the smallest machine in the table for work that is both thick and deep: heavy channels with tall legs, hoppers, and boxes in plate. The table is 180 mm (7.1 in) wide, which gives large dies a proper seat.
A 22 kW (29.5 hp) motor drives the ram. The approach speed comes down to 160 mm/s, while the return holds at 140 mm/s and bending at 10 mm/s.
It is an odd detail of the table that this machine, at 16,000 kg (35,273 lb), is listed only slightly heavier than the EURO-PRO B 32220 at 15,000 kg (33,069 lb). The frame is clearly larger in other respects. It stands 3,180 mm (125.2 in) high, is 2,000 mm (78.7 in) wide and 4,300 mm (169.3 in) long, and the working table is 1,080 mm (42.5 in) from the floor.
Standard equipment includes rear safety barriers and, at the front, an AKAS LC-II F safety laser or DSP safety.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 2,500 kN |
| Bending Length | 3,200 mm (126 in) |
| Distance Between Side Frames | 2,700 mm (106.3 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 500 mm (19.7 in) |
| Stroke | 250 mm (9.8 in) |
| Table Height | 1,080 mm (42.5 in) |
| Table Width | 180 mm (7.1 in) |
| Approach Speed | 160 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 140 mm/s |
| Motor Power | 22 kW (29.5 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,300 mm (169.3 in) |
| Machine Width | 2,000 mm (78.7 in) |
| Machine Height | 3,180 mm (125.2 in) |
| Machine Weight | 16,000 kg (35,273 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 250 mm (9.8 in) stroke and 500 mm (19.7 in) daylight
- 2,500 kN on 3,200 mm (126 in)
- Table 180 mm (7.1 in) wide
- 22 kW (29.5 hp) motor with 140 mm/s return
Limitations
- Approach speed drops to 160 mm/s
- Table height of 1,080 mm (42.5 in) for heavy parts
- Machine height of 3,180 mm (125.2 in)
- Backgauge stroke is 750 mm (29.5 in)
Best For
Frequently Asked Questions
01
250 mm (9.8 in), with a daylight opening of 500 mm (19.7 in). The EURO-PRO B 32220 below it has a 200 mm (7.9 in) stroke and 470 mm (18.5 in) of daylight.
02
3,180 mm (125.2 in) according to the table. Length is 4,300 mm (169.3 in) and width 2,000 mm (78.7 in). Allow for lifting gear above that height during installation.
03
A 22 kW (29.5 hp) motor. The ram approaches at 160 mm/s, bends at up to 10 mm/s and returns at 140 mm/s. Accurl lists a stand-by function for the drive as standard.
04
One: the EURO-PRO B 30320 with 3,200 kN, a 300 mm (11.8 in) stroke and 560 mm (22 in) of daylight, which is slower at 120 mm/s on approach and 85 mm/s on return.
