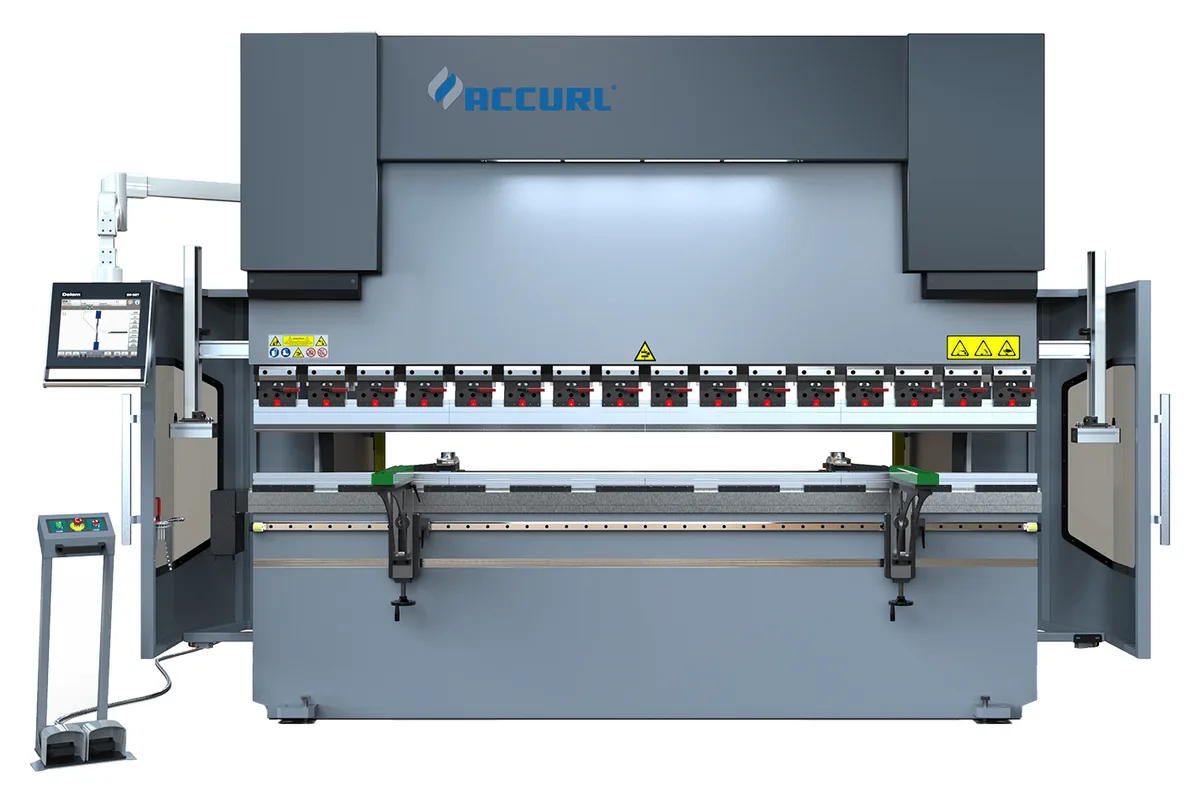

Accurl EURO-PRO B 32135
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 32135 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 32135 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO-PRO B 32135 is the strongest three-metre EURO-PRO that still runs at the top speeds of the series. It has 1,350 kN on 3,200 mm (126 in), a 200 mm/s approach and a 160 mm/s return.
The step above shows why that matters. The EURO-PRO B 32175 is fitted with the same 11 kW (14.8 hp) motor, yet its approach drops to 180 mm/s and its return to 140 mm/s. Accurl has spent the motor on speed here and on force there.
For a job shop the result is a useful all-rounder. There is enough force for everyday mild steel over a good part of the bed, and the cycle on thin parts is as short as on the lightest machine of this length. Bending speed is 10 mm/s.
Geometry is standard for the frame size. The gap is 400 mm (15.7 in), daylight 430 mm (16.9 in), stroke 200 mm (7.9 in). The table sits 940 mm (37 in) from the floor.
At 8,800 kg (19,400 lb) the machine is only a little heavier than the EURO-PRO B 32110, which is listed at 8,000 kg (17,637 lb), and its footprint is identical: 4,200 mm (165.4 in) by 1,800 mm (70.9 in).
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,350 kN |
| Bending Length | 3,200 mm (126 in) |
| Distance Between Side Frames | 2,700 mm (106.3 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 430 mm (16.9 in) |
| Stroke | 200 mm (7.9 in) |
| Table Height | 940 mm (37 in) |
| Table Width | 100 mm (3.9 in) |
| Approach Speed | 200 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 160 mm/s |
| Motor Power | 11 kW (14.8 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,200 mm (165.4 in) |
| Machine Width | 1,800 mm (70.9 in) |
| Machine Height | 2,660 mm (104.7 in) |
| Machine Weight | 8,800 kg (19,400 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,350 kN with a 200 mm/s approach and a 160 mm/s return
- 11 kW (14.8 hp) main motor of efficiency class IE3
- Footprint of 4,200 mm (165.4 in) by 1,800 mm (70.9 in)
- HOERBIGER hydraulic valve block, pump and valves are standard equipment
Limitations
- Daylight is 430 mm (16.9 in); the EURO-PRO B 32220 opens to 470 mm (18.5 in)
- Stroke of 200 mm (7.9 in) limits deep boxes
- Table width of 100 mm (3.9 in)
Best For
Frequently Asked Questions
01
1,350 kN over a bending length of 3,200 mm (126 in). The side frames are 2,700 mm (106.3 in) apart and the gap is 400 mm (15.7 in).
02
No. Approach, bending and return speeds are 200 mm/s, 10 mm/s and 160 mm/s, exactly as on the EURO-PRO B 32110. The motor is larger at 11 kW (14.8 hp).
03
Accurl lists a HOERBIGER hydraulic valve block, pump and valves, and a Siemens efficiency motor of class IE3. A stand-by function for the energy-saving drive is standard as well.
04
8,800 kg (19,400 lb). It is 4,200 mm (165.4 in) long, 1,800 mm (70.9 in) wide and 2,660 mm (104.7 in) high according to the specification table.
