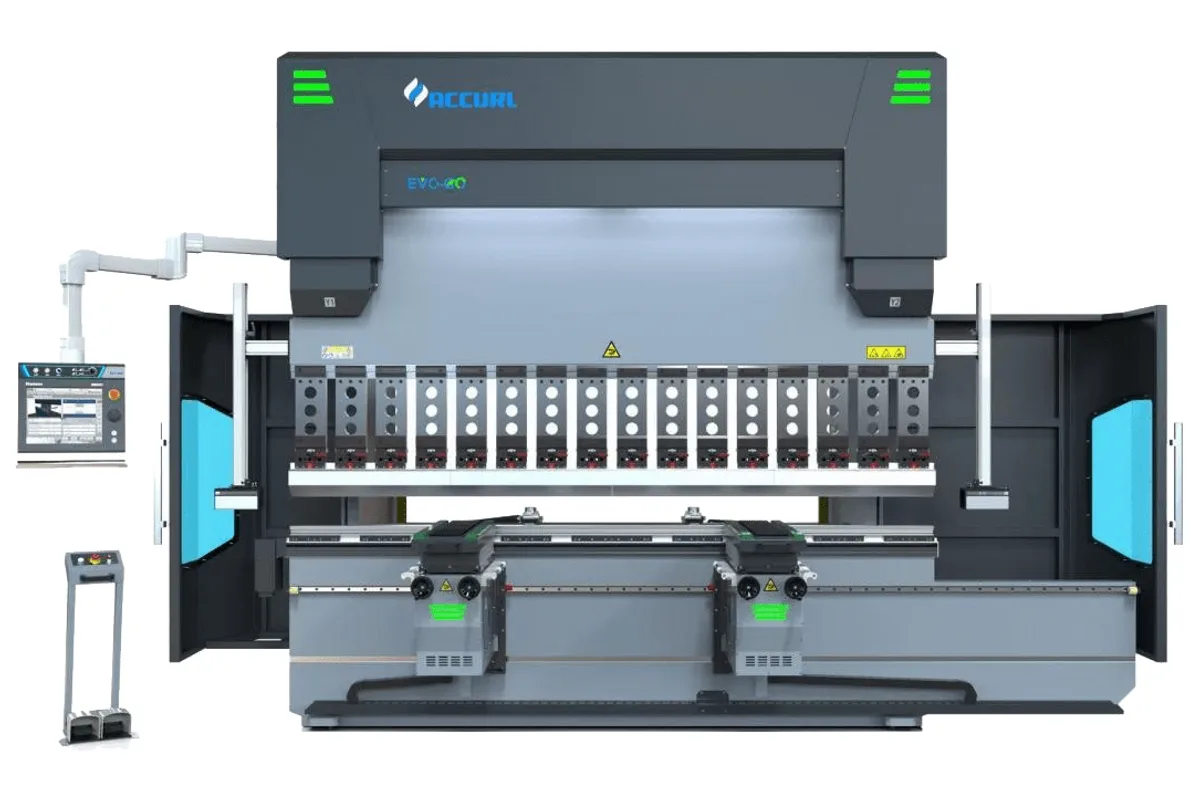

Accurl EURO GENIUS B32110H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B32110H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B32110H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Entry to the three-metre range of the series is the Accurl EURO GENIUS B32110H: 1,100 kN over a bending length of 3,200 mm (126 in). The extra length beyond a nominal three-metre sheet leaves room to stage a second tool station at one end.
It is driven by the same 7.5 kW (10.1 hp) motor as the shorter EURO GENIUS B25110H and matches its speeds exactly, with a 200 mm/s approach, 0-10 mm/s bending and a 180 mm/s return. For light-gauge work this is a quick machine. Weight is 8,900 kg (19,621 lb).
What kind of work suits 1,100 kN on this length? Long parts in thin sheet. Panels for cabinets and switchgear, light channel, door leaves and architectural trim all sit comfortably inside the capacity. Full-length bends in thicker plate do not, and Accurl offers the same bed with more force as the EURO GENIUS B32135H.
The tool space is generous for a light machine. Stroke is 300 mm (11.8 in), daylight 550 mm (21.7 in) and throat depth 450 mm (17.7 in).
Accurl prints the machine width as 1,550 mm (61 in), narrower than any other model in the table, including the shorter one. Length is 4,280 mm (168.5 in) and height 2,960 mm (116.5 in). Have the width confirmed on the layout drawing before planning around it.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,100 kN |
| Bending Length | 3,200 mm (126 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 550 mm (21.7 in) |
| Stroke | 300 mm (11.8 in) |
| Approach Speed | 200 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 180 mm/s |
| Motor Power | 7.5 kW (10.1 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 4,280 mm (168.5 in) |
| Machine Width | 1,550 mm (61 in) |
| Machine Height | 2,960 mm (116.5 in) |
| Machine Weight | 8,900 kg (19,621 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,200 mm (126 in) bending length at 8,900 kg (19,621 lb)
- 200 mm/s approach, the top figure of the series
- Stroke of 300 mm (11.8 in) with a 450 mm (17.7 in) throat depth
- Listed width of 1,550 mm (61 in), the smallest in the table
Limitations
- 1,100 kN over 3,200 mm (126 in) is a thin-sheet rating
- Backgauge stroke of 800 mm (31.5 in); the X axis of 1000 mm is optional equipment
- Two-axis BGA-2 backgauge as standard
Best For
Frequently Asked Questions
01
Only in size. The EURO GENIUS B25110H bends 2,500 mm (98.4 in) and weighs 8,000 kg (17,637 lb). This model bends 3,200 mm (126 in) and weighs 8,900 kg (19,621 lb). Capacity, motor, stroke, daylight and speeds are the same.
02
A 7.5 kW (10.1 hp) main motor. The catalogue lists a Siemens efficiency motor of class IE3 and a stand-by function for an energy-saving drive as standard equipment.
03
For short bends, yes; for full-length bends in plate, look higher in the range. The EURO GENIUS B32135H has 1,350 kN and the EURO GENIUS B32175H has 1,750 kN on the same 3,200 mm (126 in) bending length.
04
Accurl lists rear safety barriers of Category IV and, at the front, an AKAS LC-II F safety laser of Category IV or DSP safety. Front and rear lighting are also on the standard list.
