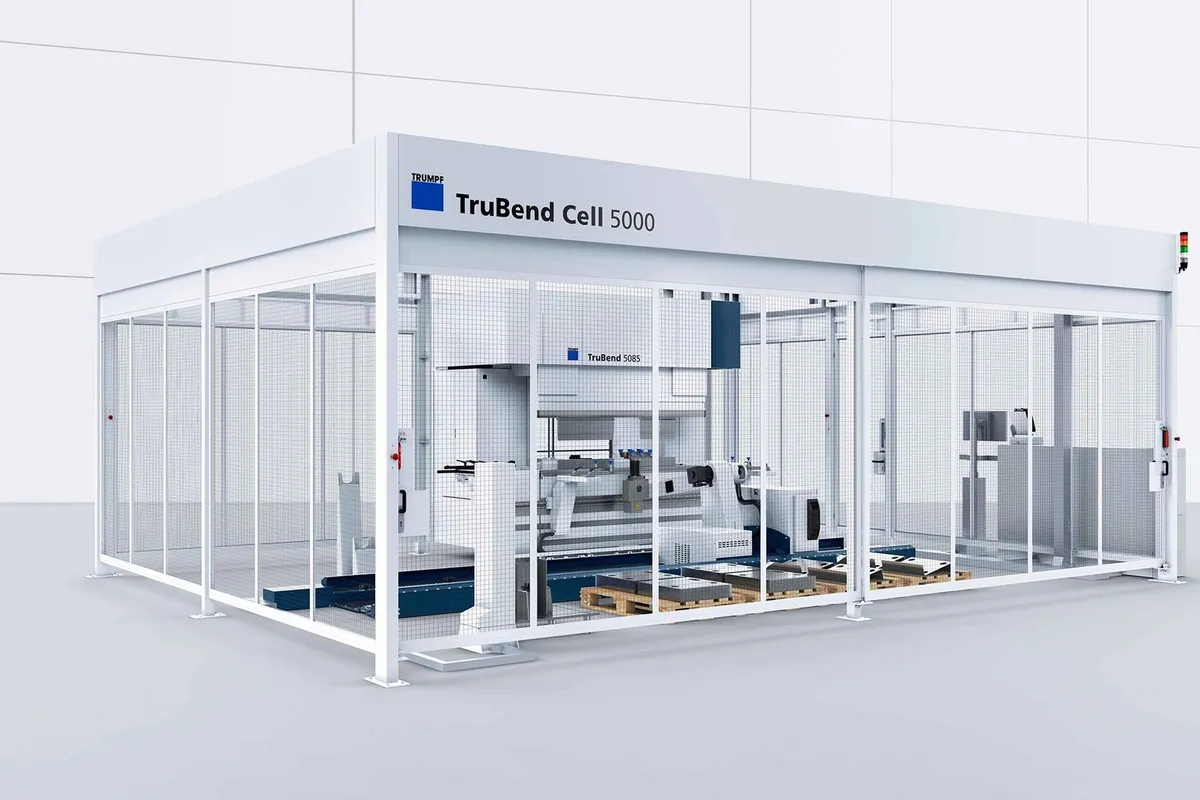

Trumpf TruBend Cell 5000 Lean
Image: trumpf.com, Trumpf
Key Specifications
bending length
width between columns
usable open height
throat depth
rapid speed
max bending speed
How much does the Trumpf TruBend Cell 5000 Lean cost?
Estimated price range
Our best estimate for a cnc press brake in this class — not a quote from Trumpf. Configuration moves it a long way.
Overview
The TruBend Cell 5000 Lean pairs a 2,210 mm (87.0 in) press brake with a BendMaster robot that carries 60 kg and travels on a 6 m (19.7 ft) track. The robot's reach defines the work: parts up to 2,000 x 1,000 mm (78.7 x 39.4 in) and 40 kg (88 lb), in sheet from 0.7 mm (0.028 in) upward.
Material flow is where a cell earns its keep, and the figures here are concrete. The blank stack can be 700 mm (27.6 in) high and finished parts can be stacked to 1000 mm. Divide the stack height by the sheet thickness of a job and you have the number of blanks the cell can work through before someone has to bring a new pallet. Trumpf lists gripper and vacuum gripping technology with an automatic gripper change, so a run that mixes small and medium parts does not stop for a manual changeover. Profiles are listed up to 2000 mm.
The press brake under the robot has 1,750 mm (68.9 in) between the columns, a 420 mm (16.5 in) throat and 615 mm (24.2 in) of usable open height, room a robot needs to swing a flanged part between bends. The beam comes down at 200 mm/s (7.9 in/s) in rapid and presses at up to 25 mm/s (1.0 in/s). The back gauge is a 6-axis CNC unit.
The machine alone measures 3,020 × 1,800 × 2,835 mm (119 × 70.9 × 112 in) and weighs 7,800 kg (17,196 lb). Add 595 kg for the BendMaster and 310 kg for each 2000 mm element of floor track, plus the area for the track and the stacks.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Length | 2,210 mm (87.0 in) |
| Width Between Columns | 1,750 mm (68.9 in) |
| Usable Open Height | 615 mm (24.2 in) |
| Throat Depth | 420 mm (16.5 in) |
| Rapid Speed | 200 mm/s (7.9 in/s) |
| Max Bending Speed | 25 mm/s (1.0 in/s) |
| Bendmaster Capacity | 60 kg carrying capacity |
| Max Part Size | 2,000 x 1,000 mm (78.7 x 39.4 in) |
| Max Part Weight | 40 kg (88 lb) |
| Robot Track Length | 6 m (19.7 ft) |
| Min Sheet Thickness | 0.7 mm (0.028 in) |
| Max Sheet Stack Height | 700 mm (27.6 in) |
| Back Gauge | 6-axis CNC |
| Base Machine Weight | 7,800 kg (17,196 lb) |
| Bendmaster Weight | 595 kg |
| Rapid Downward Movement | 200 mm/s |
| Maximum Y Press Operation | 25 mm/s |
| Maximum Part Size | 2000 mm x 1000 mm |
| Profiles | up to 2000 mm |
| Maximum Part Weight | 40 kg |
| Maximum Carrying Capacity | 60 kg |
| Minimum Sheet Thickness | 0.7 mm |
| Path Length | 6 m |
| Max Sheet Stack | 700 mm |
| Maximum Stack Height for Finished Parts | 1000 mm |
| Trubend Machine | 3020 mm x 1800 mm x 2835 mm |
| Floor Track of Each 2000 Mm Element | 310 kg |
| Diversify Production | Use the gripper and vacuum gripping technology to bend small and medium parts as well as parts weighing up to 40 kg. |
| A Firm Grip | The automatic gripper change saves time. |
| Rapid Downward Speed | 200 mm/s |
| Machine Weight | 7,800 kg (17,196 lb) |
| Floor Space Required | 3,020 × 1,800 × 2,835 mm (119 × 70.9 × 112 in) |
Specifications sourced from trumpf.com — verified 2026-10-03
Strengths & Limitations
Strengths
- BendMaster with 60 kg carrying capacity handles parts up to 2,000 x 1,000 mm (78.7 x 39.4 in) and 40 kg (88 lb)
- Gripper and vacuum gripping technology with an automatic gripper change
- Blank stack up to 700 mm (27.6 in) and finished-part stack up to 1000 mm for long runs between pallet changes
- 615 mm (24.2 in) of usable open height gives the robot room to turn flanged parts
- 200 mm/s (7.9 in/s) rapid speed and a 6-axis CNC back gauge on the press brake
Limitations
- Bending length is 2,210 mm (87.0 in); the TruBend 5130 offers 3,230 mm (127 in) for longer parts
- Part weight is capped at 40 kg (88 lb), below the robot's 60 kg carrying capacity
- Sheet thinner than 0.7 mm (0.028 in) is outside the listed range
- The robot track is 6 m (19.7 ft) long, which fixes how many stacking positions fit beside the machine
Best For
Frequently Asked Questions
01
The BendMaster has a 60 kg carrying capacity. Trumpf lists a maximum part size of 2,000 x 1,000 mm (78.7 x 39.4 in), a maximum part weight of 40 kg (88 lb), profiles up to 2000 mm and a minimum sheet thickness of 0.7 mm (0.028 in). It works with gripper and vacuum gripping technology.
02
That depends on the sheet thickness and the part. The raw sheet stack can be up to 700 mm (27.6 in) high and the finished parts can be stacked up to 1000 mm. Bent parts usually take more height than flat blanks, so the finished stack is often the limit to check.
03
A machine with a 2,210 mm (87.0 in) bending length, 1,750 mm (68.9 in) between the columns, 615 mm (24.2 in) of usable open height and a 420 mm (16.5 in) throat. Rapid speed is 200 mm/s (7.9 in/s), maximum bending speed is 25 mm/s (1.0 in/s), and the back gauge is a 6-axis CNC unit.
04
The base machine weighs 7,800 kg (17,196 lb) and the BendMaster 595 kg. Each 2000 mm element of floor track weighs 310 kg. The machine itself measures 3,020 × 1,800 × 2,835 mm (119 × 70.9 × 112 in); the 6 m (19.7 ft) track and the stacking area are additional.
