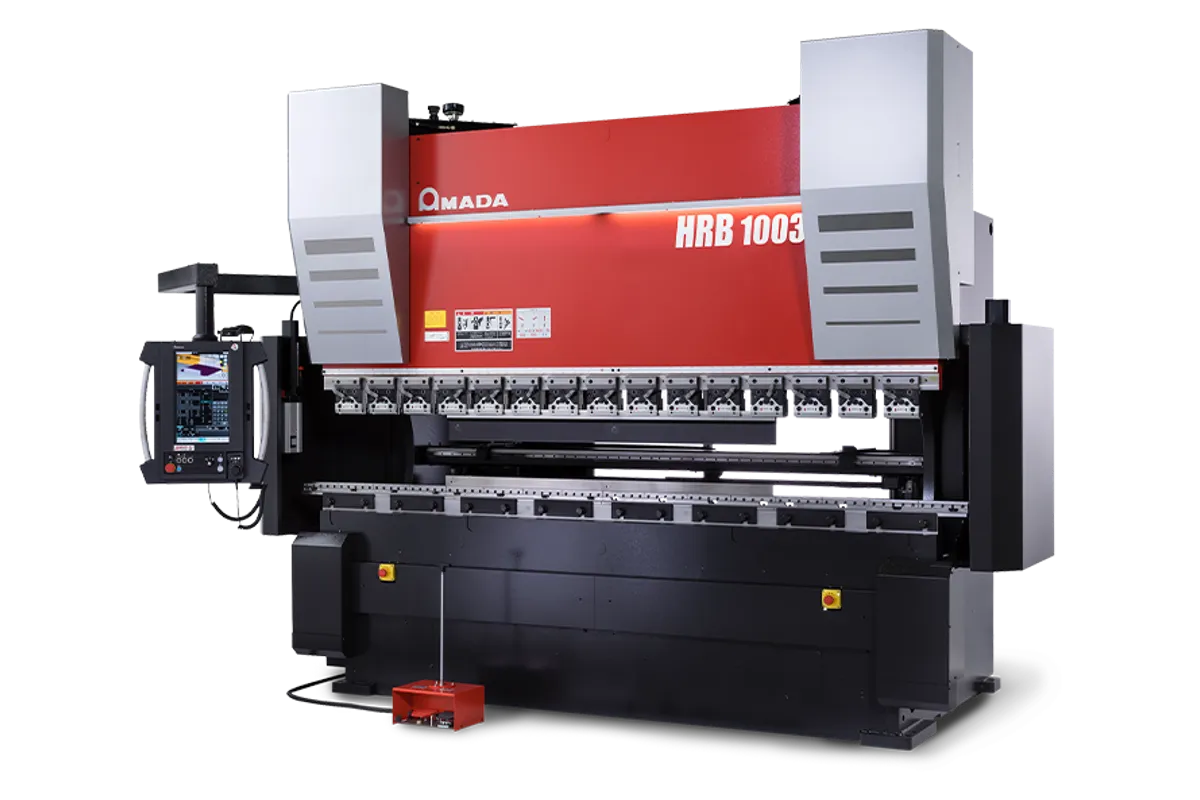

Amada HRB 1003

$150,000 - $200,000 Updated 2026-03-19

Key Specifications

Press Capacity

1,000 kN / 100 metric tons (112 US tons)

Bending Length

3,100 mm (122 in)

Stroke

200 mm (7.9 in)

Open Height

420 mm (16.5 in)

Throat Depth

350 mm (13.8 in)

Approach Speed

200 mm/s (7.9 in/s)

Overview

The Amada HRB 1003 is the mid-range model in Amada's HRB hybrid servo-hydraulic press brake series, delivering 100 metric tons of pressing force across a 3,100 mm bending length. This combination of tonnage and bed length covers the standard 10-foot sheet format that dominates North American fabrication, making the HRB 1003 the most versatile general-purpose machine in the HRB lineup.

The hybrid servo-hydraulic drive system uses servo motors to control hydraulic pressure on demand, generating flow only during the bending stroke. This reduces energy consumption by up to 30% compared to conventional hydraulic press brakes, while also generating less heat and extending oil change intervals. The servo-controlled ram achieves ±0.01 mm repeatability for consistent bend angles across production shifts.

The AMNC 3i CNC control with a 15.6-inch touchscreen provides bend simulation, automatic bend sequence calculation, collision checking, and integration with Amada's VPSS 3i offline programming software. The 6-axis backgauge system handles complex multi-bend parts with precise, repeatable positioning. CNC automatic crowning compensates for table deflection across the 3-meter bending length.

The HRB 1003 is manufactured at Amada's North Carolina facility and occupies a value-oriented position between the compact HRB 8025 and the heavy-duty HRB 2204. For general fabrication shops that need a dependable 100-ton, 3-meter press brake without the premium cost of the HG series ATC or all-electric technology, the HRB 1003 provides proven Amada hybrid efficiency at a competitive price point.

Full Specifications

Parameter	Value
Press Capacity	1,000 kN / 100 metric tons (112 US tons)
Bending Length	3,100 mm (122 in)
Stroke	200 mm (7.9 in)
Open Height	420 mm (16.5 in)
Throat Depth	350 mm (13.8 in)
Approach Speed	200 mm/s (7.9 in/s)
Pressing Speed	10-20 mm/s (0.4-0.8 in/s)
Return Speed	200 mm/s (7.9 in/s)
Ram Repeatability	±0.01 mm (±0.0004 in)
Drive System	Hybrid servo-hydraulic
Control	Amada AMNC 3i (15.6-inch touchscreen)
Backgauge Axes	6-axis
Crowning	CNC automatic crowning
Energy Savings	Up to 30% vs conventional hydraulic
Machine Weight	Approximately 8,500 kg (18,739 lb)

Specifications sourced from amada.com — verified 2026-03-28

Strengths & Limitations

Strengths

100-ton capacity across 3,100 mm covers the standard 10-foot sheet format for the majority of general fabrication work
Hybrid servo-hydraulic drive cuts energy consumption up to 30% while maintaining full hydraulic bending authority
AMNC 3i control with automatic bend sequencing and collision checking reduces programming time significantly
6-axis backgauge with CNC automatic crowning ensures consistent angles across the full 3-meter bending length
Made in USA at Amada's North Carolina facility with established domestic service network
Value-oriented pricing positions the HRB 1003 well below the HG-1003 while sharing the same drive architecture

Limitations

±0.01 mm ram repeatability is a step down from the ±0.001 mm offered by the HG-1003 and EGB 1303e
No Automatic Tool Changer option — shops needing ATC must upgrade to the HG series
Amada proprietary tooling system restricts third-party punch and die availability
AMNC 3i control is one generation behind the AMNC 4ie on newer machines

Best For

General fabrication shops standardizing on a dependable 100-ton, 3-meter press brake at competitive Amada pricing Job shops and contract fabricators handling mixed work across mild steel, stainless, and aluminum up to mid-gauge Shops upgrading from older hydraulic or NC press brakes to modern CNC with servo-hydraulic energy efficiency Mid-volume production environments where energy savings from hybrid drive compound over 1-2 shift operation Fabricators who want Amada quality without the premium of HG-1003 ATC or all-electric EGB pricing

Frequently Asked Questions

01 HRB 1003 vs HG-1003 — what justifies the price difference?

The HG-1003 offers ±0.001 mm ram repeatability (10x better), optional ATC automatic tool changer, 8-axis backgauge, 19-inch display, and robotic cell integration. The HRB 1003 provides the same hybrid servo-hydraulic drive at a significantly lower price point. For high-precision, high-mix work with frequent tool changes, the HG is worth the premium. For general fabrication, the HRB delivers excellent value.

02 What material can the HRB 1003 bend at full length?

With 100 metric tons across 3,100 mm, the HRB 1003 air-bends mild steel up to approximately 6 mm at full bed length. Stainless capacity is approximately 5 mm. On shorter bends, proportionally thicker material can be handled within the tonnage limit.

03 Is the HRB 1003 made in the USA?

Yes. The HRB series is manufactured at Amada's facility in North Carolina. This provides advantages in lead time, shipping cost, and access to domestic service and support compared to machines imported from Japan or Europe.

04 How does the 6-axis backgauge improve over 4-axis?

A 6-axis backgauge adds independent Z-axis positioning for each gauge finger and sometimes additional axes for finger height or tilt. This enables gauging parts with flanges at different heights, complex shapes that require offset positioning, or multi-stage bending where the part geometry changes between bends.
