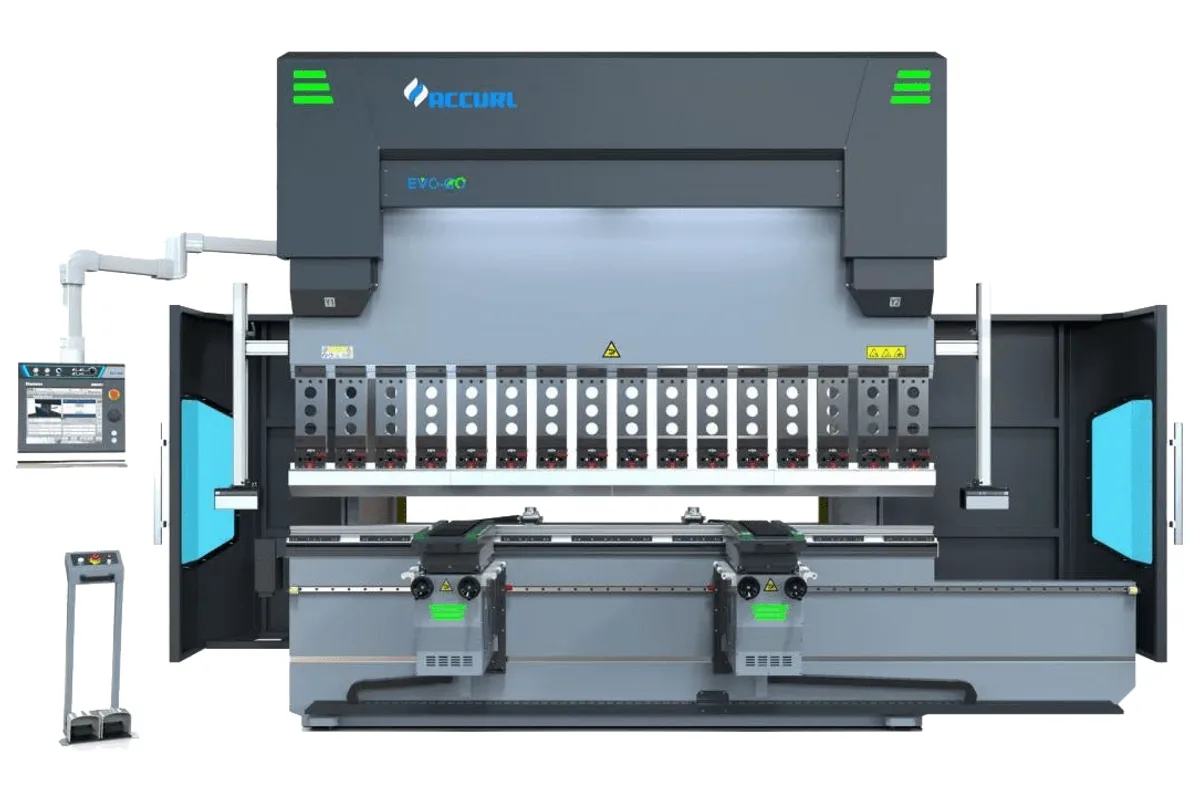

Accurl EURO GENIUS B32135H
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
throat depth
daylight opening
stroke
approach speed
How much does the Accurl EURO GENIUS B32135H cost?
Price estimate
We do not have a price for the Accurl EURO GENIUS B32135H that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO GENIUS B32135H adds a quarter more force to the lightest three-metre model without slowing it. Capacity is 1,350 kN on 3,200 mm (126 in), and the ram still approaches at 200 mm/s and returns at 180 mm/s.
That is the reason to look at this size. In most press brake ranges more tonnage means less speed, and further up this series it does too: the EURO GENIUS B32175H approaches at 190 mm/s and returns at 160 mm/s. Here Accurl has fitted a larger motor, 11 kW (14.8 hp), and kept the fast figures.
A general sheet metal shop gets a lot of use from this combination. The force covers mild steel in common thicknesses over most of the bed, and the speed pays on thin parts. Bending itself runs at 0-10 mm/s.
Open height and stroke are those of the lower half of the range: 550 mm (21.7 in) of daylight, 300 mm (11.8 in) of stroke, 450 mm (17.7 in) of throat depth. The backgauge stroke is 800 mm (31.5 in).
Accurl lists the weight as 9,500 kg (20,944 lb). The printed length, 3,880 mm (152.8 in), is shorter than the 4,280 mm (168.5 in) given for the EURO GENIUS B32110H on the same bed, so treat the outline dimensions in this row as approximate, as the table heading indicates.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,350 kN |
| Bending Length | 3,200 mm (126 in) |
| Throat Depth | 450 mm (17.7 in) |
| Daylight Opening | 550 mm (21.7 in) |
| Stroke | 300 mm (11.8 in) |
| Approach Speed | 200 mm/s |
| Bending Speed | 0-10 mm/s |
| Return Speed | 180 mm/s |
| Motor Power | 11 kW (14.8 hp) |
| Backgauge Stroke | 800 mm (31.5 in) |
| Machine Length | 3,880 mm (152.8 in) |
| Machine Width | 1,860 mm (73.2 in) |
| Machine Height | 2,960 mm (116.5 in) |
| Machine Weight | 9,500 kg (20,944 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,350 kN with a 200 mm/s approach and 180 mm/s return
- 11 kW (14.8 hp) motor of efficiency class IE3
- Tool space of 550 mm (21.7 in) daylight and 300 mm (11.8 in) stroke
- Y1, Y2 precision ram positioning and CNC motorized wave crowning are standard items
Limitations
- Printed machine length of 3,880 mm (152.8 in) looks inconsistent with its neighbours and needs confirming
- Daylight is 550 mm (21.7 in); 600 mm (23.6 in) starts with the EURO GENIUS B32250H
- Backgauge stroke is limited to 800 mm (31.5 in)
Best For
Frequently Asked Questions
01
1,350 kN over a bending length of 3,200 mm (126 in). The same capacity is available on a four-metre bed as the EURO GENIUS B40135H, which bends 4,000 mm (157.5 in).
02
No. The table shows a 200 mm/s approach, 0-10 mm/s bending speed and 180 mm/s return, identical to the EURO GENIUS B32110H. The motor is larger, 11 kW (14.8 hp).
03
9,500 kg (20,944 lb) according to the catalogue, with a width of 1,860 mm (73.2 in) and a height of 2,960 mm (116.5 in). The weight and outline figures carry a plus/minus mark in the table.
04
The standard equipment list gives a HOERBIGER hydraulic valve block, pump and valves, driven by a Siemens efficiency motor of class IE3, with a stand-by function for the energy-saving drive.
More from Accurl
Other CNC Press Brakes
TRUMPF TruBend 7036

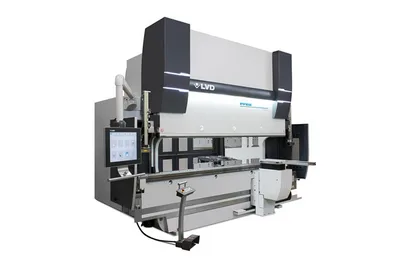

LVD PPEB 80/25
