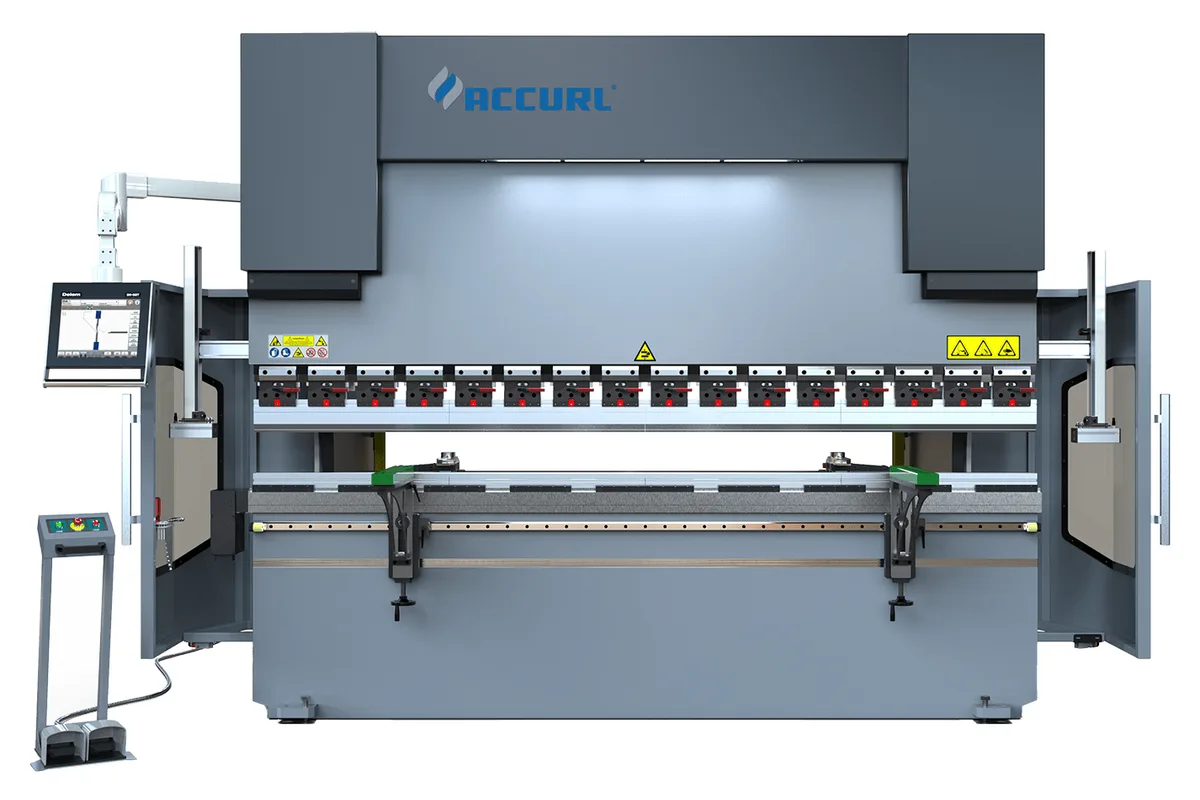

Accurl EURO-PRO B 32175
Image: accurl.com, Accurl
Key Specifications
bending force
bending length
distance between side frames
gap
daylight opening
stroke
How much does the Accurl EURO-PRO B 32175 cost?
Price estimate
We do not have a price for the Accurl EURO-PRO B 32175 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Accurl EURO-PRO B 32175 is where plate work begins in the EURO-PRO B table. Capacity rises to 1,750 kN on the 3,200 mm (126 in) bed, and for the first time the ram gives up some pace: 180 mm/s on approach and 140 mm/s on return.
Accurl has not enlarged the motor to get there. It remains 11 kW (14.8 hp), the rating also used on the EURO-PRO B 32135. More force from the same power is the reason for the lower speeds. The bending speed itself is unchanged at 10 mm/s.
Nor has the frame opening grown. Daylight is 430 mm (16.9 in), the stroke 200 mm (7.9 in), the gap 400 mm (15.7 in), and the table is 100 mm (3.9 in) wide. A buyer who bends thick material with wide V dies should check that the die and its holder sit properly on a table of that width. The EURO-PRO B 32220 has a 140 mm (5.5 in) table.
The machine is listed at 10,000 kg (22,046 lb), 4,200 mm (165.4 in) long and 1,900 mm (74.8 in) wide. Its height is 2,700 mm (106.3 in).
To support angle accuracy in heavier material Accurl offers a height adjustable laser angle measurement system as optional equipment. CNC motorized wave crowning is standard.
Full Specifications
| Parameter | Value |
|---|---|
| Bending Force | 1,750 kN |
| Bending Length | 3,200 mm (126 in) |
| Distance Between Side Frames | 2,700 mm (106.3 in) |
| Gap | 400 mm (15.7 in) |
| Daylight Opening | 430 mm (16.9 in) |
| Stroke | 200 mm (7.9 in) |
| Table Height | 940 mm (37 in) |
| Table Width | 100 mm (3.9 in) |
| Approach Speed | 180 mm/s |
| Bending Speed | 10 mm/s |
| Return Speed | 140 mm/s |
| Motor Power | 11 kW (14.8 hp) |
| Backgauge Stroke | 750 mm (29.5 in) |
| Machine Length | 4,200 mm (165.4 in) |
| Machine Width | 1,900 mm (74.8 in) |
| Machine Height | 2,700 mm (106.3 in) |
| Machine Weight | 10,000 kg (22,046 lb) |
Specifications sourced from accurl.com — verified 2026-10-05
Strengths & Limitations
Strengths
- 1,750 kN on a 3,200 mm (126 in) bed in a 10,000 kg (22,046 lb) machine
- Modest 11 kW (14.8 hp) motor for the force
- Height of 2,700 mm (106.3 in)
- CNC motorized wave crowning as standard, laser angle measurement as an option
Limitations
- Approach falls to 180 mm/s and return to 140 mm/s
- Table is 100 mm (3.9 in) wide, narrow for large V dies
- Daylight of 430 mm (16.9 in) and stroke of 200 mm (7.9 in) do not increase with the force
Best For
Frequently Asked Questions
01
The table shows 180 mm/s approach and 140 mm/s return, while the motor stays at 11 kW (14.8 hp). The EURO-PRO B 32135 with the same motor and 1,350 kN is listed at 200 mm/s and 160 mm/s.
02
A daylight opening of 430 mm (16.9 in) and a stroke of 200 mm (7.9 in), above a table that is 940 mm (37 in) high and 100 mm (3.9 in) wide.
03
As an option. Accurl lists a height adjustable laser angle measurement system among the optional equipment of the series. The standard machine relies on its CNC motorized wave crowning and the DELEM DA-66T control.
04
Yes. The EURO-PRO B 40175 offers 1,750 kN over 4,000 mm (157.5 in) with the same speeds and motor, and weighs 12,000 kg (26,455 lb).
