Haas Automation Vertical Machining Centers (VMC)

Haas VF-3YT/50

List US$130,995 Specs verified 2026-10-02 · haascnc.com Updated 2026-10-02

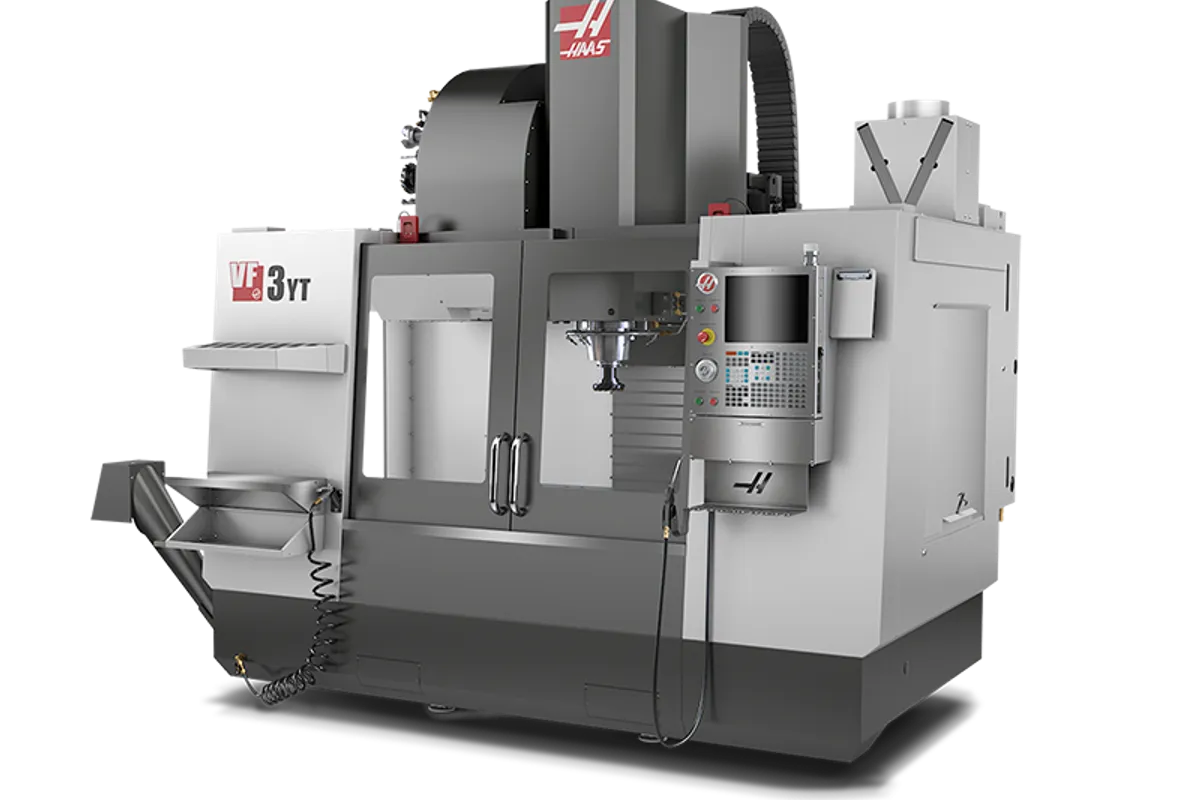

Image: haascnc.com, Haas Automation

Key Specifications

X Travel

40 in (1,016 mm)

Y Travel

26 in (660 mm)

Z Travel

25 in (635 mm)

Max Spindle

7,500 rpm

Spindle Taper

CT or BT 50

Tool Capacity

30+1

How much does the Haas VF-3YT/50 cost?

Manufacturer list price

US$130,995

As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.

Overview

The Haas VF-3YT/50 is a 50-taper vertical machining center on a 40 × 26 × 25 in (1,016 × 660 × 635 mm) envelope. Its spindle is geared, not direct-drive: a two-speed gearbox delivers 340 ft-lbf (460 N·m) at 700 rpm from 30 hp (22.4 kW), with a top speed of 7,500 rpm.

The smaller-taper machines around it peak far lower. The VF-3 makes 90 ft-lbf (122 N·m) at 2,000 rpm, and the VF-3SSYT, which shares this machine's travels and 54 × 24 in (1,372 × 610 mm) table, carries the same torque rating with a 12,000 rpm top speed. Against the VF-3, the 50-taper machine has about 3.8 times the torque and reaches it at roughly a third of the speed, which is what large face mills, big drills and long boring bars in steel and cast iron need. Power is 30 hp on all three, so the gain is in low-speed cutting force, not in metal removal at high rpm.

The rest of the machine is sized to match. Z thrust is 5,600 lbf (24,910 N), with 3,400 lbf (15,124 N) on X and 4,100 lbf (18,238 N) on Y. The table is rated for 4,000 lb (1,814 kg). The 30+1 side-mount changer handles tools up to 30 lb (13.6 kg) and 16 in (406 mm) long; diameter is 4 in (102 mm) with all pockets full and 7 in (178 mm) with the adjacent pockets empty.

The heavier spindle takes its toll in time and reach. Chip-to-chip time is 6.3 s. Rapids are 710 ipm (18 m/min). The spindle nose stops 7.9 in (201 mm) above the table at the bottom of Z travel and reaches 32.9 in (836 mm) at the top, so a short tool on a low part will not reach without a riser or a taller fixture. Haas publishes a starting price of US$130,995, and the shipping weight is 16,500 lb (7,485 kg).

Full Specifications

Parameter	Value
X-Axis Travel	40 in (1,016 mm)
Y-Axis Travel	26 in (660 mm)
Z-Axis Travel	25 in (635 mm)
Spindle Nose to Table (max)	32.9 in (836 mm)
Spindle Nose to Table (min)	7.9 in (201 mm)
Spindle Motor Power	30 hp (22.4 kW)
Max Spindle Speed	7,500 rpm
Spindle Torque	340 ft-lbf @ 700 rpm (460 N·m @ 700 rpm)
Spindle Drive	2-Speed Gearbox
Spindle Taper	CT or BT 50
Spindle Bearing Lubrication	Air / Oil Injection
Spindle Cooling	Liquid Cooled
Table Size	54 × 24 in (1,372 × 610 mm)
T-Slot Width	0.626 in to 0.63 in (15.9 mm to 16 mm)
T-Slot Center Distance	3.15 in (80 mm)
T-Slots	7
Max Table Load	4,000 lb (1,814 kg)
Max Cutting Feedrate	500 ipm (12.7 m/min)
Rapid Traverse Rate	710 ipm (18 m/min)
Max Thrust X	3,400 lbf (15,124 N)
Max Thrust Y	4,100 lbf (18,238 N)
Max Thrust Z	5,600 lbf (24,910 N)
Tool Changer Type	SMTC
Tool Capacity	30+1
Max Tool Diameter (full magazine)	4 in (102 mm)
Max Tool Diameter (adjacent pockets empty)	7 in (178 mm)
Max Tool Length	16 in (406 mm)
Max Tool Weight	30 lb (13.6 kg)
Tool Change (tool-to-tool)	4.2 s
Tool Change (chip-to-chip)	6.3 s
Coolant Capacity	55 gal (208 L)
Air Required	4 scfm @ 100 psi (113 L/min @ 6.9 bar)
Inline Air Hose	3/8 in
Air Coupler	3/8 in
Air Pressure Min	80 psi (5.5 bar)
Electrical Service (low voltage)	220 VAC 3-phase, 70 A
Electrical Service (high voltage)	440 VAC 3-phase, 35 A
Shipping Domestic Pallet	156 × 102 × 121 in (397 × 260 × 307 cm)
Shipping Export Crate	156 × 102 × 127 in (397 × 260 × 323 cm)
Machine Weight	16,500 lb (7,485 kg)

Specifications sourced from haascnc.com — verified 2026-10-02

Strengths & Limitations

Strengths

340 ft-lbf (460 N·m) at 700 rpm through a two-speed gearbox, against 90 ft-lbf (122 N·m) at 2,000 rpm on the VF-3 and VF-3SSYT
CT or BT 50 taper with tools up to 30 lb (13.6 kg), 16 in (406 mm) long and 7 in (178 mm) in diameter beside empty pockets
Z-axis thrust of 5,600 lbf (24,910 N) for large drills and heavy plunge cuts
Table load of 4,000 lb (1,814 kg) on a 54 × 24 in (1,372 × 610 mm) table
26 in (660 mm) of Y travel under a 50-taper spindle

Limitations

Top speed of 7,500 rpm; small-tool work is better served by the 8,100 rpm VF-3 or the 12,000 rpm VF-3SSYT
Chip-to-chip time of 6.3 s is slow for parts with many light operations
Minimum spindle-nose-to-table distance is 7.9 in (201 mm), so short tools cannot reach a part clamped low on the table
Spindle power is 30 hp (22.4 kW), the same as the 40-taper VF-3SSYT on the same travels; the gearbox adds torque, not horsepower
Rapids of 710 ipm (18 m/min) and a 500 ipm (12.7 m/min) feed limit

Best For

Heavy face milling and roughing in steel and cast iron at low rpm Large drills, taps and boring bars that need 340 ft-lbf (460 N·m) Shops already holding CT 50 or BT 50 tooling Workpieces and fixtures up to 4,000 lb (1,814 kg) and 26 in (660 mm) deep

Frequently Asked Questions

01 Why choose the VF-3YT/50 over the VF-3SSYT?

For torque, tool size and table load. The VF-3YT/50 delivers 340 ft-lbf (460 N·m) at 700 rpm, carries tools up to 30 lb (13.6 kg) and has a table rated 4,000 lb (1,814 kg). The VF-3SSYT has the same travels and table size but delivers 90 ft-lbf (122 N·m) at 2,000 rpm, runs to 12,000 rpm with 1,400 ipm (35.6 m/min) rapids, and is rated 1,750 lb (794 kg) on the table. Choose the VF-3SSYT for light, fast work with small cutters; choose the 50-taper machine when the job is limited by low-speed cutting force or by weight.

02 What is the spindle clearance on the VF-3YT/50?

The spindle nose is 7.9 in (201 mm) above the table at the lowest Z position and 32.9 in (836 mm) at the highest, a range equal to the 25 in (635 mm) Z travel. Plan tool lengths and fixture heights around the 7.9 in minimum: a stub-length tool will not reach a thin plate bolted straight to the table.

03 What tools can the VF-3YT/50 changer hold?

30+1 tools in a side-mount changer. Each can weigh up to 30 lb (13.6 kg) and measure up to 16 in (406 mm) long. The diameter limit is 4 in (102 mm) when every pocket is occupied and 7 in (178 mm) when the neighbouring pockets are left empty. Tool-to-tool time is 4.2 s and chip-to-chip is 6.3 s.

04 How much table load and thrust does the VF-3YT/50 have?

The 54 × 24 in (1,372 × 610 mm) table carries up to 4,000 lb (1,814 kg) and has seven T-slots on 3.15 in (80 mm) centres. Maximum thrust is 3,400 lbf (15,124 N) on X, 4,100 lbf (18,238 N) on Y and 5,600 lbf (24,910 N) on Z.

05 What should I check before installing a VF-3YT/50?

Rigging first: the shipping weight is 16,500 lb (7,485 kg) and the domestic pallet measures 156 × 102 × 121 in (397 × 260 × 307 cm). The electrical supply is 220 VAC three-phase at 70 A or 440 VAC three-phase at 35 A. Air consumption is 4 scfm at 100 psi (113 L/min at 6.9 bar) and the supply must hold at least 80 psi (5.5 bar).
